Outback Base, 4D Wagon, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Electrical Specification
>>
Without VDC System
Without VDC System

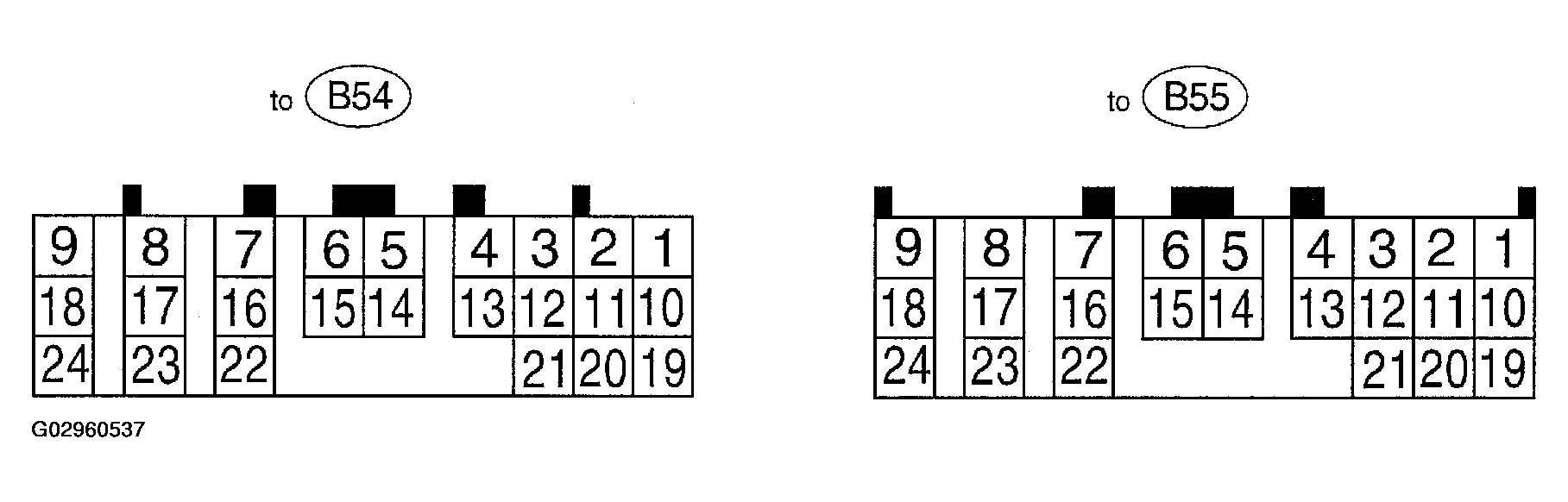

Fig 1: Identifying Transmission Control Module Connector Terminal - Without VDC System (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

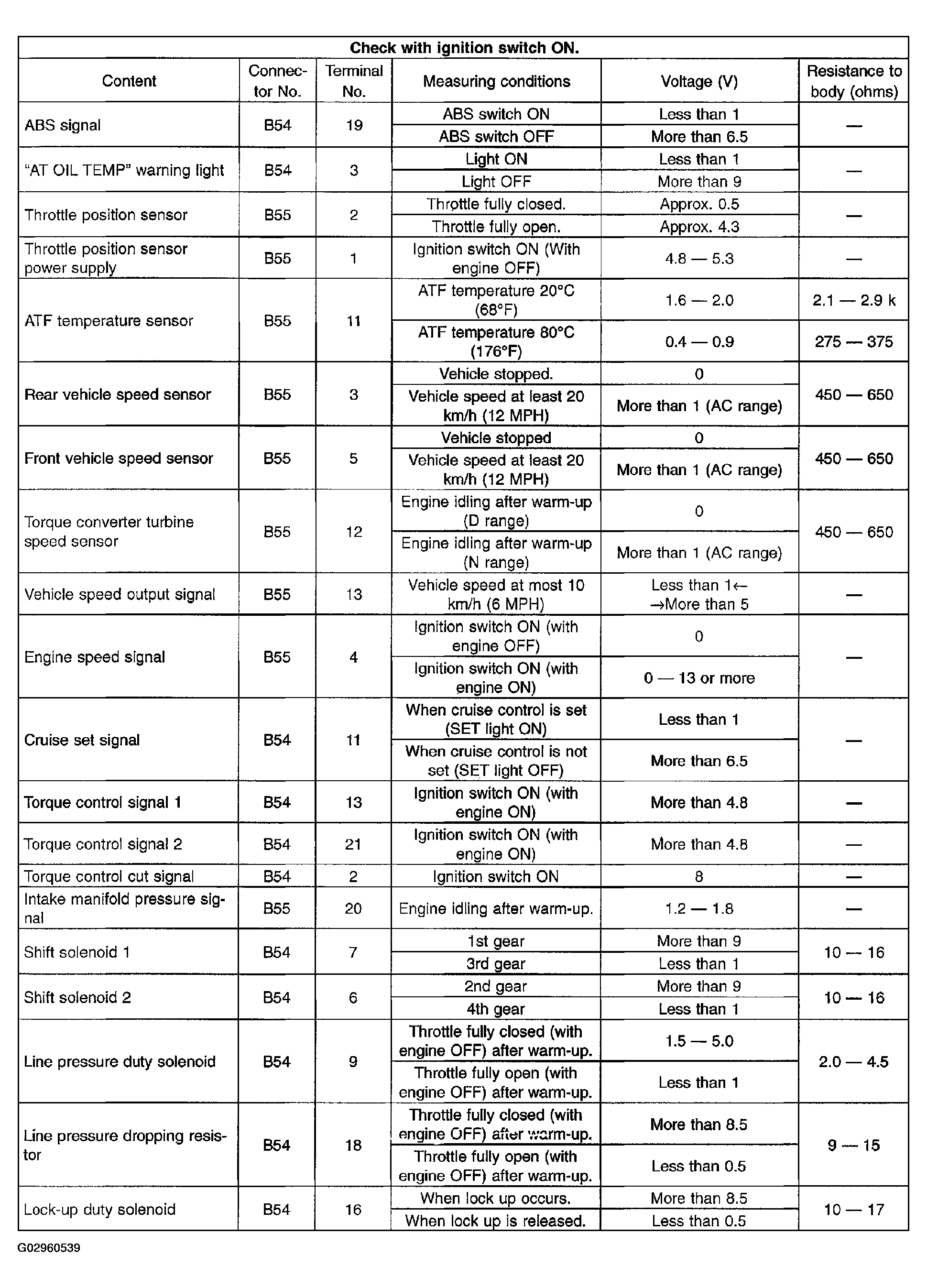

Fig 2: Identifying Transmission Control Module Connector Terminal - Without VDC System (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

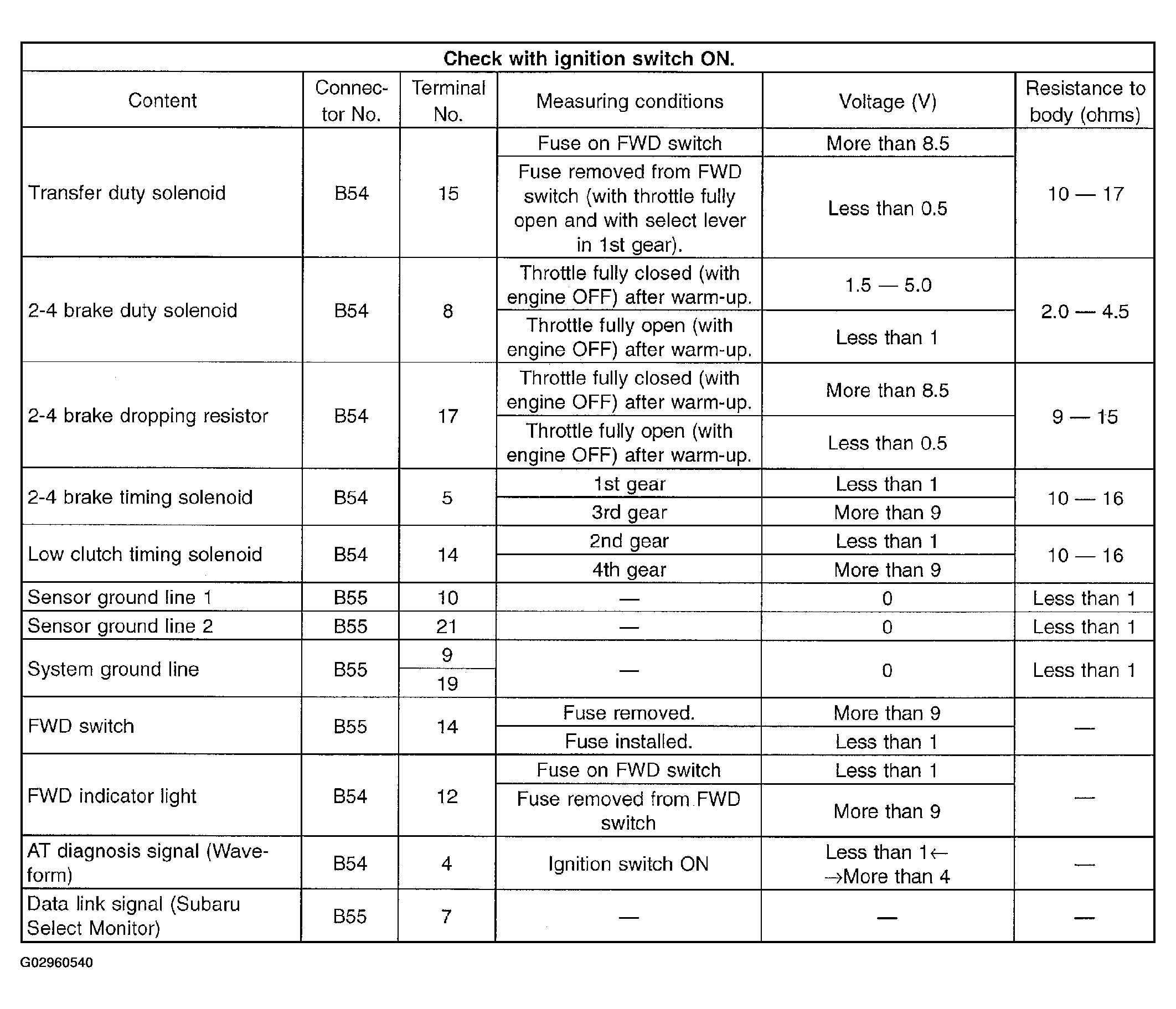

Fig 3: Identifying Transmission Control Module Connector Terminal - Without VDC System (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

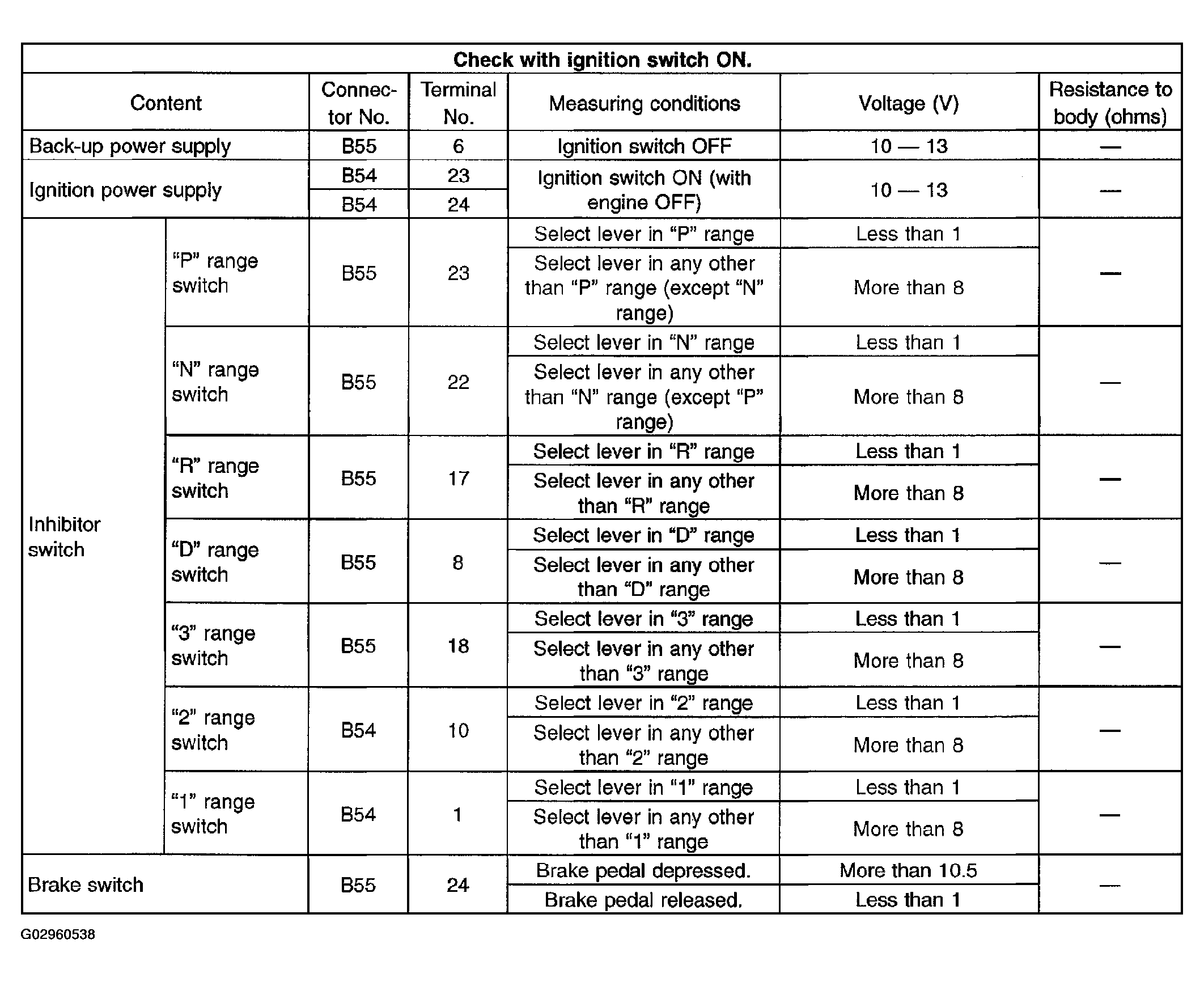

Fig 4: Identifying Transmission Control Module Connector Terminal - Without VDC System (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
