Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Electrical Specification
>>
With VDC System
With VDC System

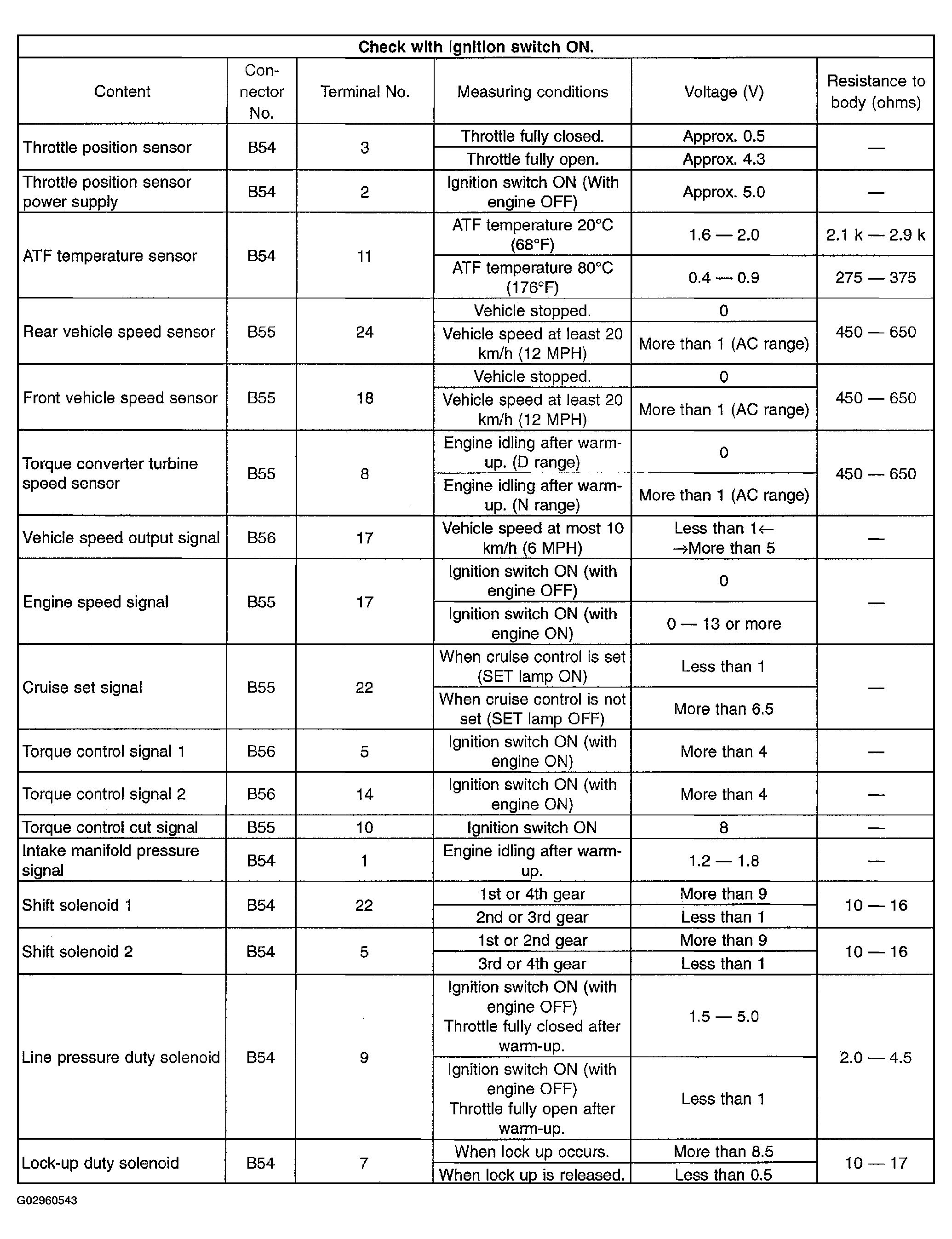

Fig 1: Identifying Transmission Control Module Connector Terminal - With VDC System (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

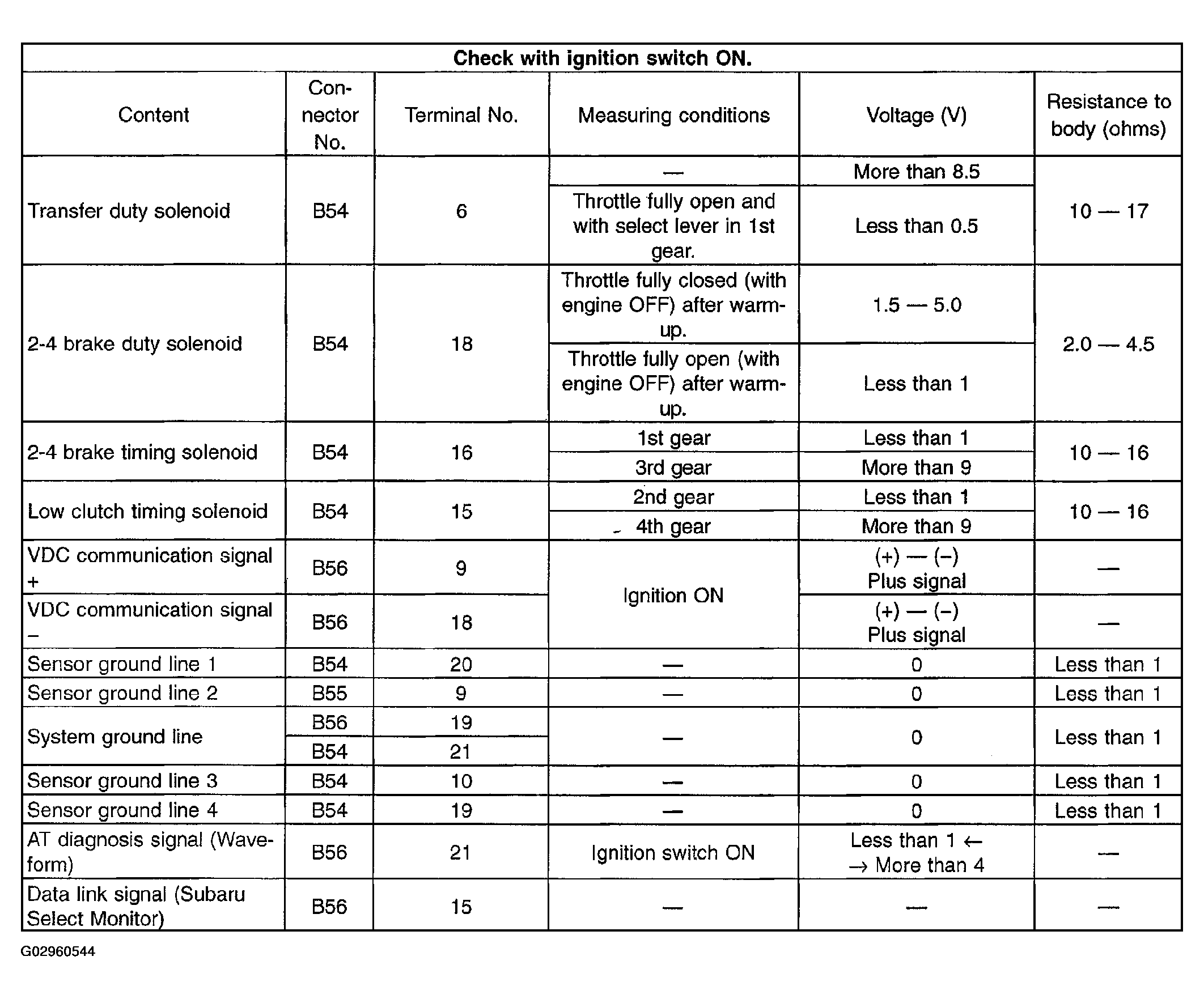

Fig 2: Identifying Transmission Control Module Connector Terminal - With VDC System (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

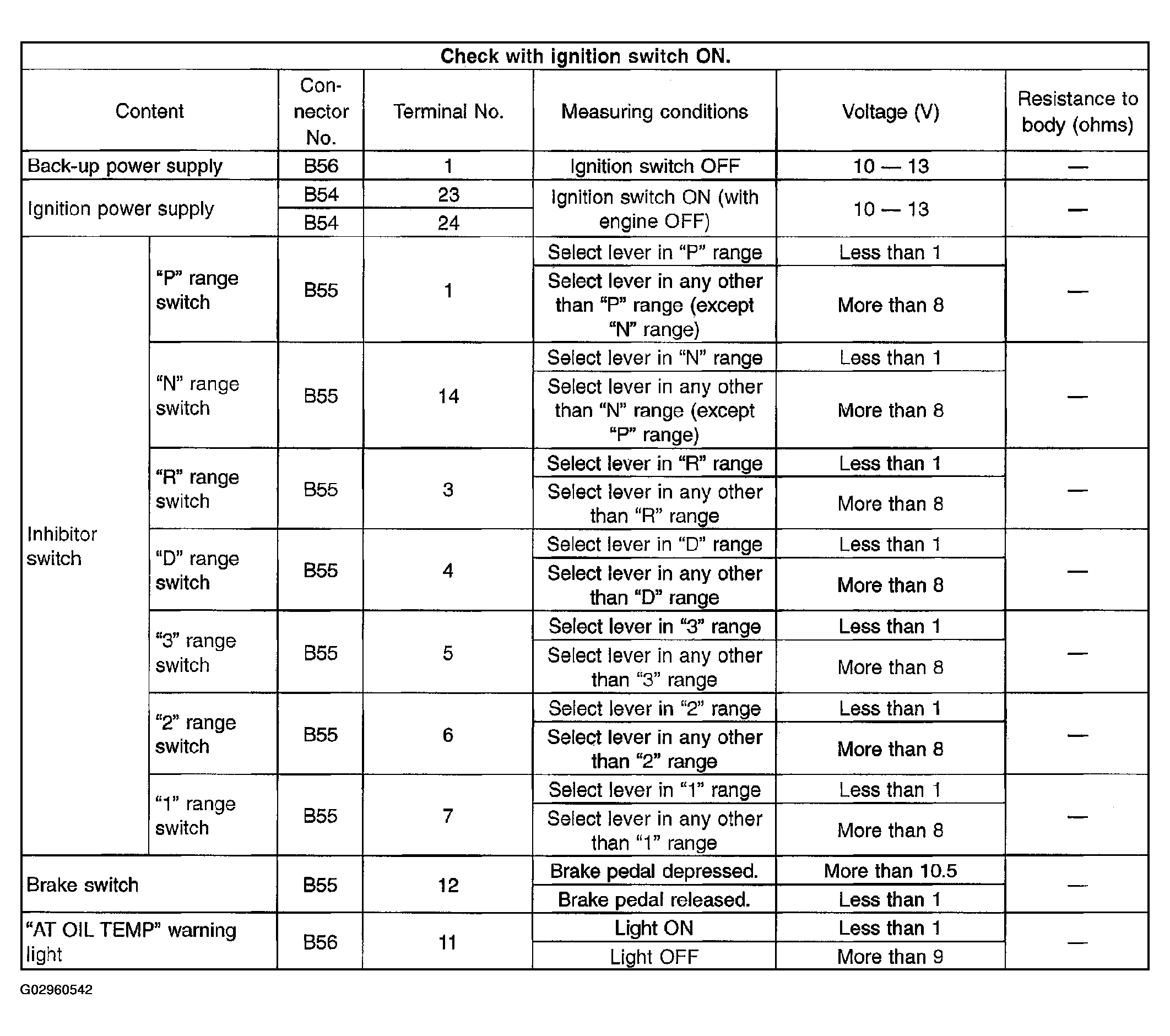

Fig 3: Identifying Transmission Control Module Connector Terminal - With VDC System (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Transmission Control Module Connector Terminal - With VDC System (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
