Communication For Initializing Impossible: Wiring Diagram

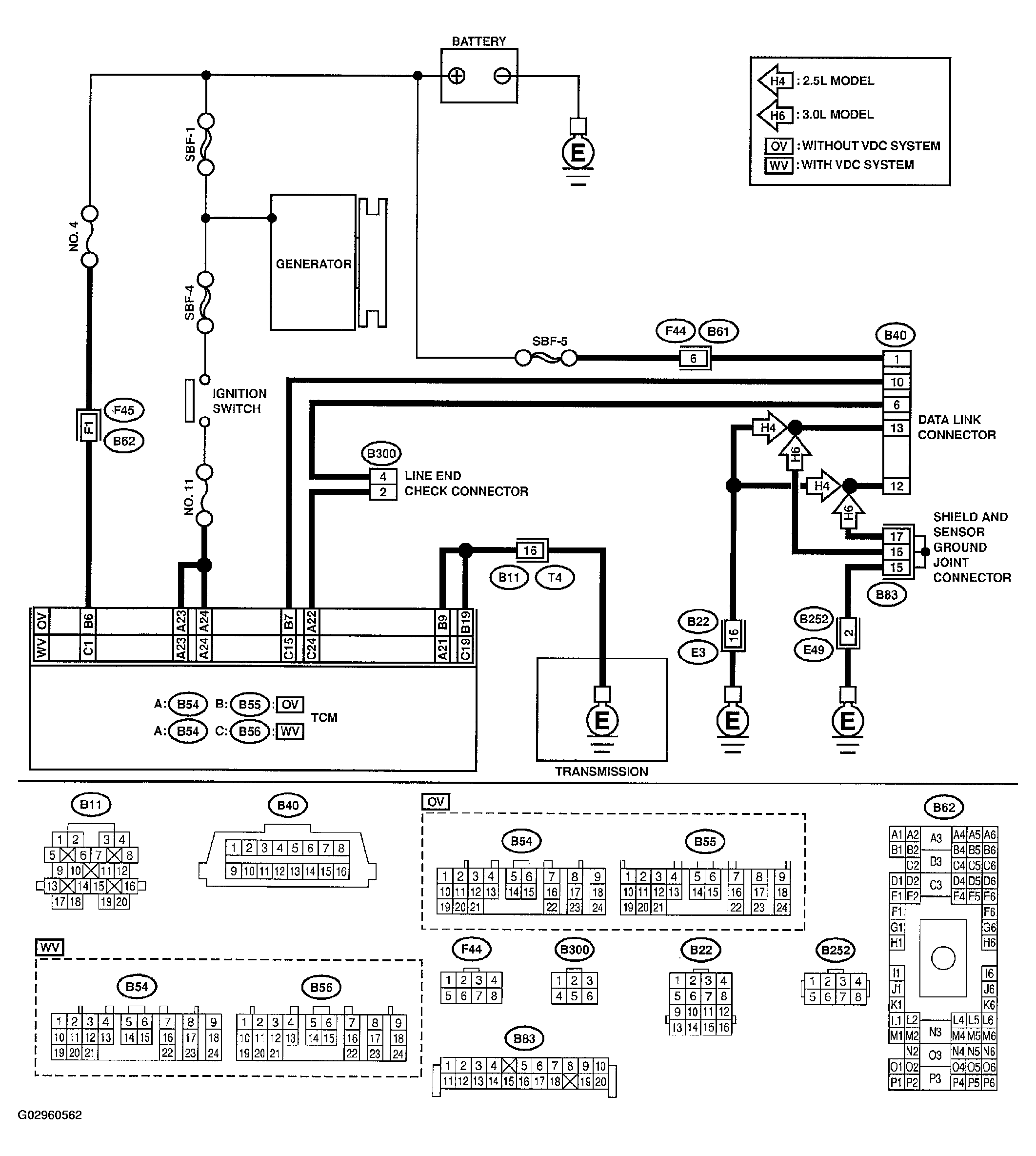

Fig 1: Communication For Initializing Impossible Wiring Diagram

G02960562

Courtesy of SUBARU OF AMERICA, INC.
