Manual Transmission Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

Install rear cushion rubber to transmission assembly.
1. Tightening torque: 35 N.m (3.6 kgf-m, 26 ft-lb)
Install transmission onto engine.
1. Gradually raise transmission with transmission jack.
2. Engage them at splines.
NOTE: Be careful not to strike main shaft against clutch cover.
Install transmission rear crossmember.
Tightening torque:
1. T1: 75 N.m (7.6 kgf-m, 55 ft-lb)
2. T2: 140 N.m (14.3 kgf-m, 103 ft-lb)

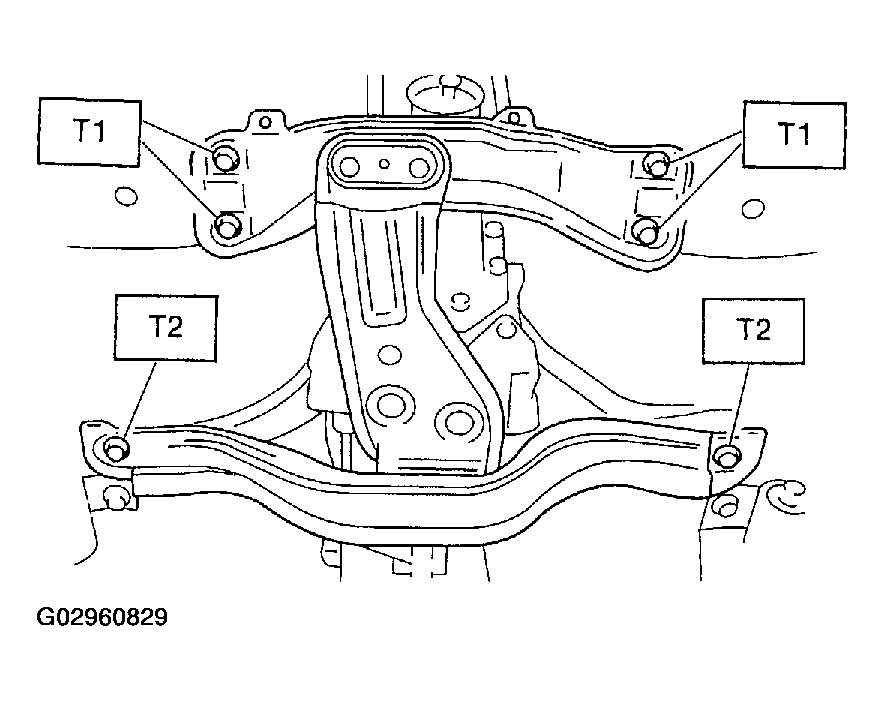

  Fig 1: Installing Transmission Rear Crossmember
  Courtesy of SUBARU OF AMERICA, INC.
Take off transmission jack.
Tighten nuts which hold lower side of transmission to engine.
1. Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

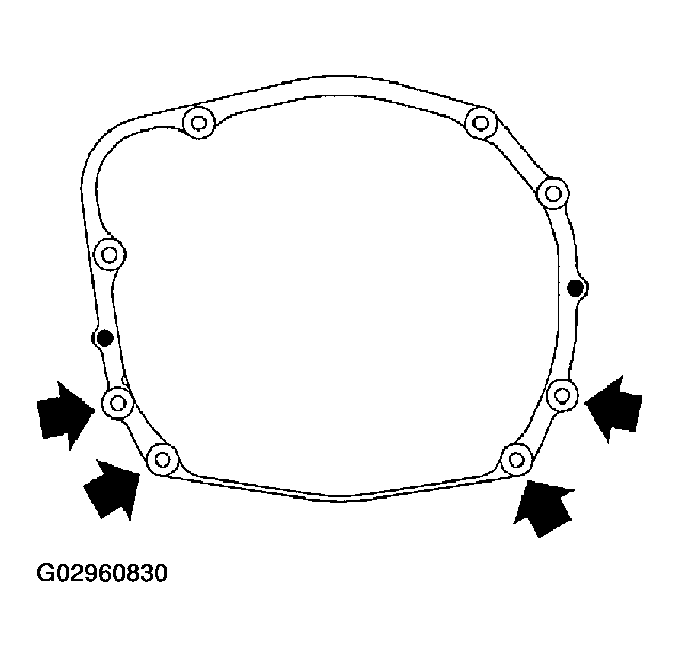

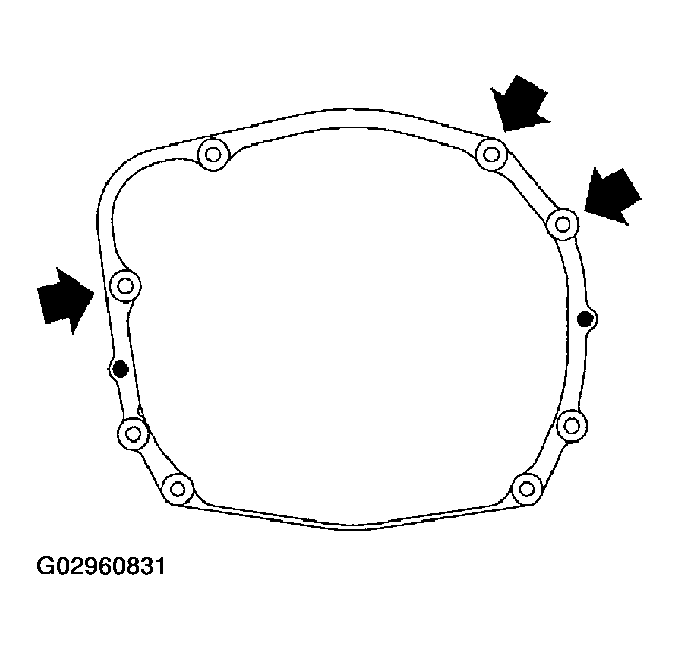

  Fig 2: Tightening Nuts Holding Lower Side Of Transmission To Engine
  Courtesy of SUBARU OF AMERICA, INC.
Connect engine and transmission.
1. Install starter.
  < Ref. to INSTALLATION , Starter.>
2. Tighten bolt which holds right upper side of transmission to engine.
1. Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

  Fig 3: Tightening Bolt Holding Right Upper Side Of Transmission To Engine
  Courtesy of SUBARU OF AMERICA, INC.
Remove ST.

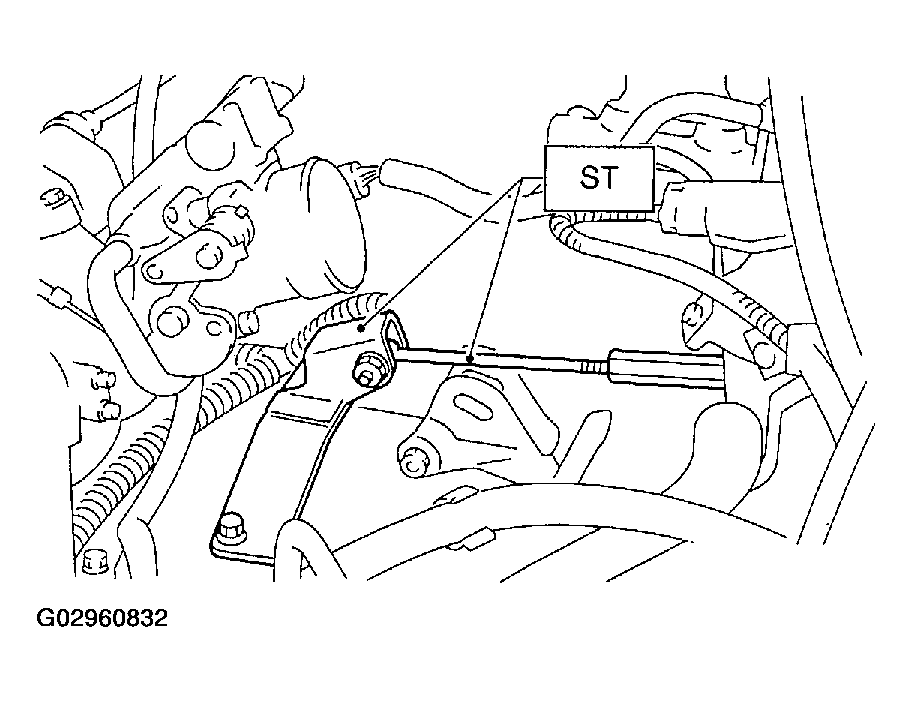

Fig 4: Removing ST
Courtesy of SUBARU OF AMERICA, INC.
Install pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

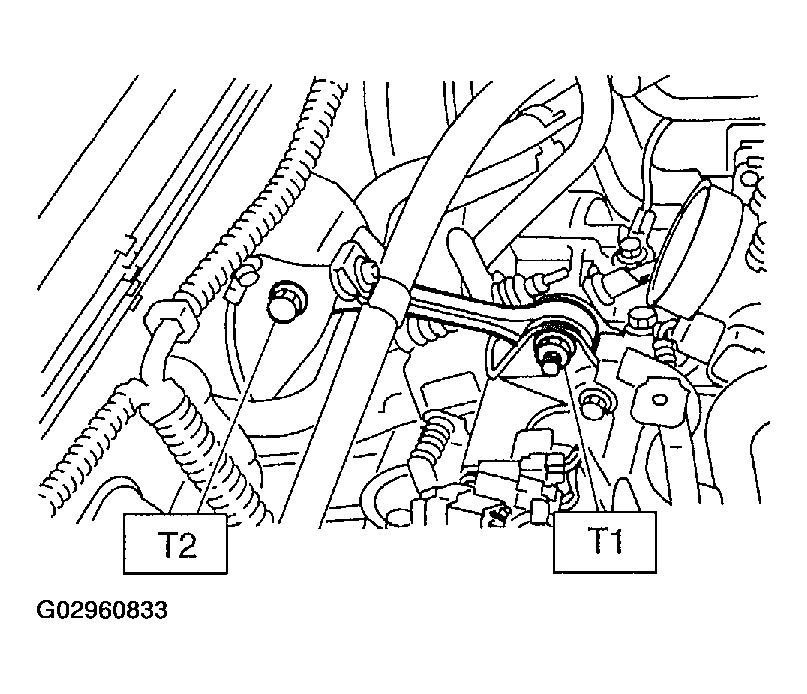

  Fig 5: Installing Pitching Stopper
  Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install front drive shaft into transmission.
Drive new spring pin into chamfered hole of drive shaft.

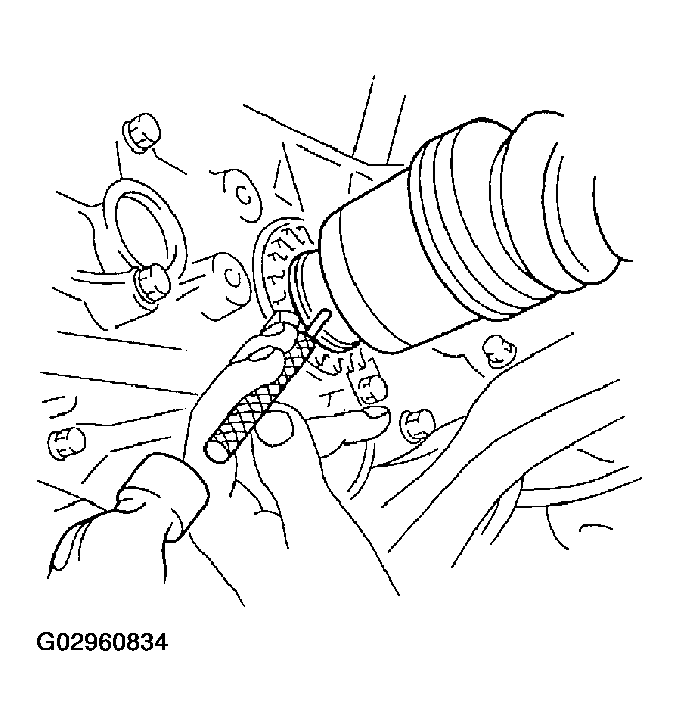

Fig 6: Driving New Spring Pin Into Chamfered Hole Of Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install ball joints of lower arm into knuckle arm of housing, and tighten installing bolts.
1. Tightening torque: 49 N.m (5.0 kgf-m, 36 ft-lb)

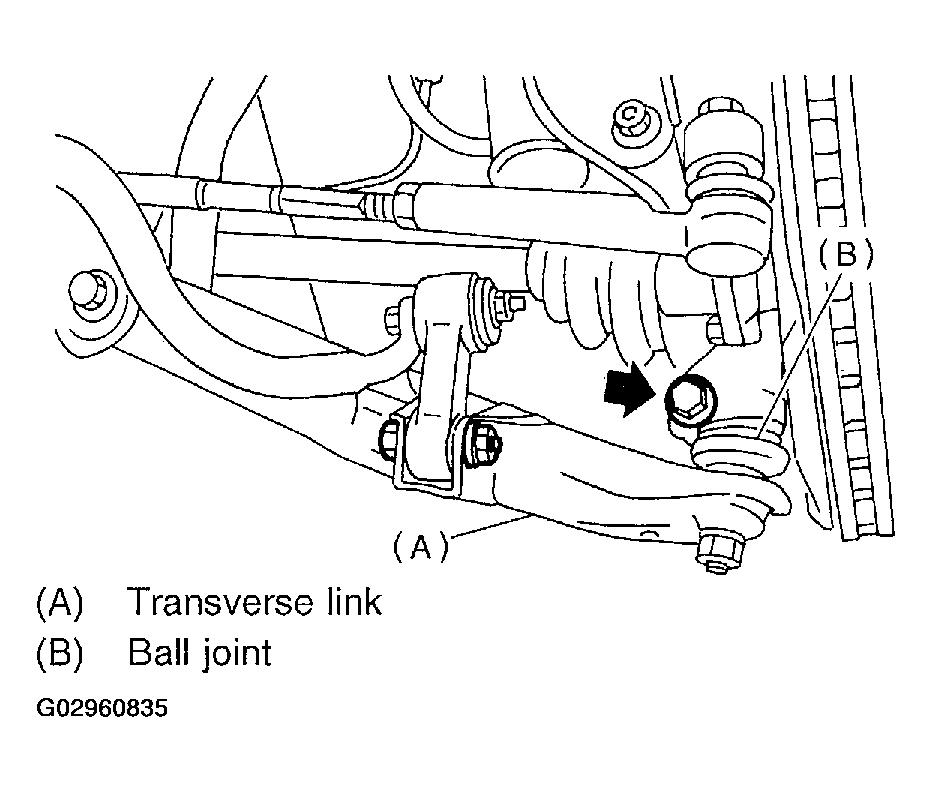

  Fig 7: Installing Ball Joints Of Lower Arm Into Knuckle Arm Of Housing
  Courtesy of SUBARU OF AMERICA, INC.
Install stabilizer link from transverse link.
1. Tightening torque: 30 N.m (3.1 kgf-m, 22.1 ft-lb)

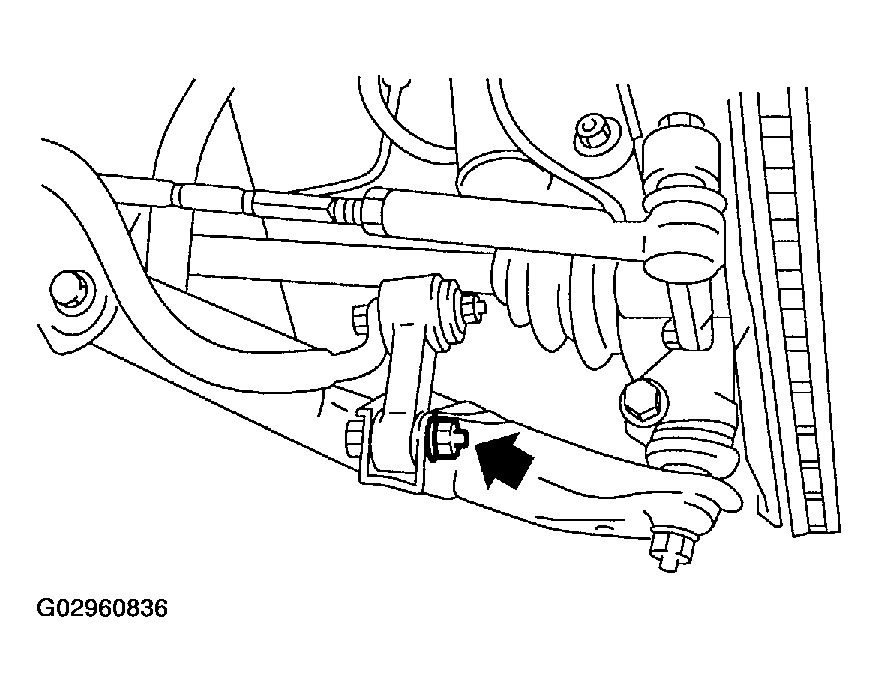

  Fig 8: Installing Stabilizer Link From Transverse Link
  Courtesy of SUBARU OF AMERICA, INC.
Connect rod to the joint.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

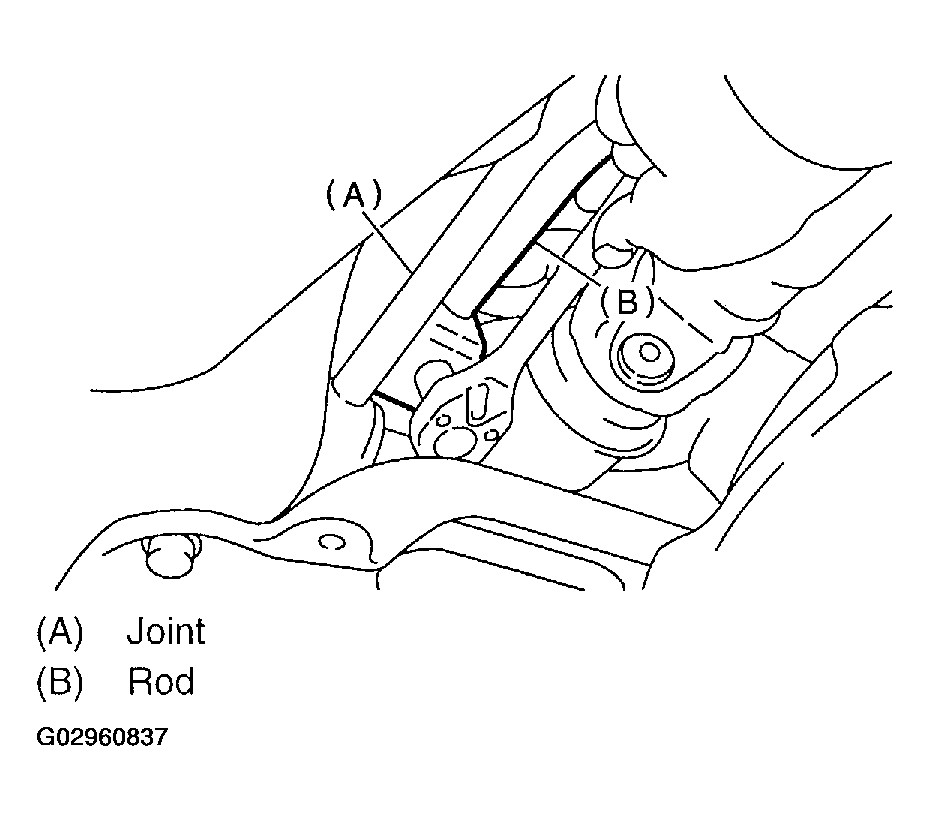

  Fig 9: Connecting Rod To Joint
  Courtesy of SUBARU OF AMERICA, INC.
Connect stay to transmission bracket.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

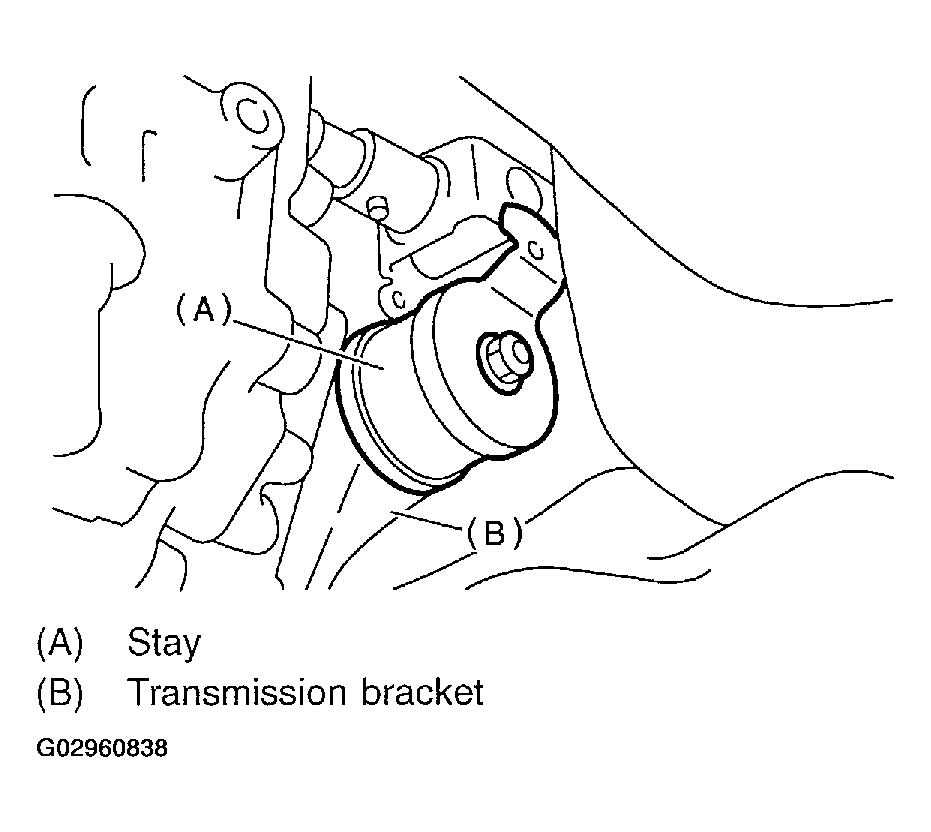

  Fig 10: Connecting Stay To Transmission Bracket
  Courtesy of SUBARU OF AMERICA, INC.
Install propeller shaft.
Install heat shield cover.

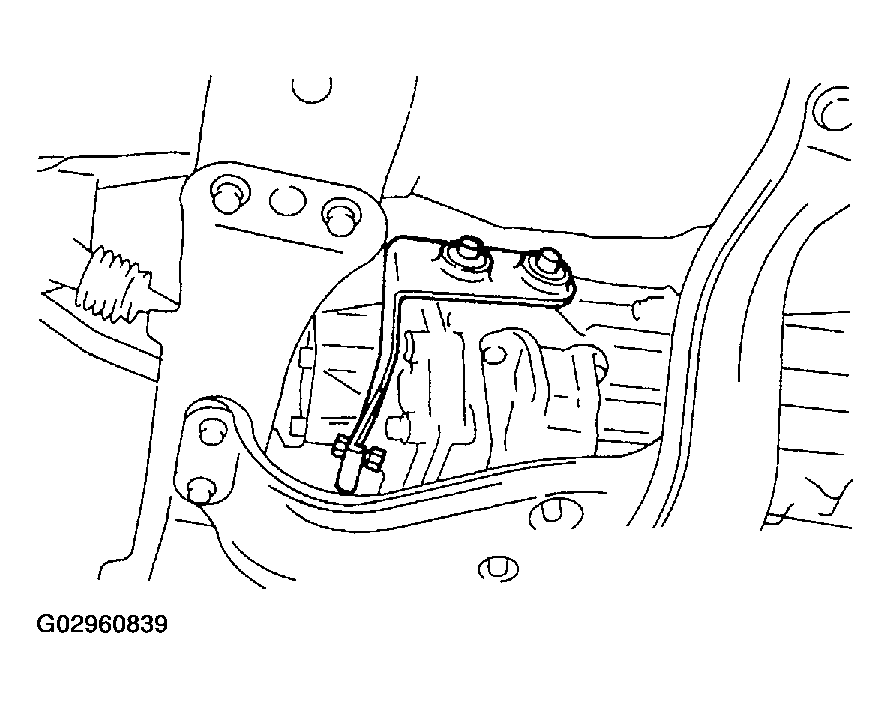

Install hanger bracket on right side of transmission.

Fig 11: Installing Hanger Bracket On Right Side Of Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe and muffler.
< Ref. to INSTALLATION , Muffler> and < Ref. to INSTALLATION , Rear Exhaust Pipe.>
Install front exhaust pipe and center exhaust pipe.
< Ref. to INSTALLATION , Front Exhaust Pipe.>
Install under cover.
Install operating cylinder.
1. Tightening torque: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

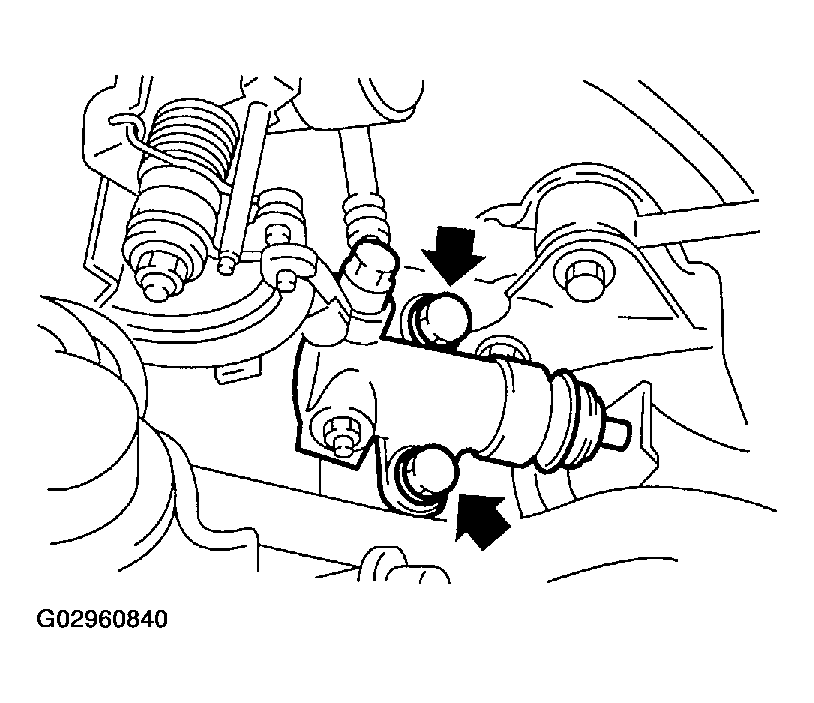

  Fig 12: Installing Operating Cylinder
  Courtesy of SUBARU OF AMERICA, INC.
Connect the following connectors.
1. Transmission ground terminal
  1. Tightening torque: 13 N.m (1.3 kgf-m, 9.4 ft-lb)
2. Vehicle speed sensor connector
3. Neutral position switch connector
4. Back-up light switch connector
Install air cleaner case stay.
1. Tightening torque: 16 N.m (1.6 kgf-m, 11.6 ft-lb)
Install air cleaner case and intake duct. < Ref. to INSTALLATION , Air Cleaner Case> and < Ref. to INSTALLATION , Air Intake Duct.>
Connect battery ground cable.
Pour gear oil and check the oil level. < Ref. to TRANSMISSION GEAR OIL . >
Take off vehicle from lift arms.
