LH Side

Release fuel pressure. Refer to OPERATION , Fuel.
Open fuel flap lid, and remove fuel filler cap.

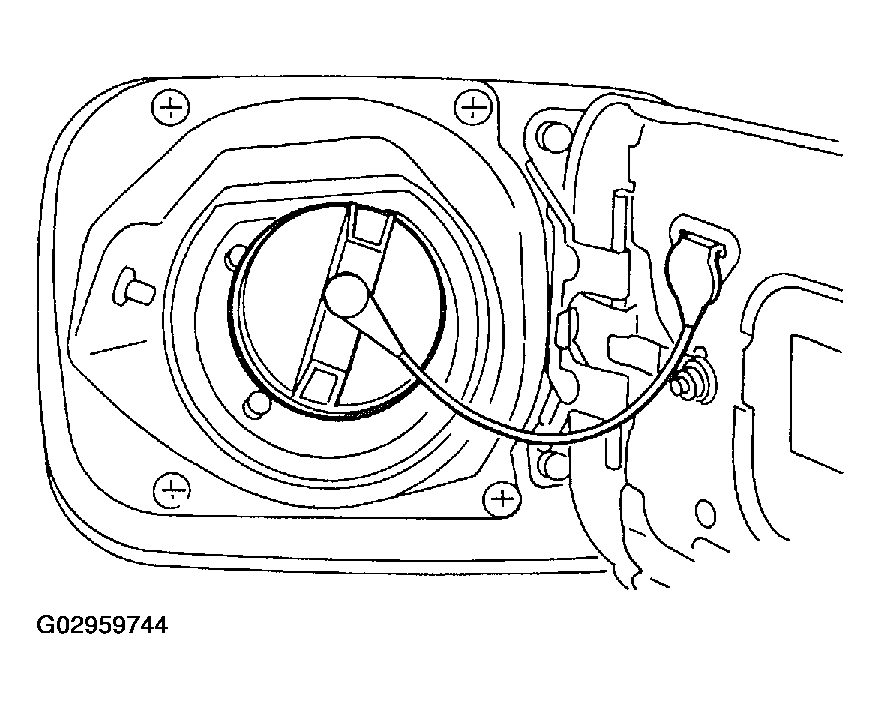

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

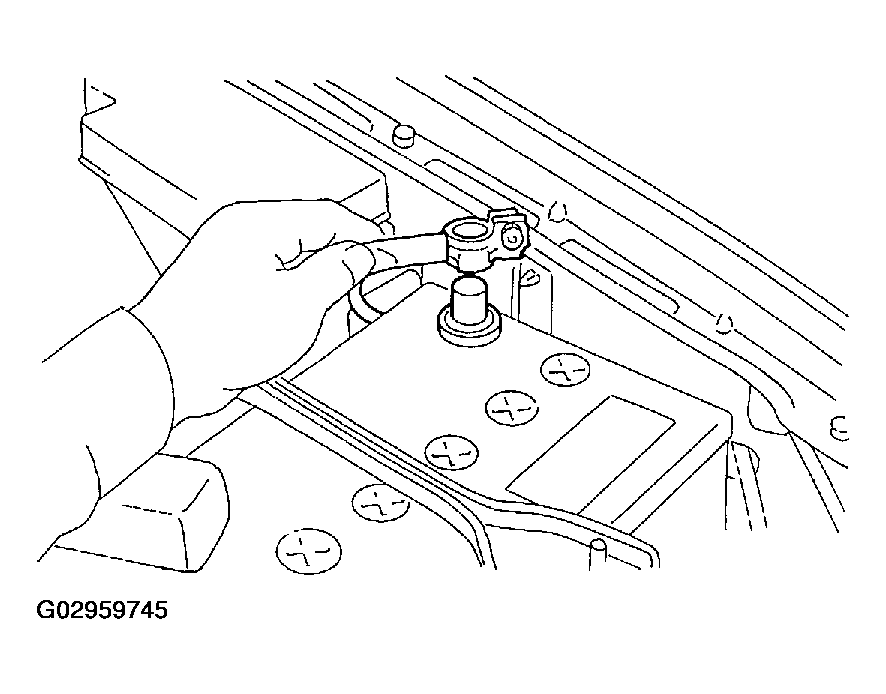

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts which install washer tank on body.

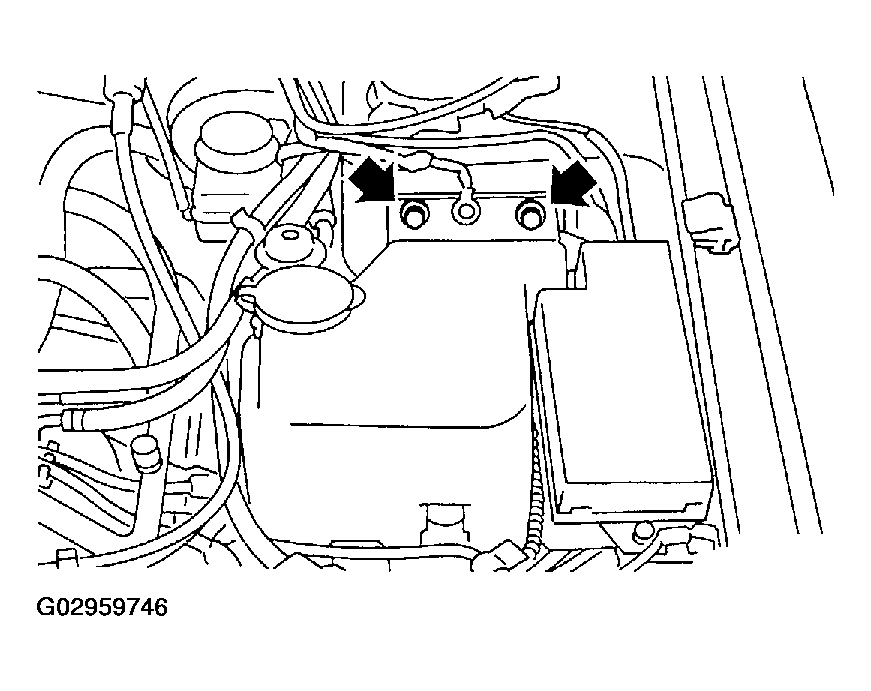

Fig 3: Removing Bolts Installing Washer Tank On Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.
Disconnect connector from rear gate glass washer motor.

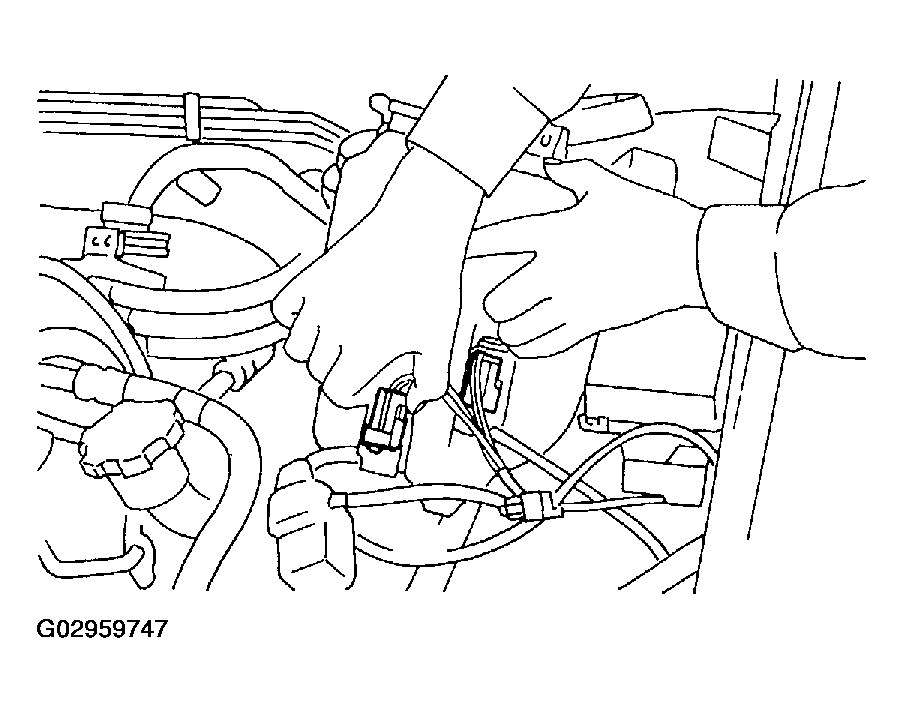

Fig 4: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
Move washer tank, and secure it away from working area.

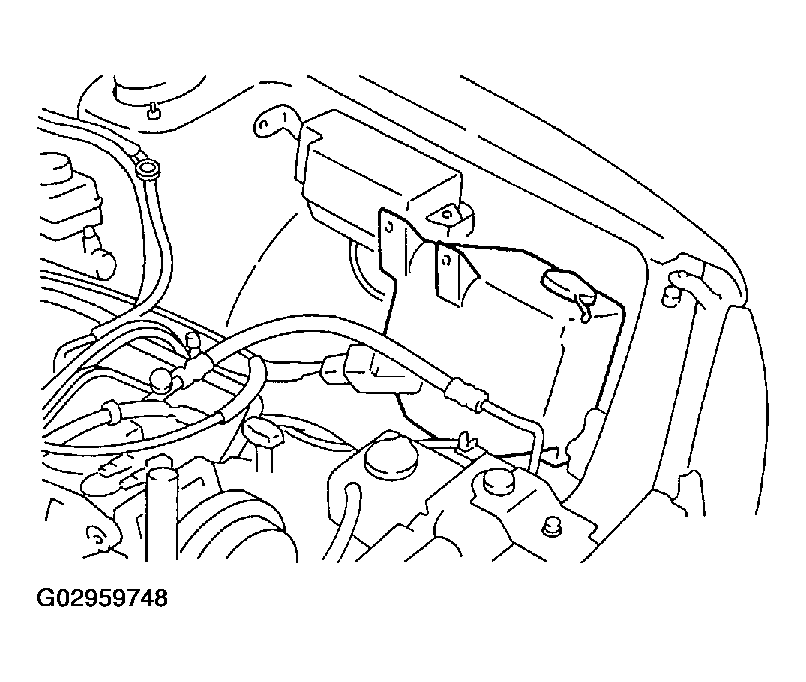

Fig 5: Disconnecting Rear Window Glass Washer Hose From Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug cords from spark plugs (#2 and #4 cylinders).

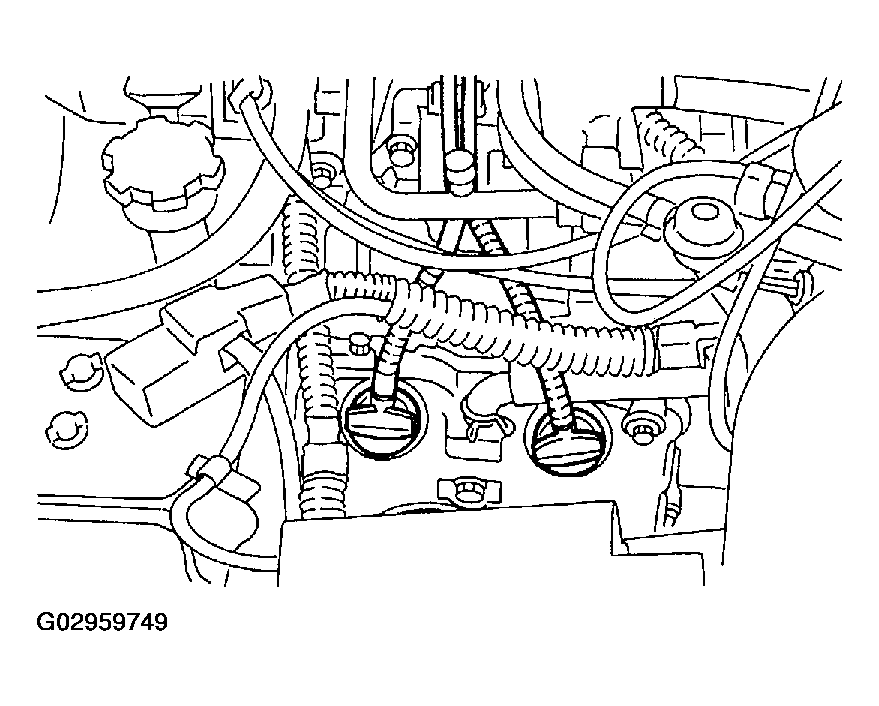

Fig 6: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector LH.

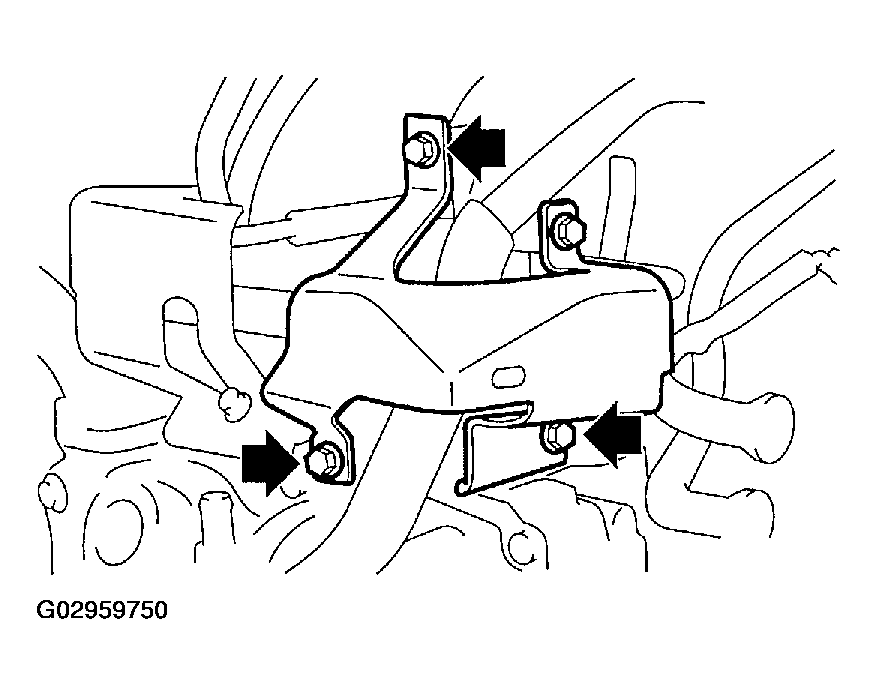

Fig 7: Removing Fuel Pipe Protector LH (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Removing Fuel Pipe Protector LH (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel injector.

Fig 9: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds injector pipe to intake manifold.

Fig 10: Removing Bolt Holding Injector Pipe To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs injector pipe to intake manifold.

Fig 11: Removing Bolt Installing Injector Pipe To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

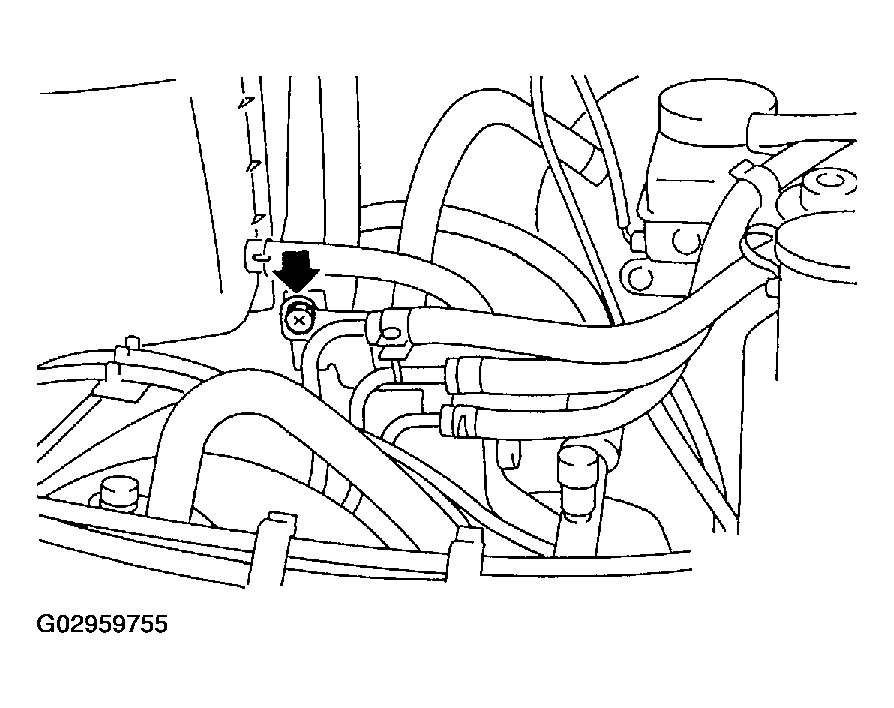

Remove bolt which holds fuel pipe on the left side intake manifold.

Fig 12: Removing Bolt Holding Fuel Pipe On Left Side Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip.

  Fig 13: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove fuel injector while lifting up fuel injector pipe.

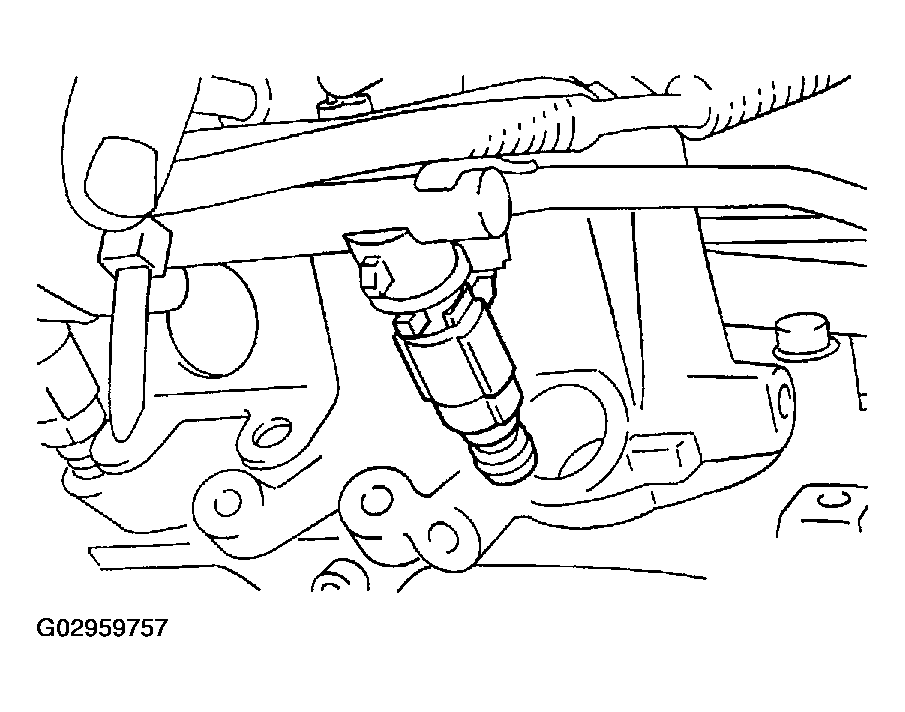

Fig 14: Removing Fuel Injector Lifting Up Fuel Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
