Front Oxygen (A/F) Sensor: Installation

  1. Before installing front oxygen (A/F) sensor, apply anti-seize compound only to threaded portion of front oxygen (A/F) sensor to make the next removal easier.
    1. Anti-seize compound:  SS-30 by JET LUBE
    CAUTION: Never apply anti-seize compound to protector of front oxygen (A/F) sensor.

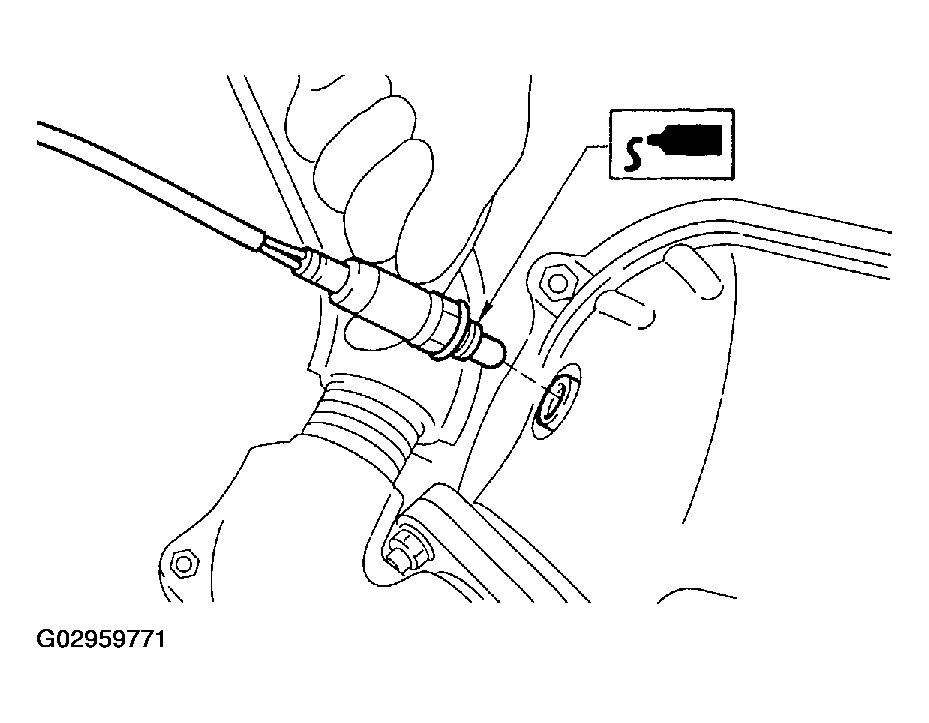

    Fig 1: Applying Anti-Seize Compound To Threaded Portion Of Front Oxygen (A/F) Sensor
    G02959771Courtesy of SUBARU OF AMERICA, INC.
  2. Install front oxygen (A/F) sensor.
    1. Tightening torque:  21 N.m (2.1 kgf-m, 15.2 ft-lb)
    Fig 2: Installing Front Oxygen (A/F) Sensor
    G02959772Courtesy of SUBARU OF AMERICA, INC.
  3. Lower the vehicle.
  4. Connect connector of front oxygen (A/F) sensor.

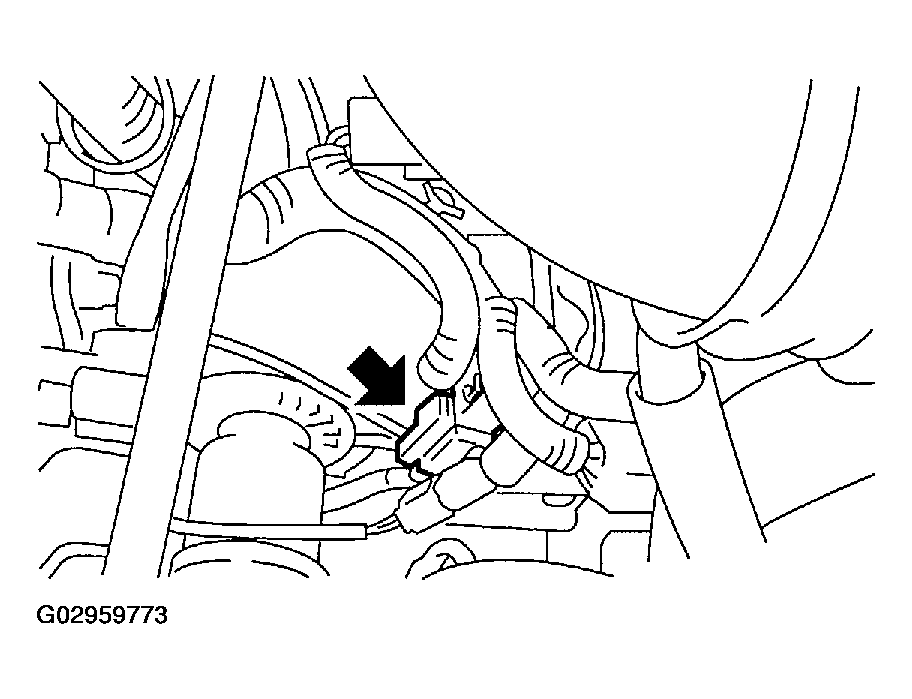

    Fig 3: Connecting Connector Of Front Oxygen (A/F) Sensor
    G02959773Courtesy of SUBARU OF AMERICA, INC.
  5. Connect battery ground cable.

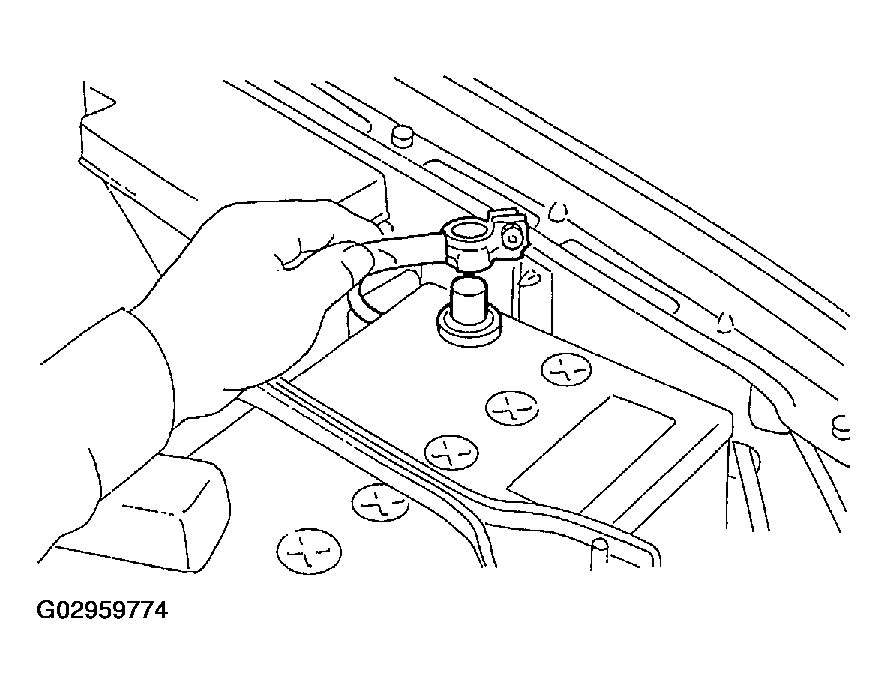

    Fig 4: Connecting Battery Ground Cable
    G02959774Courtesy of SUBARU OF AMERICA, INC.
