Home >> Subaru >> 2002 >> Outback Base, 4D Wagon, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Anti-Theft Systems >> System Tests >> Check Security Indicator Light Circuit

Check Security Indicator Light Circuit

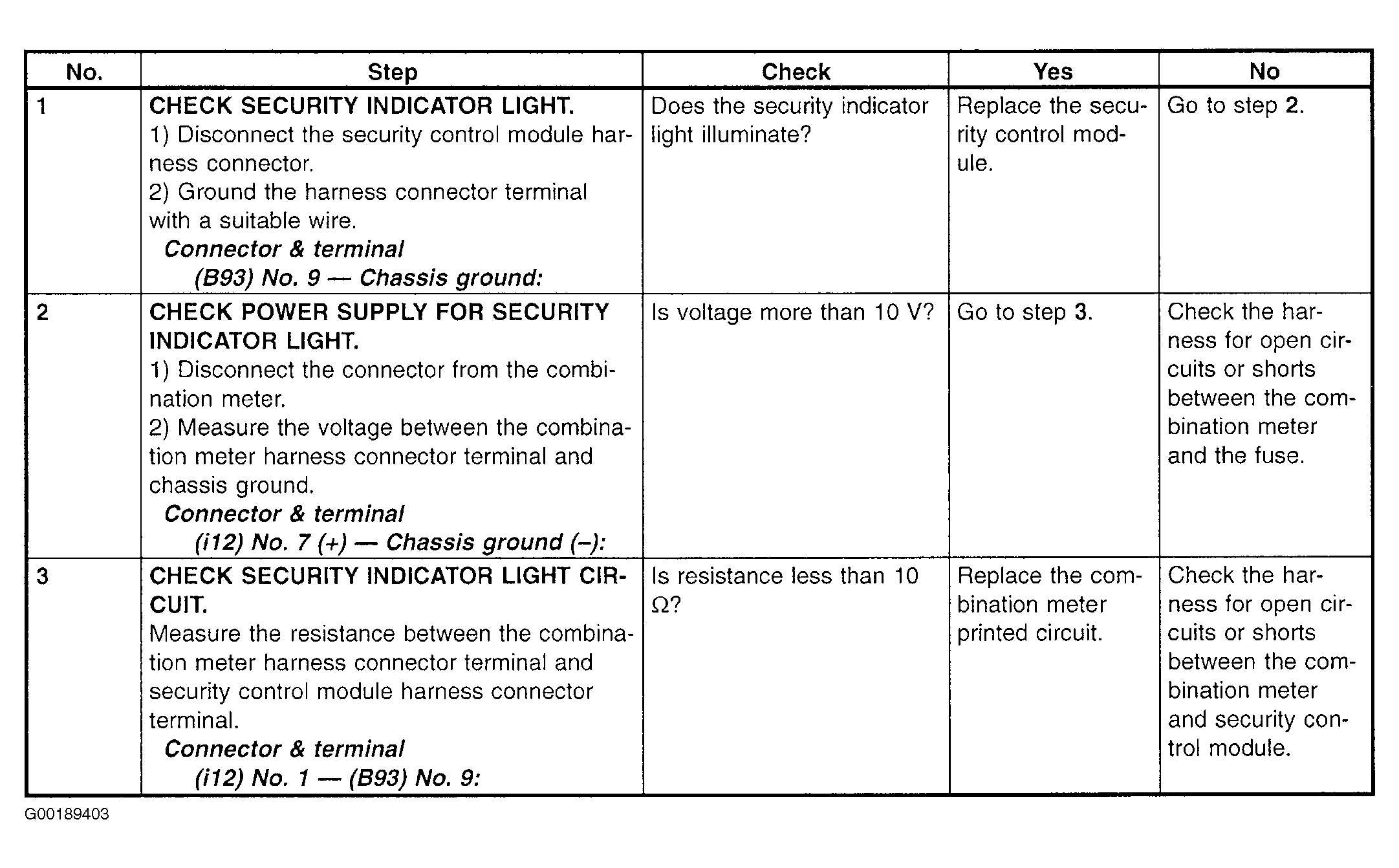

Fig 1: Check Security Indicator Light Circuit (Testing Procedure)

G00189403

Courtesy of SUBARU OF AMERICA, INC.
