Check Interrupt Relay Circuit

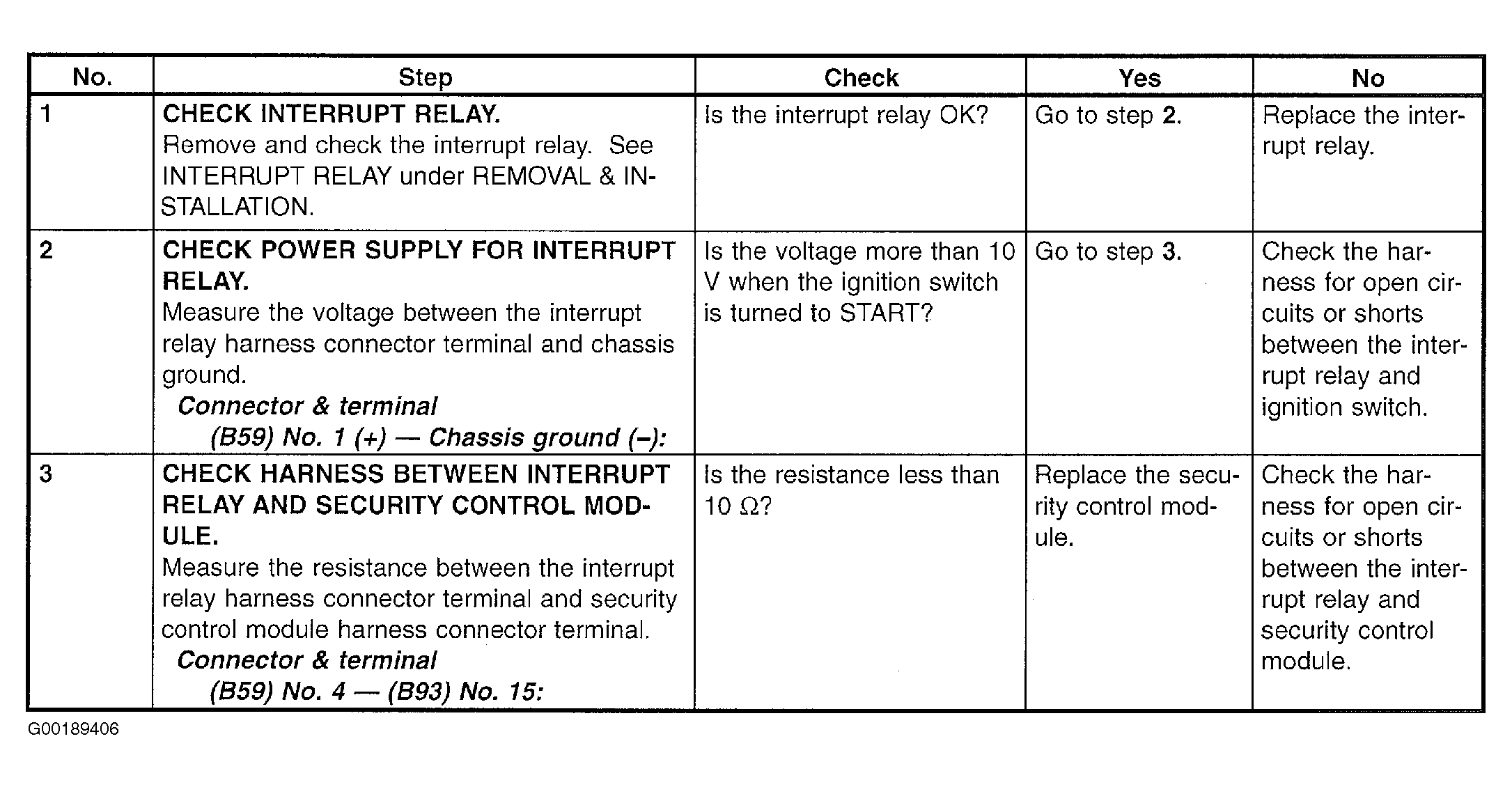

Fig 1: Check Interrupt Relay Circuit (Testing Procedure)

G00189406

Courtesy of SUBARU OF AMERICA, INC.
