MT Gear Shift Lever: Removal

Remove gear shift knob.
Remove console box. Refer to REMOVAL , Console Box.

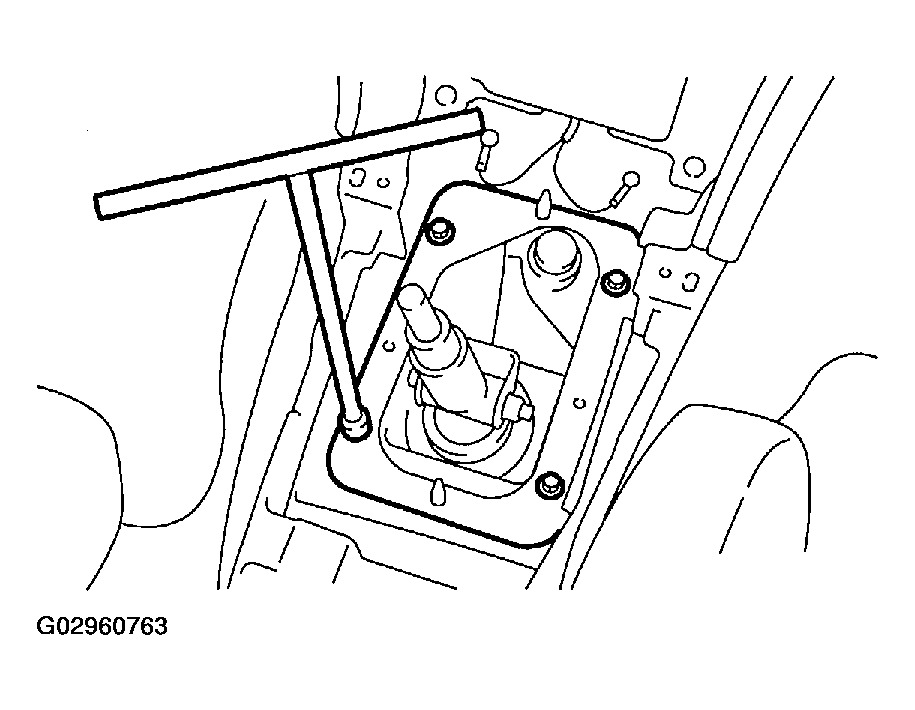

Remove boot plate from body.

Fig 1: Removing Boot Plate From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift the vehicle.
Remove rear exhaust pipe and muffler.
Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.

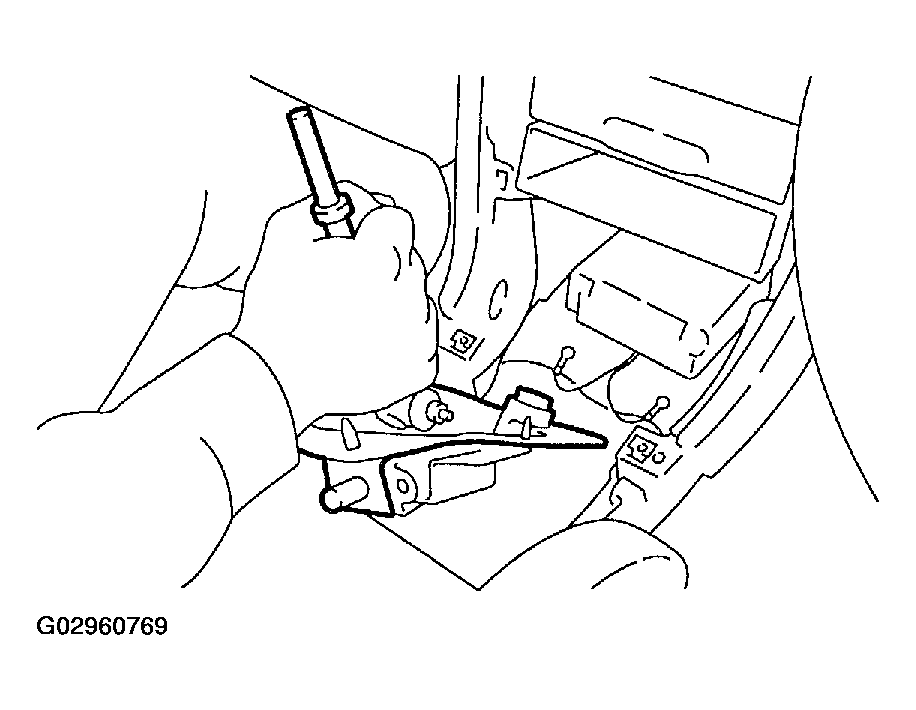

Remove heat shield cover.

Fig 2: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.

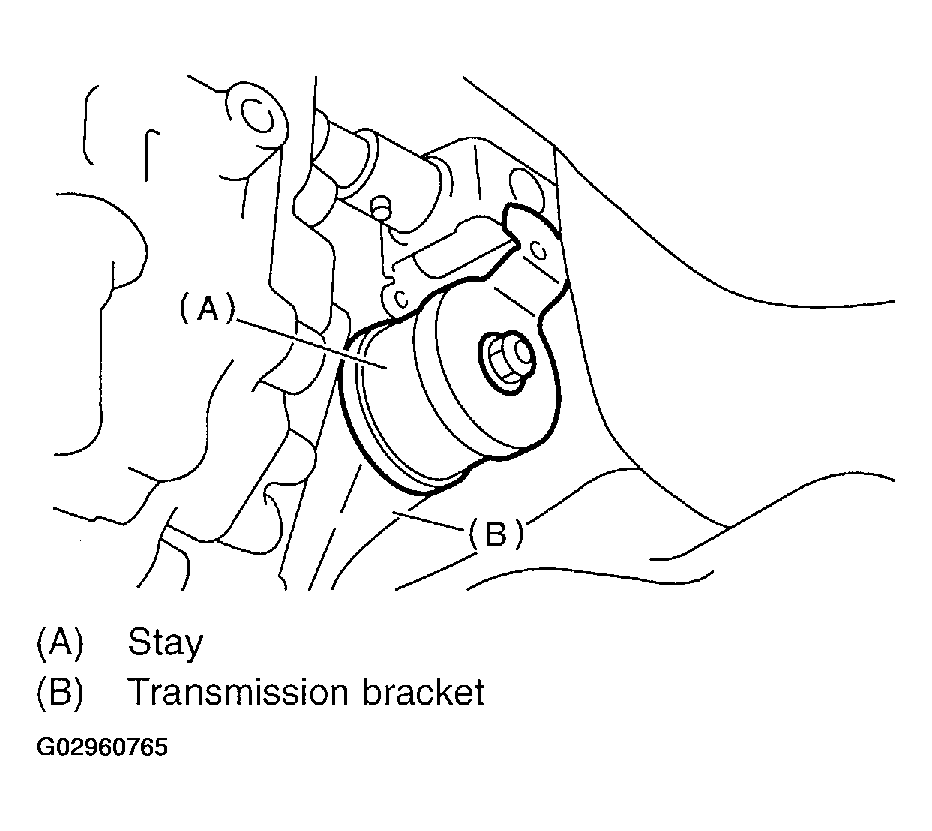

Remove stay from transmission bracket.

Fig 3: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.

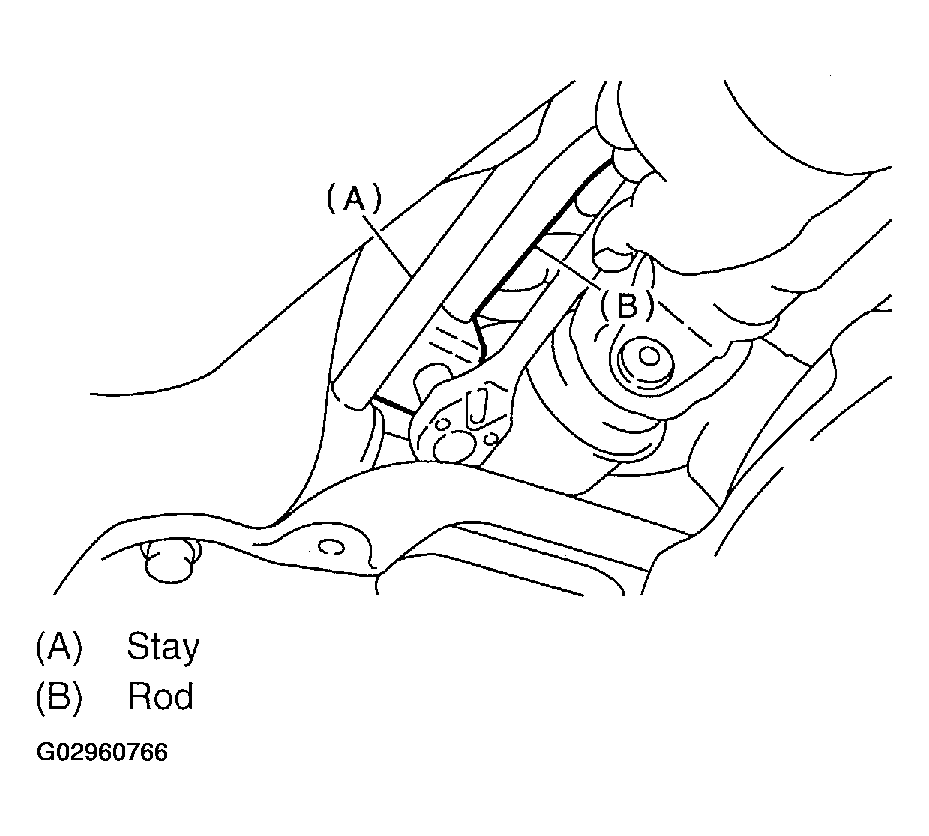

Remove rod from joint.

Fig 4: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove cushion rubber from body.

Fig 5: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove joint and then extract spring pin.

Fig 6: Removing Joint & Extract Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove gear shift lever.

Fig 7: Removing Gear Shift Lever

Courtesy of SUBARU OF AMERICA, INC.
