MT Gear Shift Lever: Assembly

Clean all parts before assembly.
Mount bushing and cushion rubber on the stay.

Fig 1: Mounting Bushing & Cushion Rubber On Stay
Courtesy of SUBARU OF AMERICA, INC.
Mount each part; boot, O-ring, bushing A, spacer, bushing, bushing B and spring pin on the gear shift lever.
NOTE:
- Always use new O-rings.
- Apply grease [NIGTIGHT LYW No. 2 or equivalent] to the inner and side surfaces of the bushing when installing the spacer. Refer to MT GEAR SHIFT LEVER , COMPONENT, General Descriptions.
Fig 2: Mounting Boot, O-Ring, Bushing A, Spacer, Bushing, Bushing B & Spring Pin On Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert gear shift lever into the boot hole.
Install snap ring and stay to the bushing B.

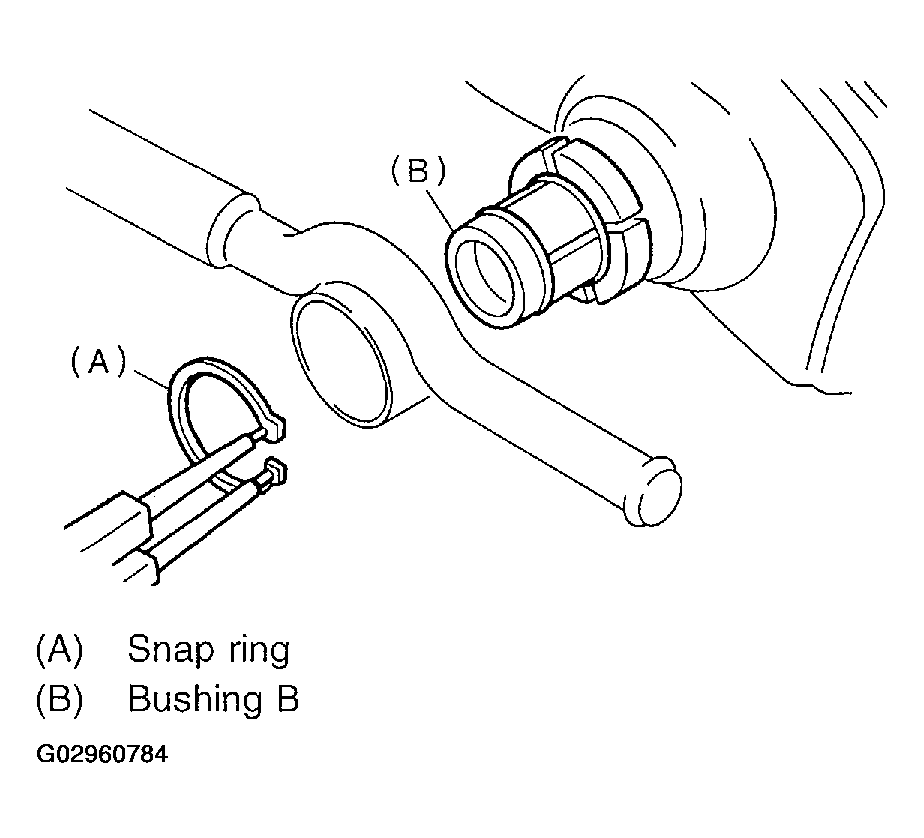

Fig 3: Installing Snap Ring & Stay To Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Tighten with lock wire to the extent that the boot will not come off.
NOTE: Always use new lock wire.

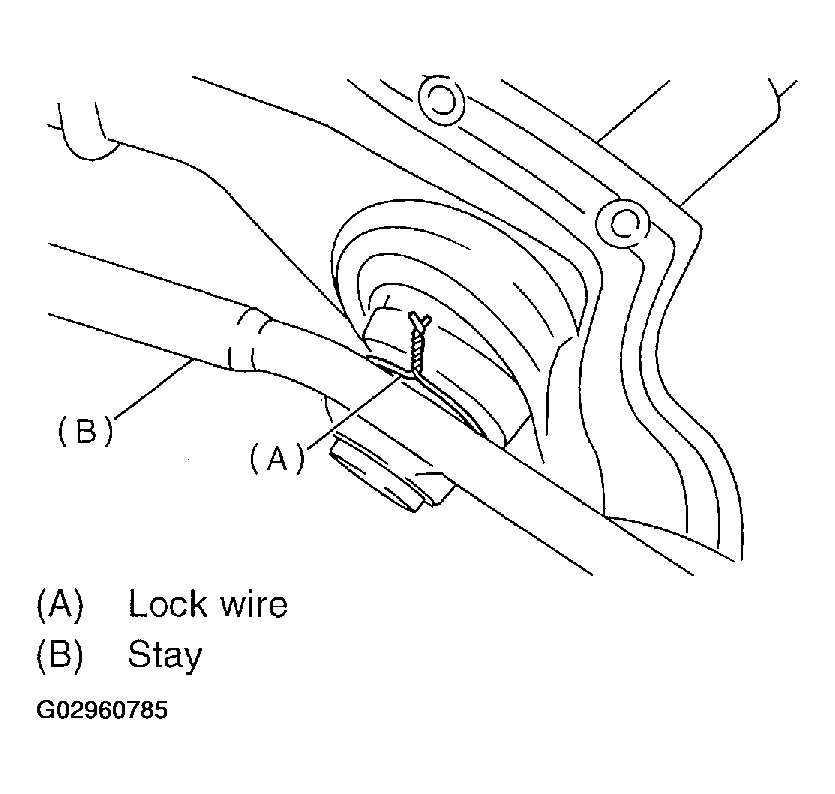

Fig 4: Tightening Lock Wire To Stay
Courtesy of SUBARU OF AMERICA, INC.
Insert the rod into the boot hole.
Connect rod to gear shift lever.
1. Tightening torque: 11.8 N.m (1.2 kgf-m, 8.7 ft-lb)
Fig 5: Connecting Rod To Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Check rod swing torque in relation to the gear shift lever.
If torque exceeds the specification, replace bushing or retighten nuts.
1. Locking torque: 0.7 N.m (0.07 kgf-m, 0.5 ft-lb) or less
Fig 6: Checking Rod Swing Torque In Relation To Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Check that there is no excessive play and that parts move smoothly.
