Home >> Subaru >> 2002 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T & M/T Control Systems >> General Diagnostic Table >> Inspection

General Diagnostic Table: Inspection

Select Lever Does Not Move From "P" Position

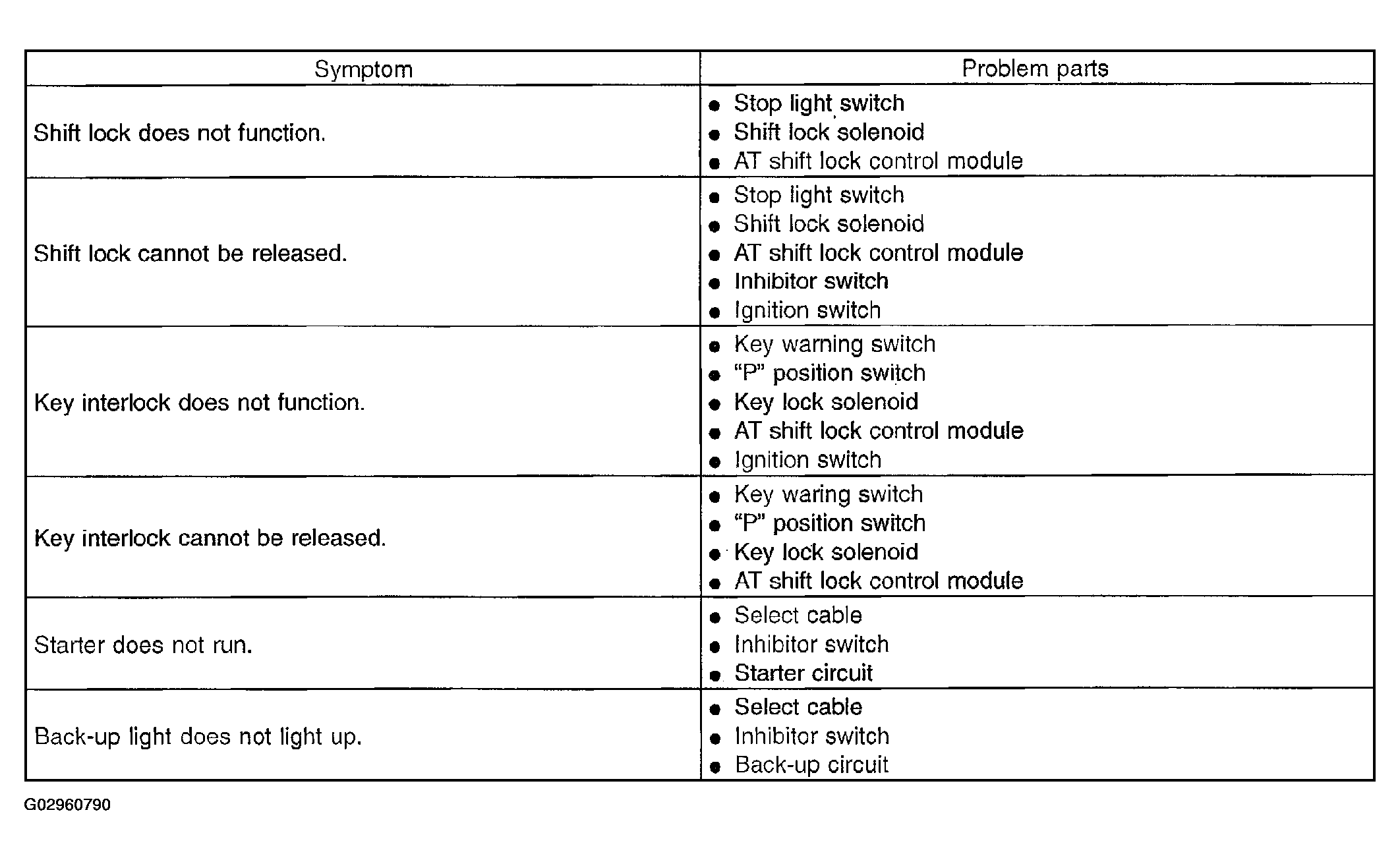

Fig 1: Control System Symptom Inspection Chart

G02960790

Courtesy of SUBARU OF AMERICA, INC.
