Electrical Specification

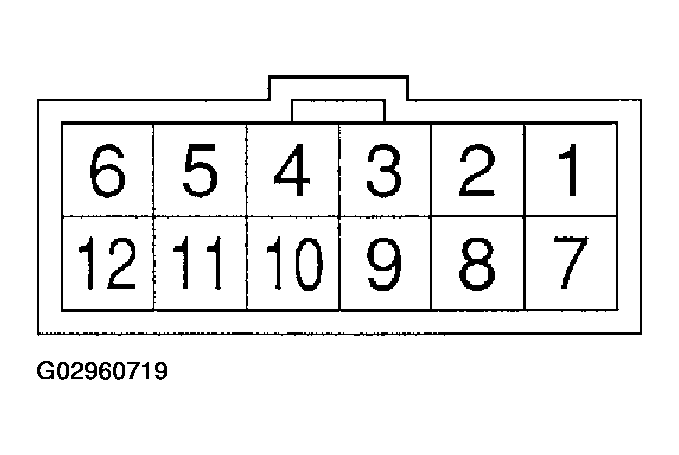

Fig 1: Identifying AT Shift Lock System Terminals
G02960719Courtesy of SUBARU OF AMERICA, INC.

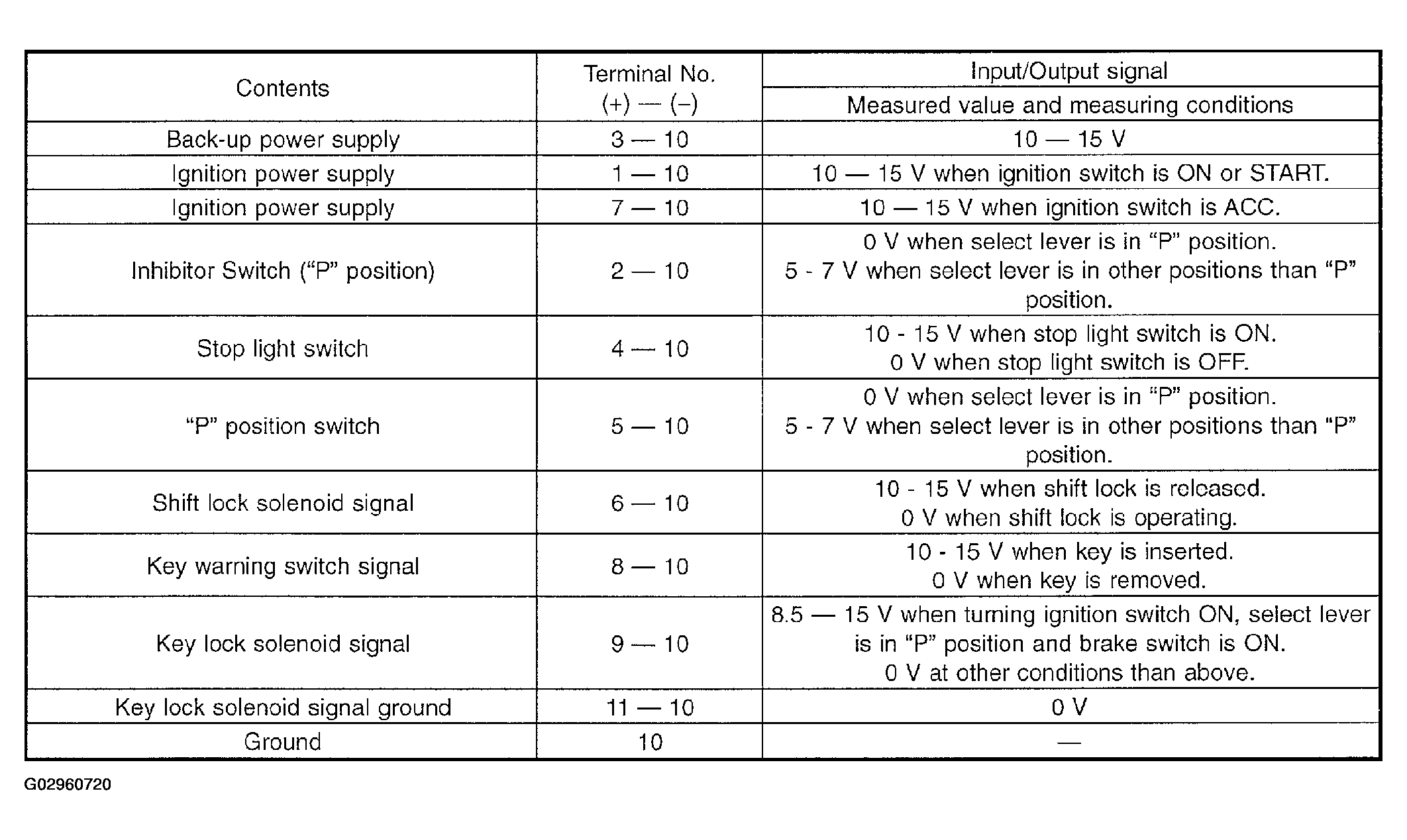

Fig 2: AT Shift Lock System Electrical Specification Chart
G02960720Courtesy of SUBARU OF AMERICA, INC.
