Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

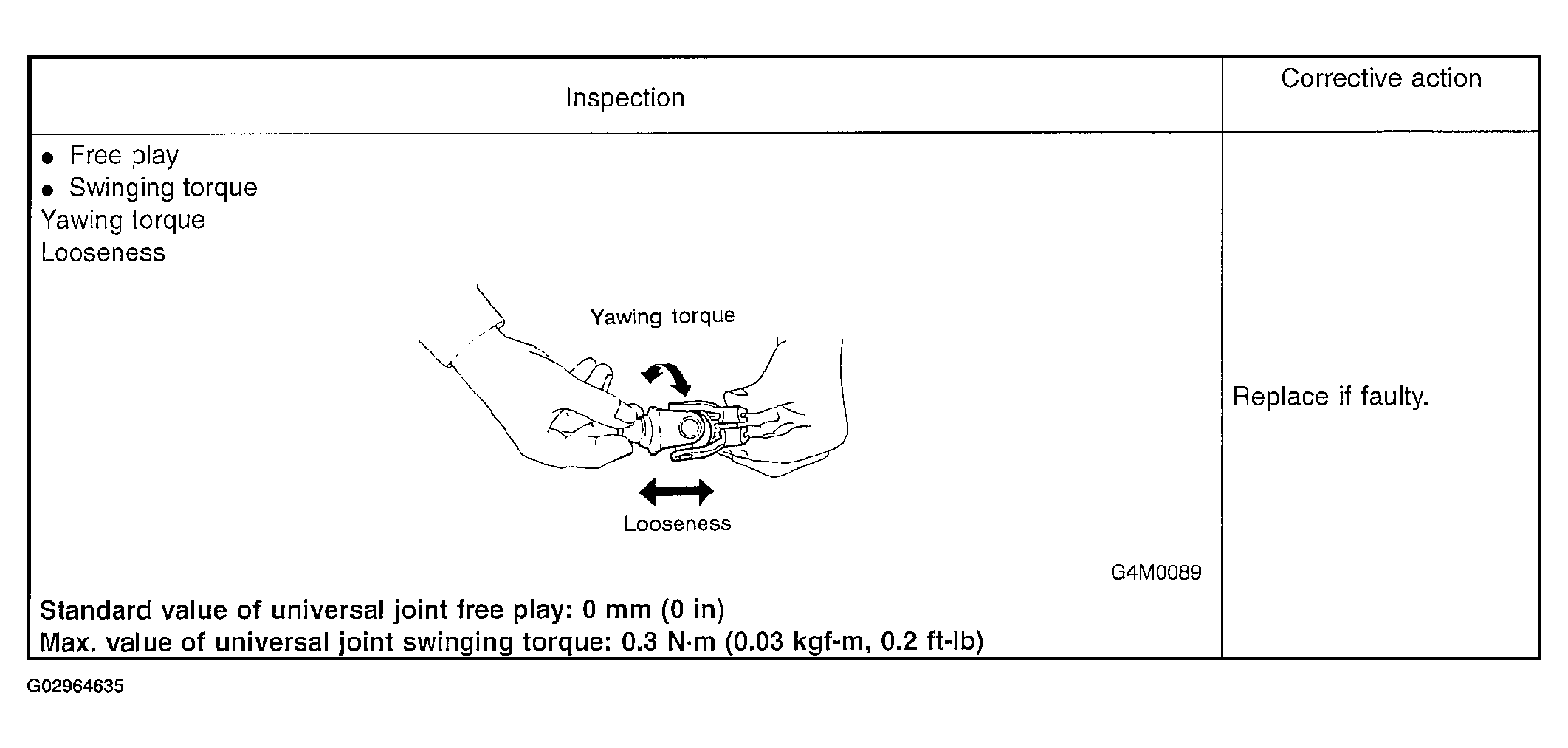

Fig 1: Checking Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Measurement of folding torque of universal joint is as shown in the figures.

Service limit:

1. Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less
   Fig 2: Measuring Folding Torque Of Universal Joint Long Yoke (1 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  5.49 N (0.56 kgf, 1.23 lb) or less
   Fig 3: Measuring Folding Torque Of Universal Joint Long Yoke (2 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less
   Fig 4: Measuring Folding Torque Of Universal Joint Short Yoke (1 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.

Service limit:

1. Maximum load;  8.43 N (0.86 kgf, 1.90 lb) or less
   Fig 5: Measuring Folding Torque Of Universal Joint Short Yoke (2 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.
