Basic Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

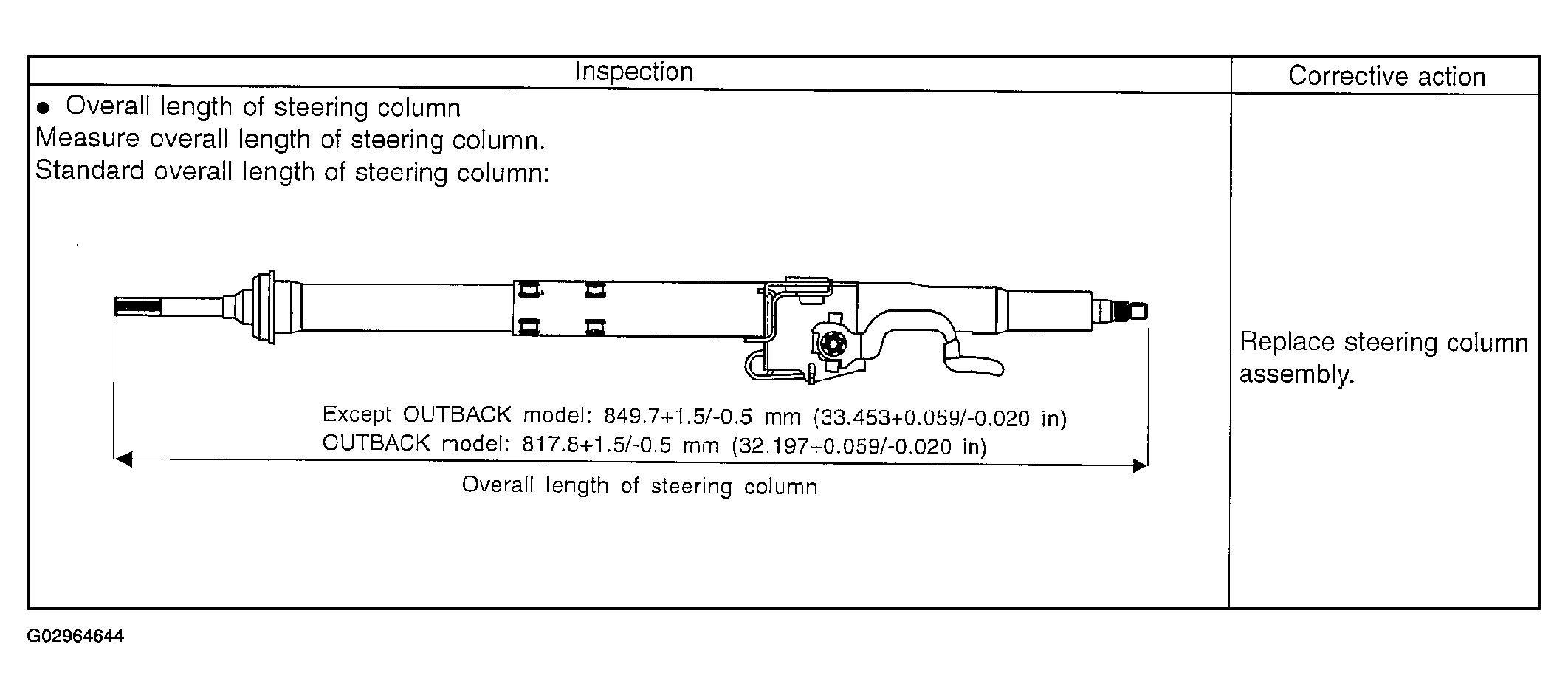

Fig 1: Inspecting Tilt Steering Column For Wear & Damage
G02964644Courtesy of SUBARU OF AMERICA, INC.
