Service Limit

Make a measurement as follows. If it exceeds the specified service limit, adjust or replace.

NOTE: When making a measurement, vise gearbox by using ST. Never vise gearbox by inserting aluminum plates, etc. between vise and gearbox.

ST 926200000 STAND

Sliding resistance of rack shaft:

  1. Service limit:  304 N (31 kgf, 68 lb) or less

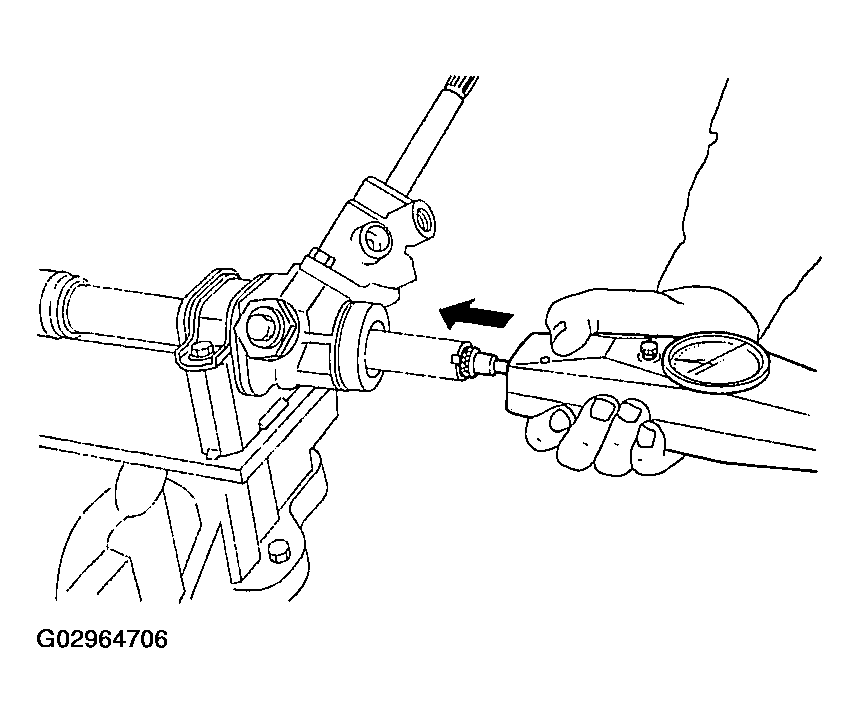

    Fig 1: Measuring Sliding Resistance Of Rack Shaft (1 Of 2)
    G02964706Courtesy of SUBARU OF AMERICA, INC.
    Fig 2: Measuring Sliding Resistance Of Rack Shaft (2 Of 2)
    G02964707Courtesy of SUBARU OF AMERICA, INC.
