Steering Gearbox: Adjustment

Adjust front toe.
1. Standard of front toe: IN 3 - OUT 3 mm (IN 0.12 - OUT 0.12 in)

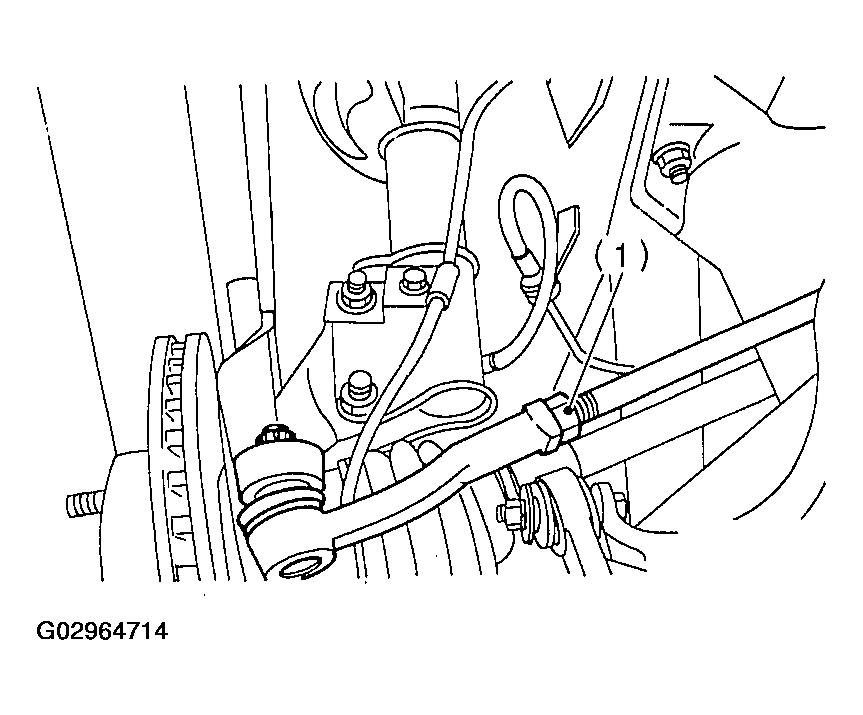

  Fig 1: Adjusting Front Toe
  Courtesy of SUBARU OF AMERICA, INC.

Adjust steering angle of wheels.

Standard of steering angle:

STANDARD OF STEERING ANGLE

Model	Except OUTBACK	OUTBACK
Inner wheel	36.3°+/-1.5°	34.5°+/-1.5°
Outer wheel	31.6°+/-1.5°	30.3°+/-1.5°

If steering wheel spokes are not horizontal when wheels are set in the straight ahead position, and error is more than 5° on the periphery of steering wheel, correctly re-install the steering wheel.

Fig 2: Adjusting Steering Spokes When Wheels Are Set In Straight Ahead Position
Courtesy of SUBARU OF AMERICA, INC.
If steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in the same direction by the same turns.

Fig 3: Correcting & Adjusting Steering Spokes When Wheels Are Set In Straight Ahead Position
