3.0L Model

  1. Drain fluid from the reservoir tank.
  2. Disconnect return hose and suction hose from reservoir tank.
    CAUTION:
    • Do not allow fluid from the hose end to come into contact with pulley belt.
    • To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

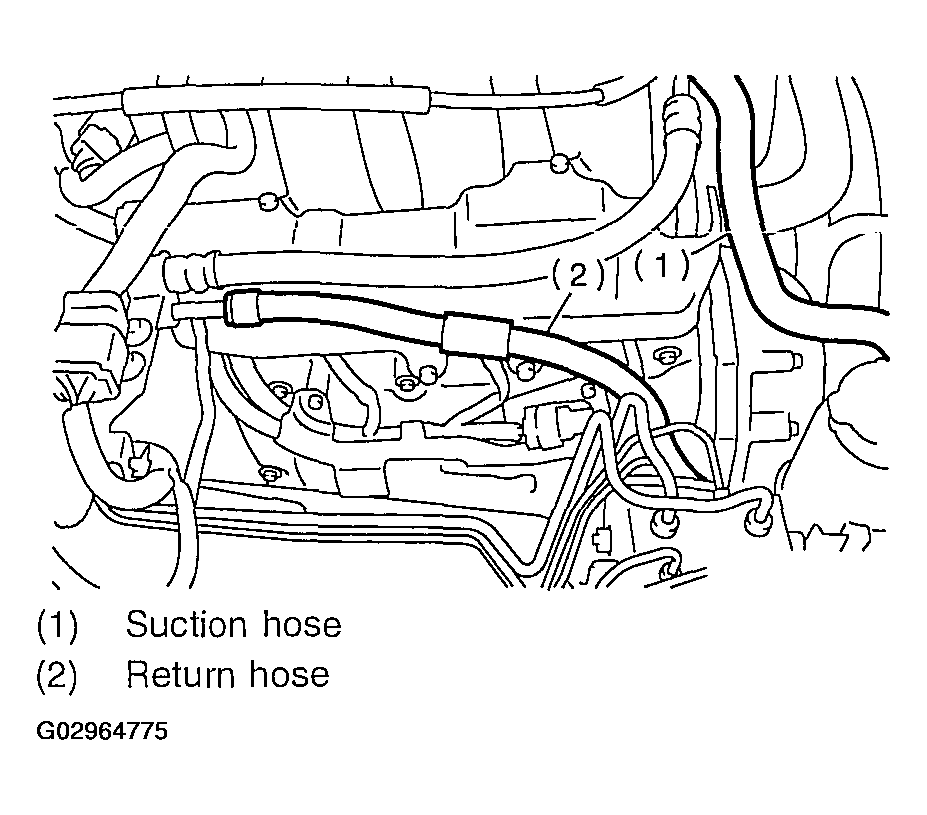

    Fig 1: Disconnecting Return Hose & Suction Hose From Reservoir Tank
    G02964775Courtesy of SUBARU OF AMERICA, INC.
  3. Remove reservoir tank from bracket by pulling it upwards.
