2.5L Model

  1. Drain fluid from the reservoir tank.
  2. Disconnect pipe D from return hose and suction hose from oil pump.
    CAUTION:
    • Do not allow fluid from the hose end to come into contact with pulley belt.
    • To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

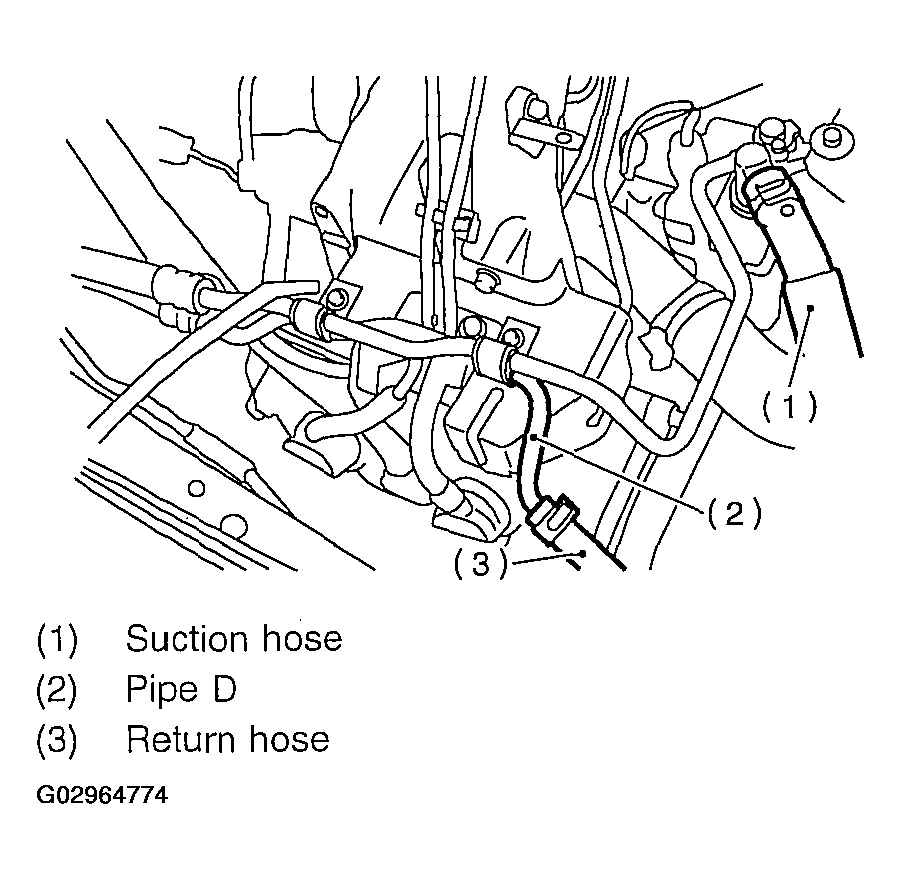

    Fig 1: Disconnecting Pipe D From Return Hose & Suction Hose From Oil Pump
    G02964774Courtesy of SUBARU OF AMERICA, INC.
  3. Remove reservoir tank from bracket by pulling it upwards.
