3.0L Model

  1. Install reservoir tank to bracket.
  2. Connect pressure hose and suction hose to oil pump.

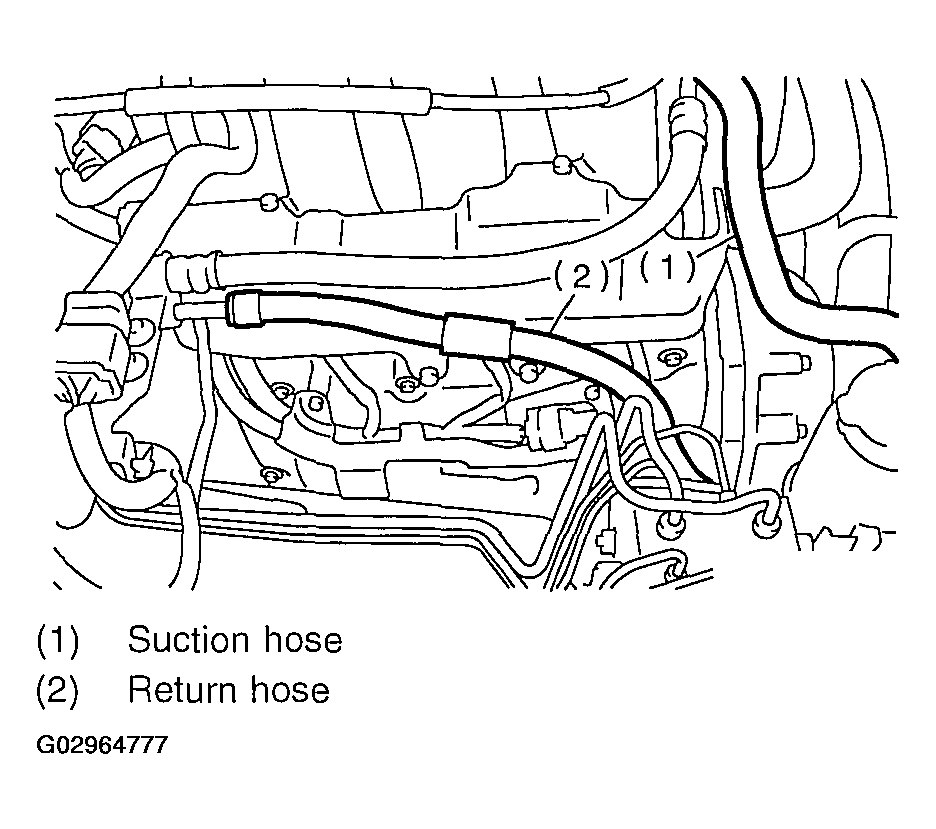

    Fig 1: Connecting Pressure Hose & Suction Hose To Oil Pump
    G02964777Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. Refer to POWER STEERING FLUID  .
