2.5L Model

Remove ground cable from battery.
Remove pulley belt cover bracket.
Loosen lock bolt and slider bolt and remove power steering pump drive V-belt.

Fig 1: Removing Power Steering Pump Drive V-Belt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from power steering pump switch.

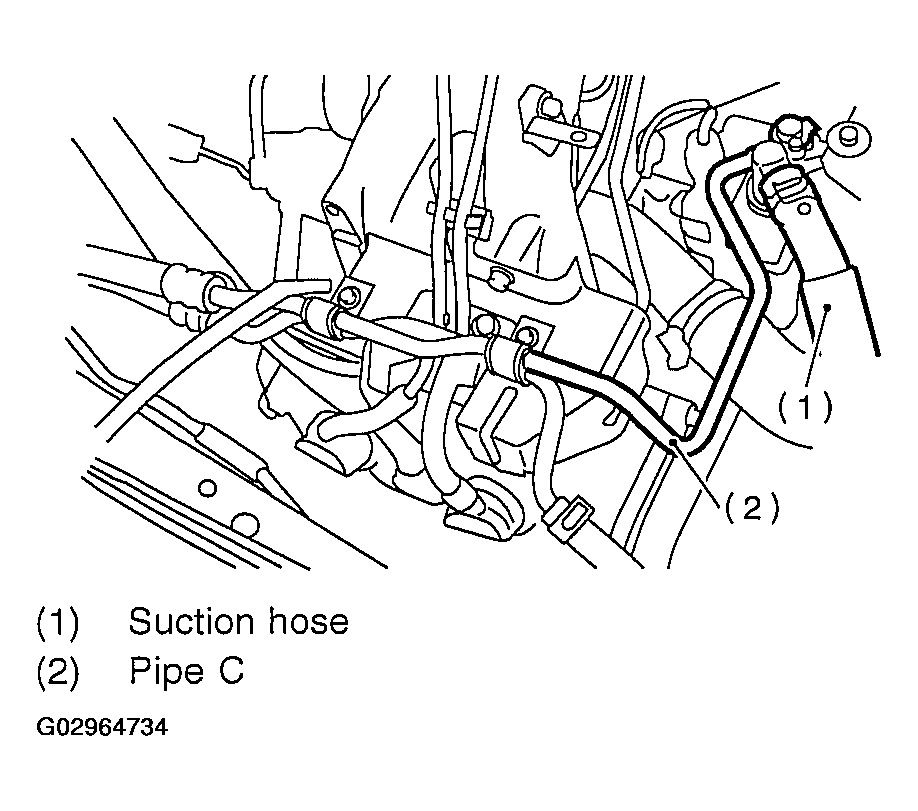

Disconnect pipe C and suction hose from oil pump.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends with a clean cloth.
Fig 2: Disconnecting Pipe C & Suction Hose From Oil Pump
Courtesy of SUBARU OF AMERICA, INC.

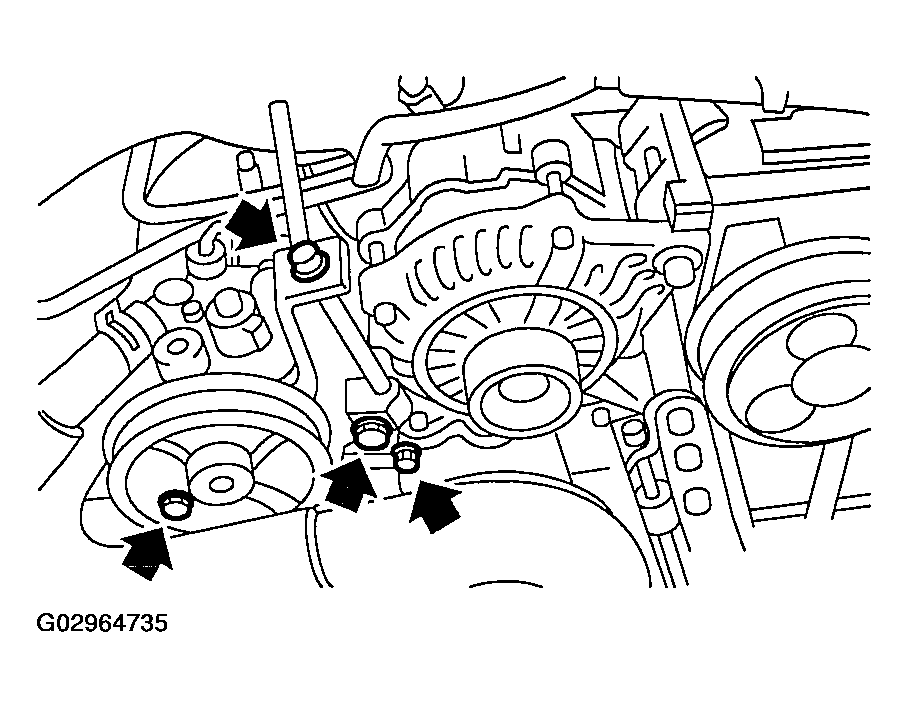

Remove bolts which install power steering pump bracket.

Fig 3: Removing Power Steering Pump Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

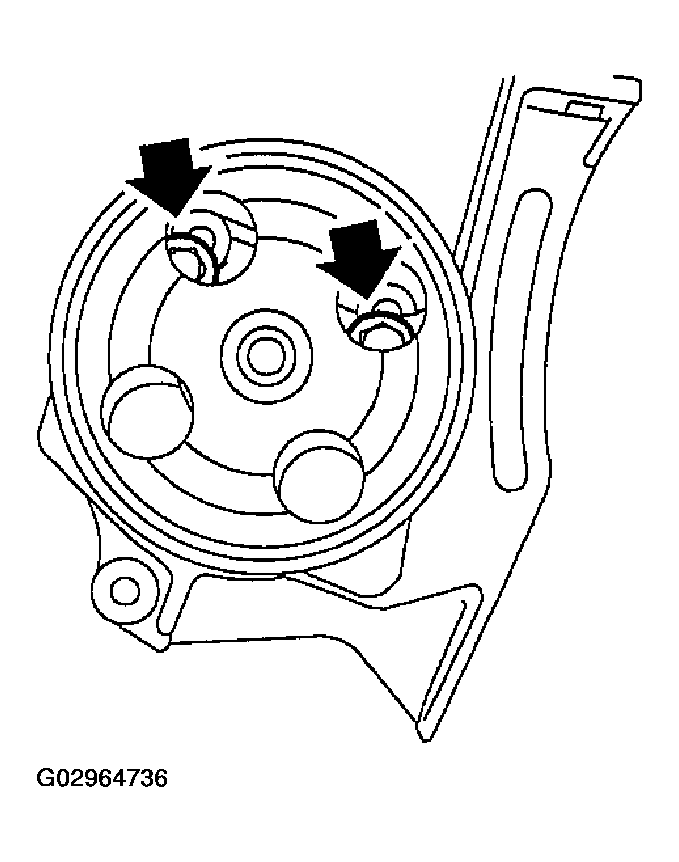

Place oil pump bracket in a vise, remove two bolts from the front side of oil pump.
CAUTION: Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

Fig 4: Placing Oil Bracket In Vise
Courtesy of SUBARU OF AMERICA, INC.

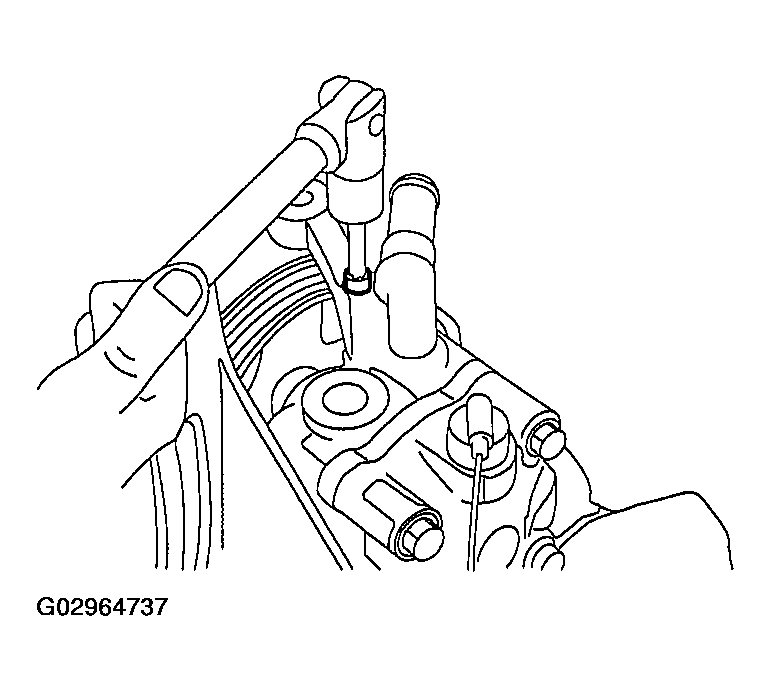

Remove socket from oil pump.

Fig 5: Removing Socket From Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt from the rear side of oil pump.
Disassemble oil pump and bracket by inserting a screwdriver as shown in the figure.

Fig 6: Disassembling Oil Pump & Bracket Inserting Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
