Repair and Diagnosis
>>
Steering
>>
Power Assisted System (Power Steering)
>>
General Description
>>
Preparation Tool
>>
Special Tools
Special Tools

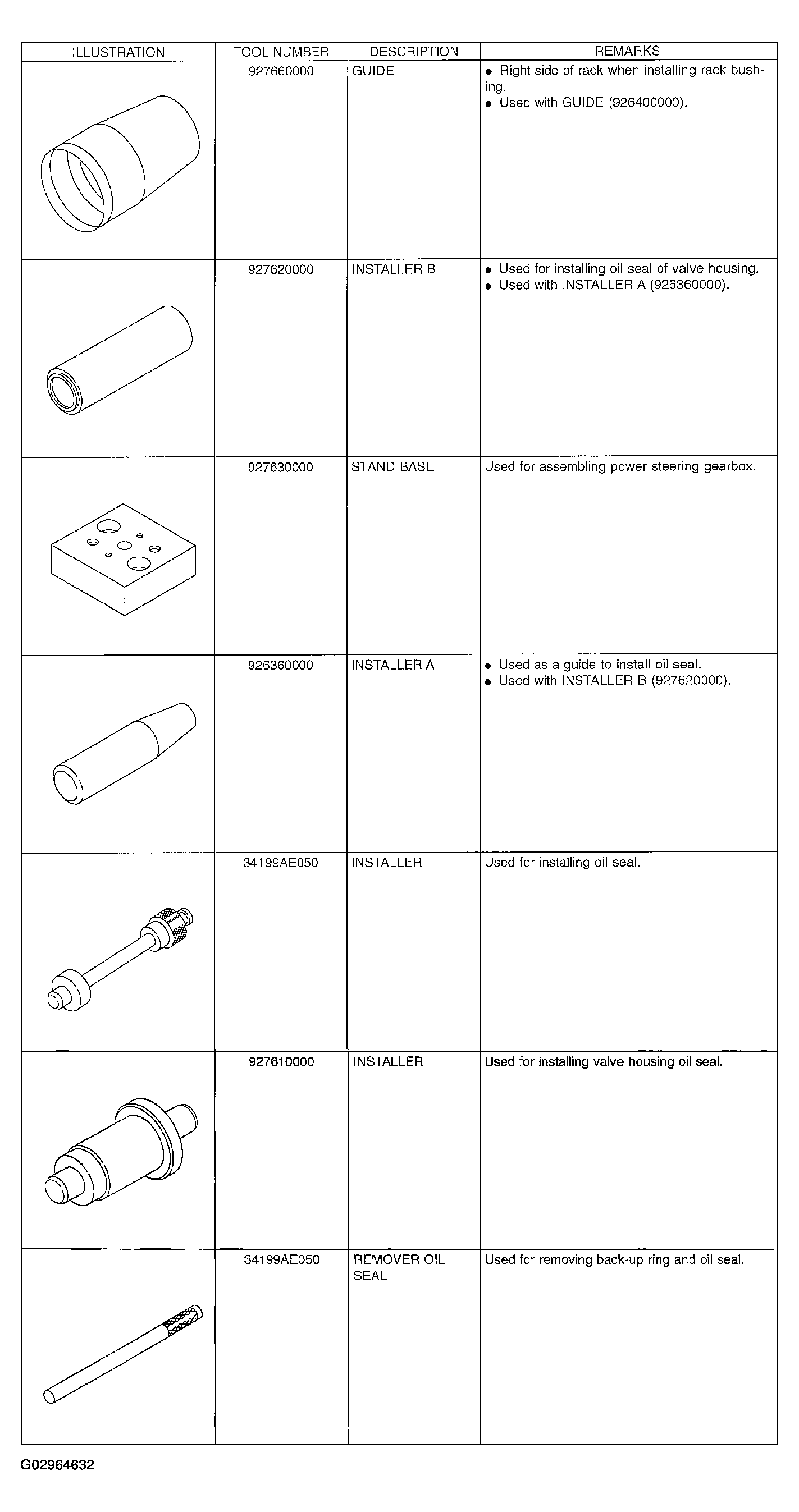

Fig 1: Identifying Special Tools Chart (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

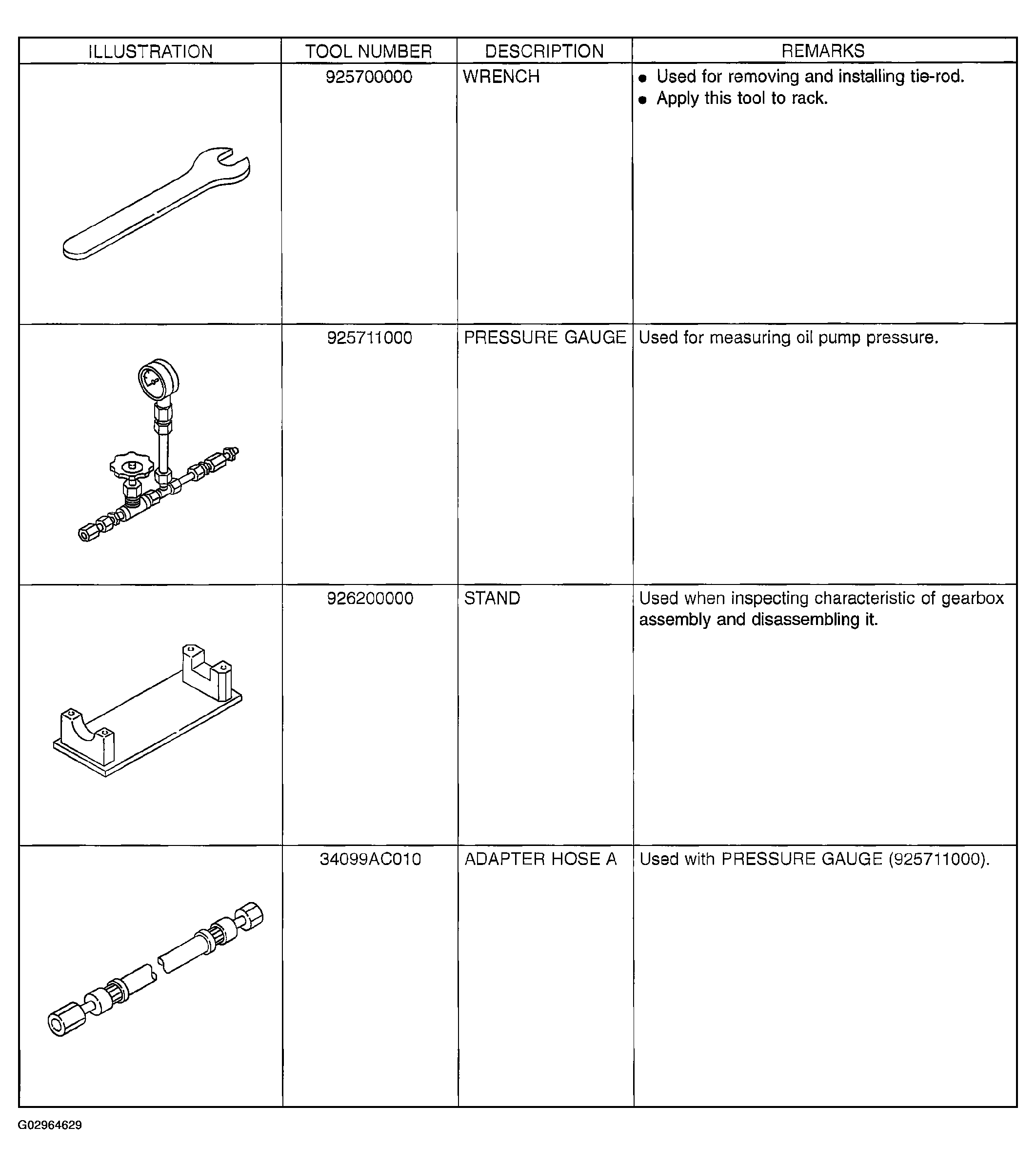

Fig 2: Identifying Special Tools Chart (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

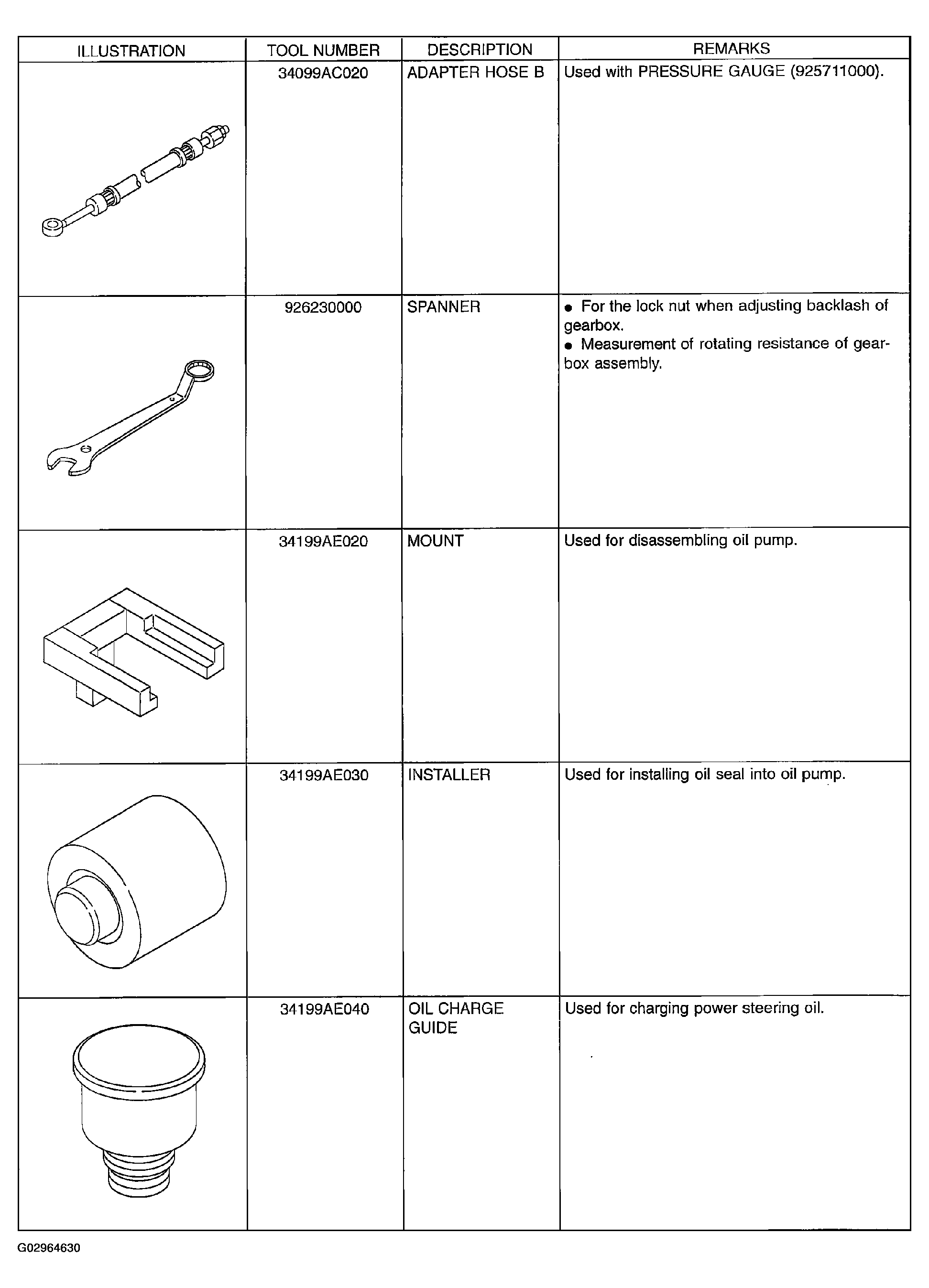

Fig 3: Identifying Special Tools Chart (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

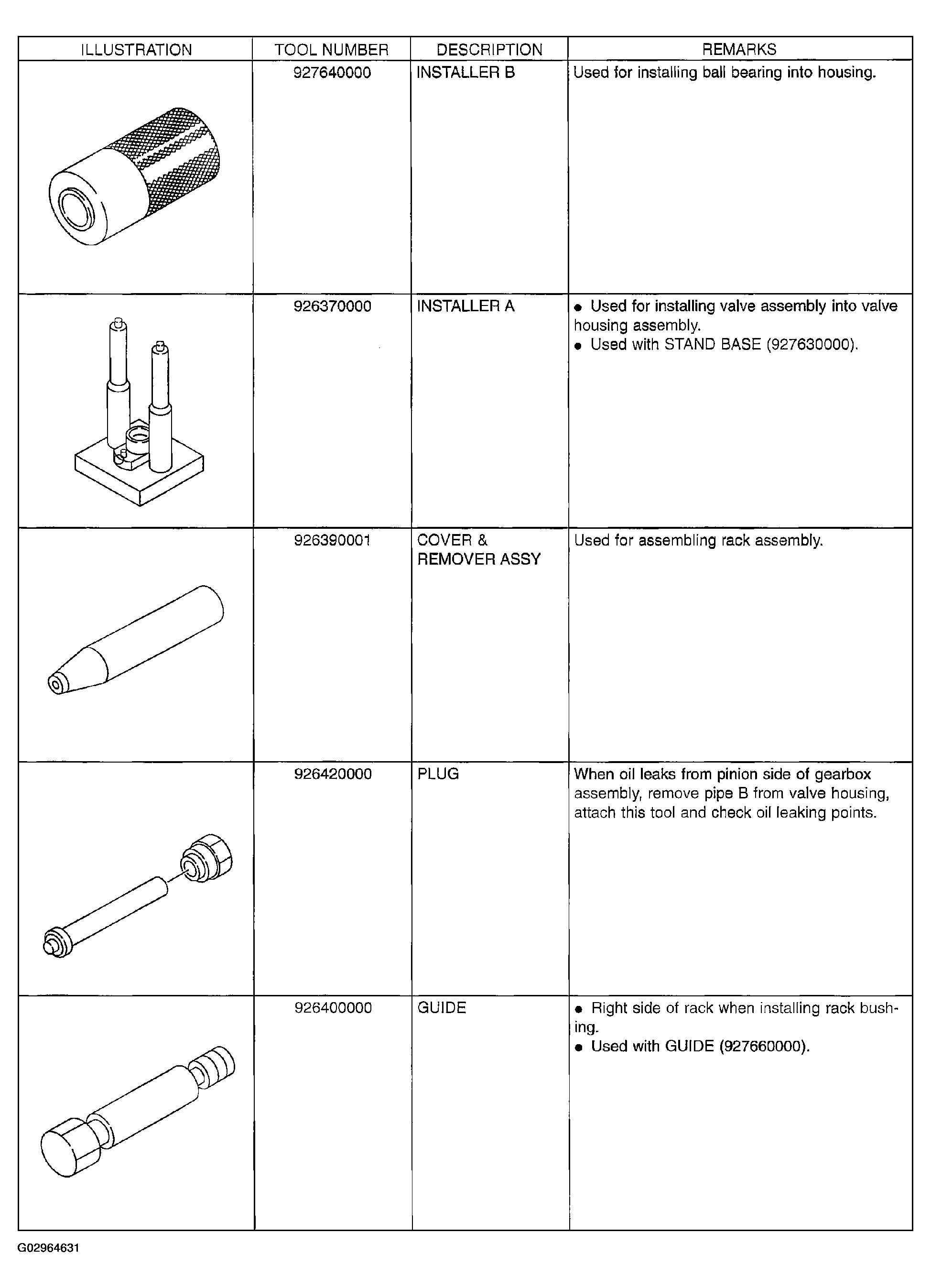

Fig 4: Identifying Special Tools Chart (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
