Oil Pump
Oil Pump
NOTE:
The illustration for 2.5L MODEL is shown below. (Not shown for 3.0L MODEL because it cannot be disassembled.)

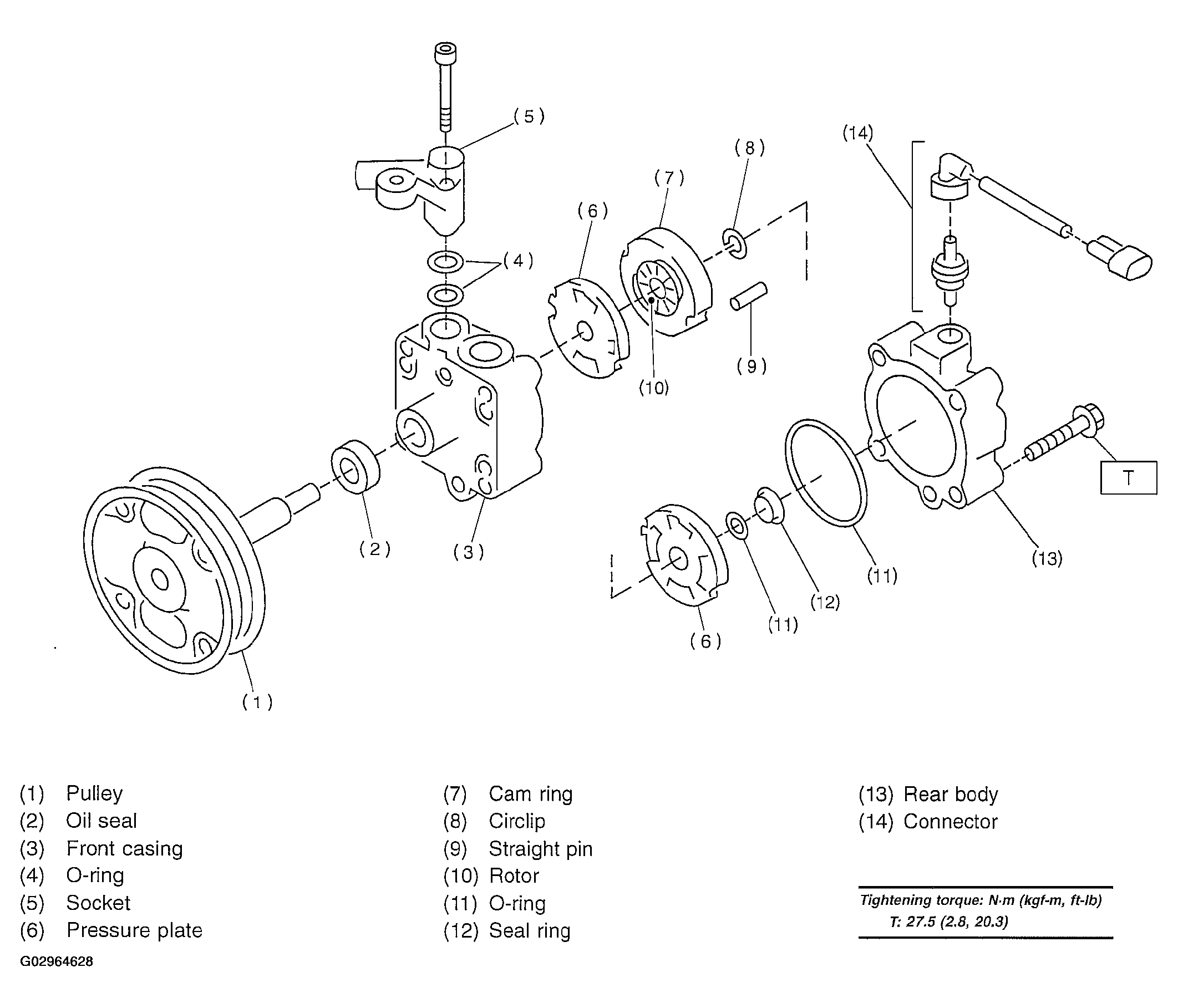

Fig 1: Exploded View Of Oil Pump Assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
