Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove air cleaner case. Refer to REMOVAL , Air Cleaner Case.
  2. Remove clutch hose from operating cylinder.
    CAUTION: Cover hose joint to prevent clutch fluid from flowing out.

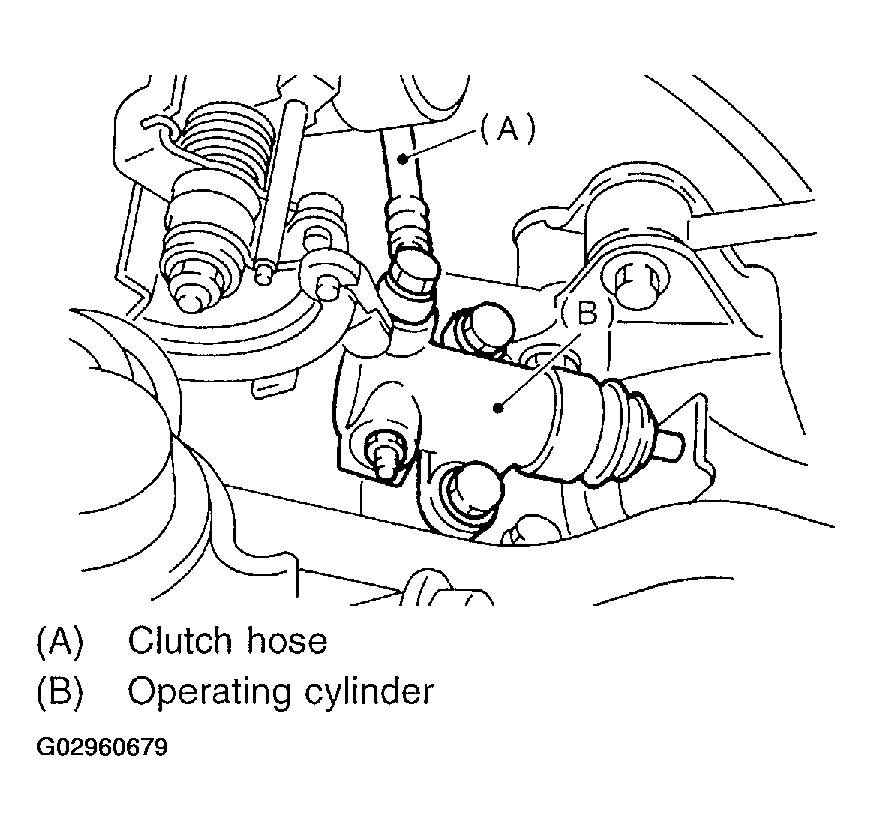

    Fig 1: Identifying Operating Cylinder & Clutch Hose
    G02960679Courtesy of SUBARU OF AMERICA, INC.
  3. Remove operating cylinder from transmission.

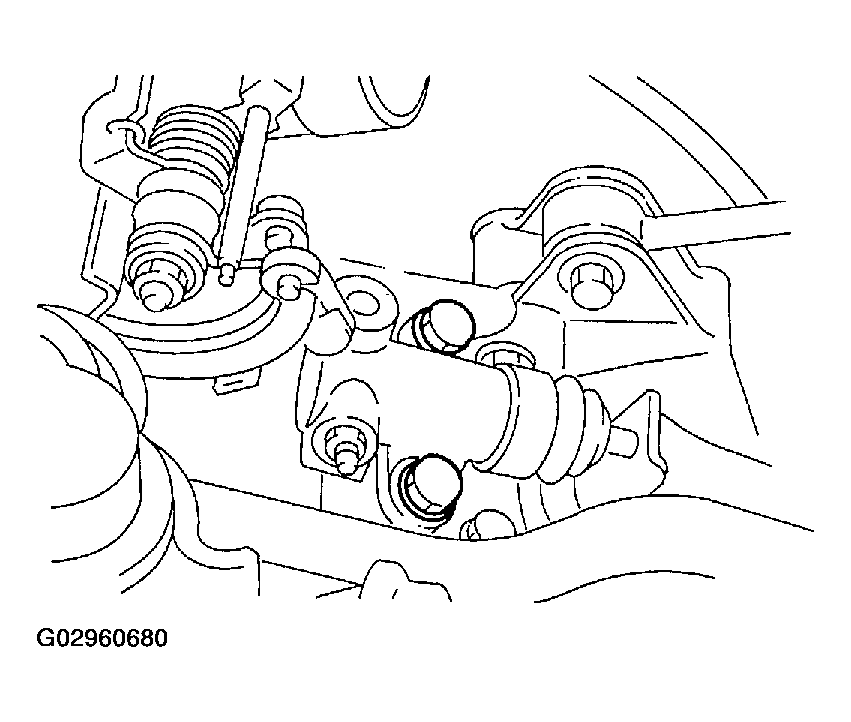

Fig 2: Removing Operating Cylinder From Transmission
G02960680Courtesy of SUBARU OF AMERICA, INC.
