Blower Motor Unit Assembly: Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.
Remove the glove box. Refer to GLOVE BOX .
Loosen the nut to remove support beam stay.

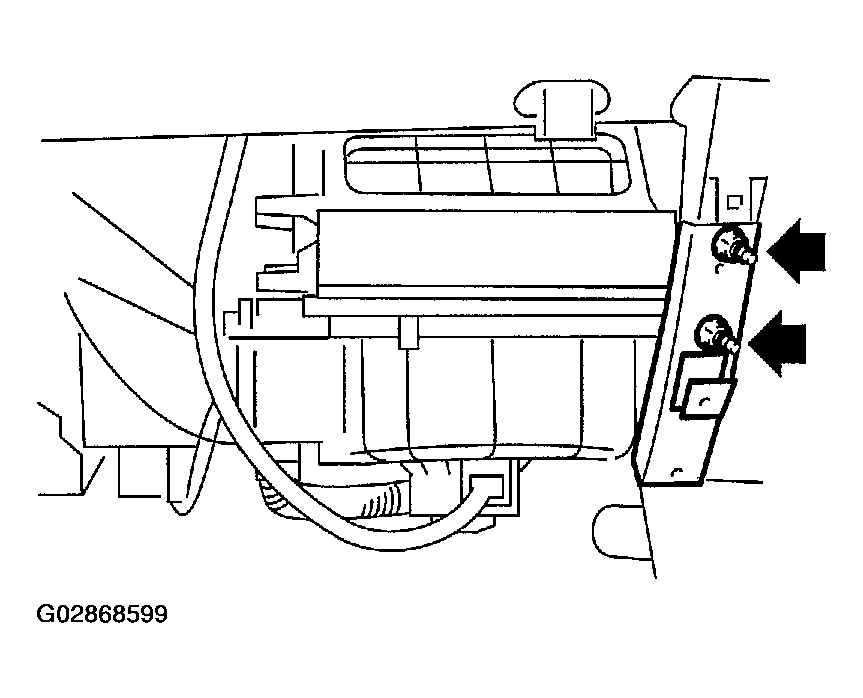

Fig 1: Removing Support Beam Stay
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the blower motor connector.

Fig 2: Disconnecting Blower Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the blower resistor connector.

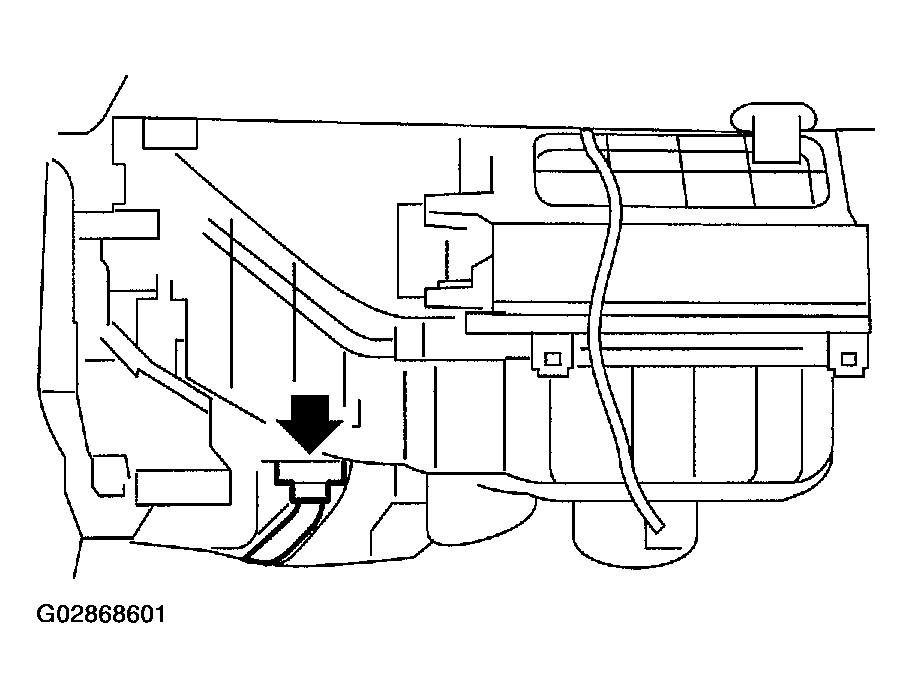

Fig 3: Disconnecting Blower Resistor Connector
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolt and nut to remove blower motor , unit assembly.

Fig 4: Removing Blower Motor Unit Assembly
Courtesy of SUBARU OF AMERICA, INC.
