Fuel Pump Relay: Removal

  1. Disconnect battery ground cable.

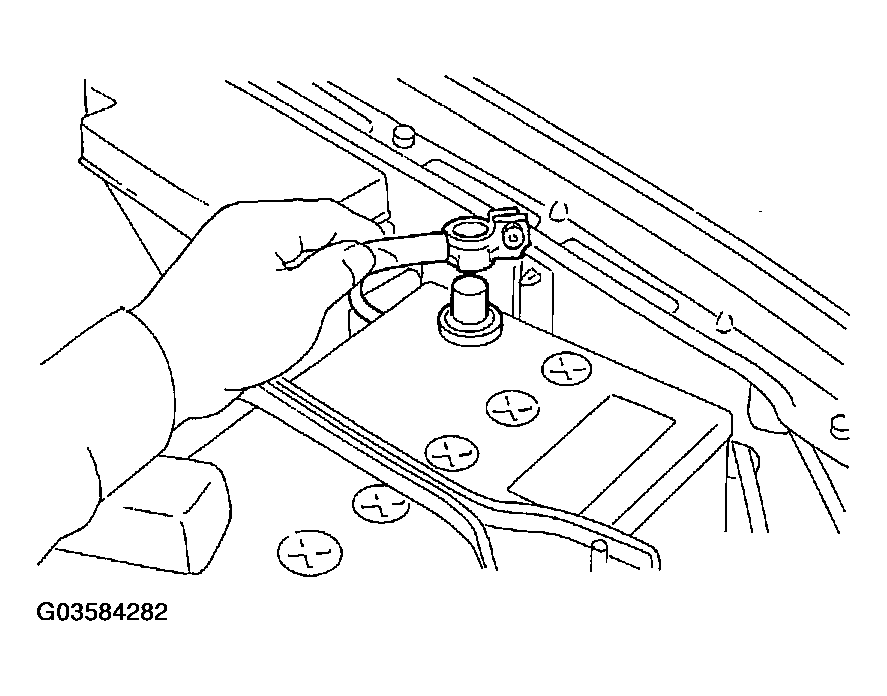

    Fig 1: Disconnecting Battery Ground Cable
    G03584282Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Disconnect connector from fuel pump relay.

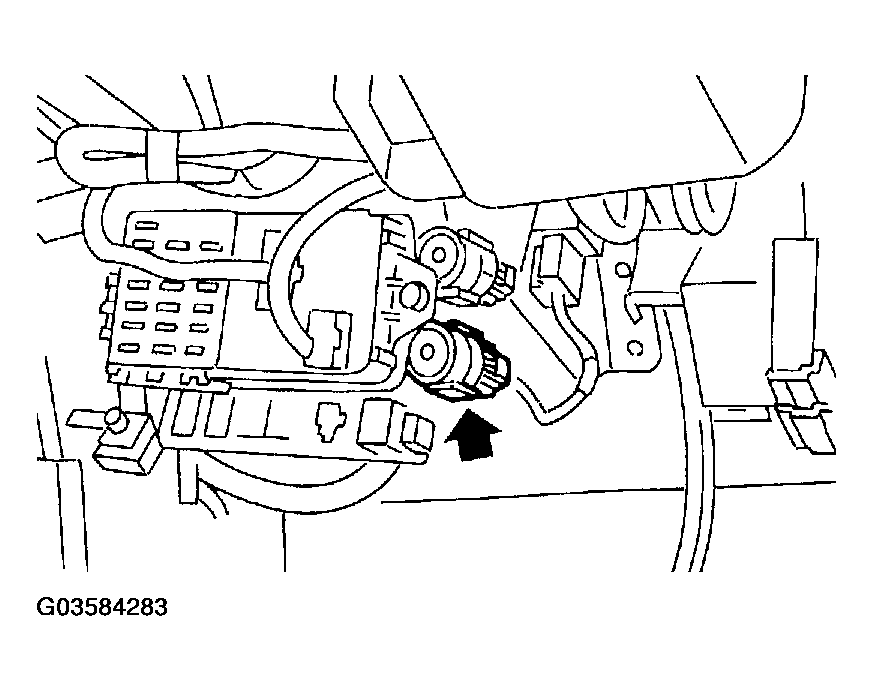

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G03584283Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fuel pump relay from mounting bracket.
