LH Side

Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, FUEL. >

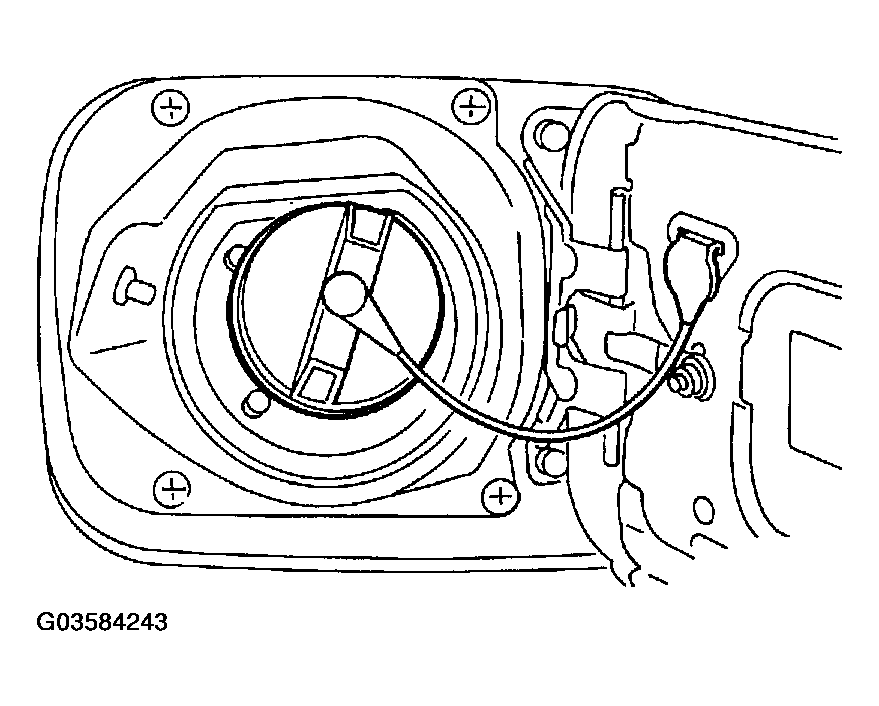

Open fuel flap lid, and remove fuel filler cap.

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.

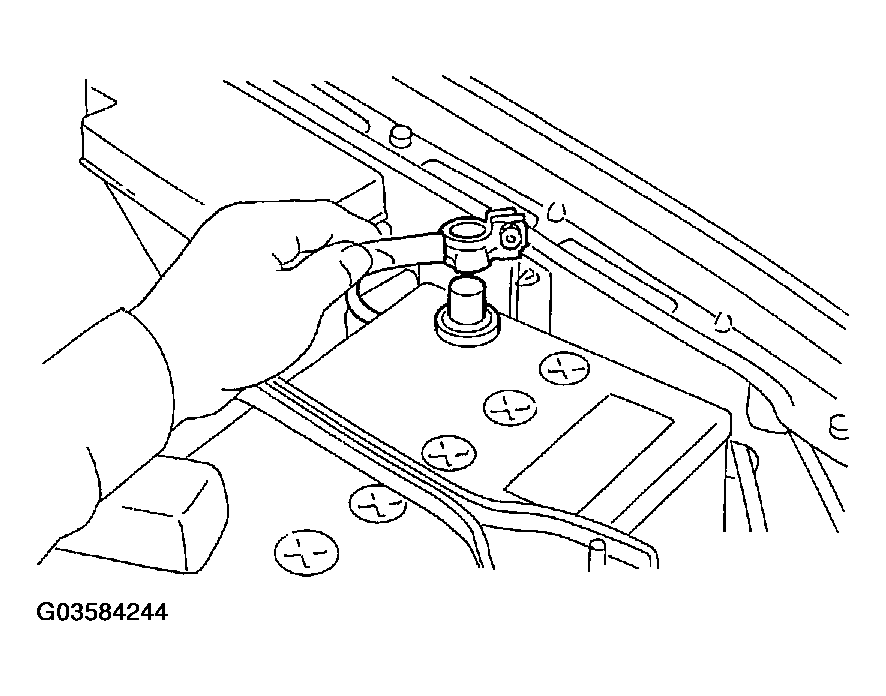

Disconnect battery ground cable.

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.

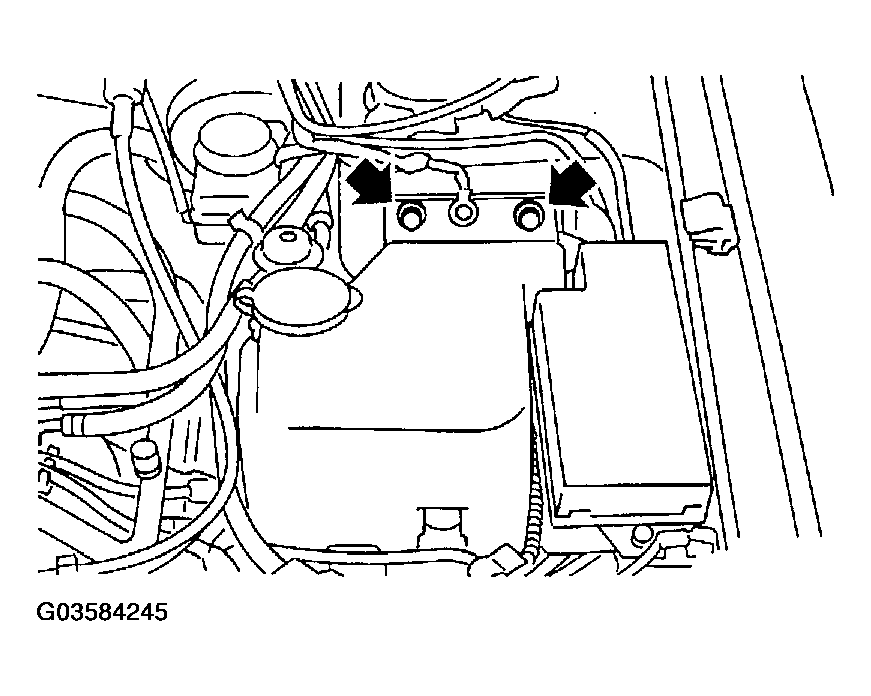

Remove two bolts which install washer tank on body.

Fig 3: Removing Bolts Which Install Washer Tank On Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from front window washer motor.

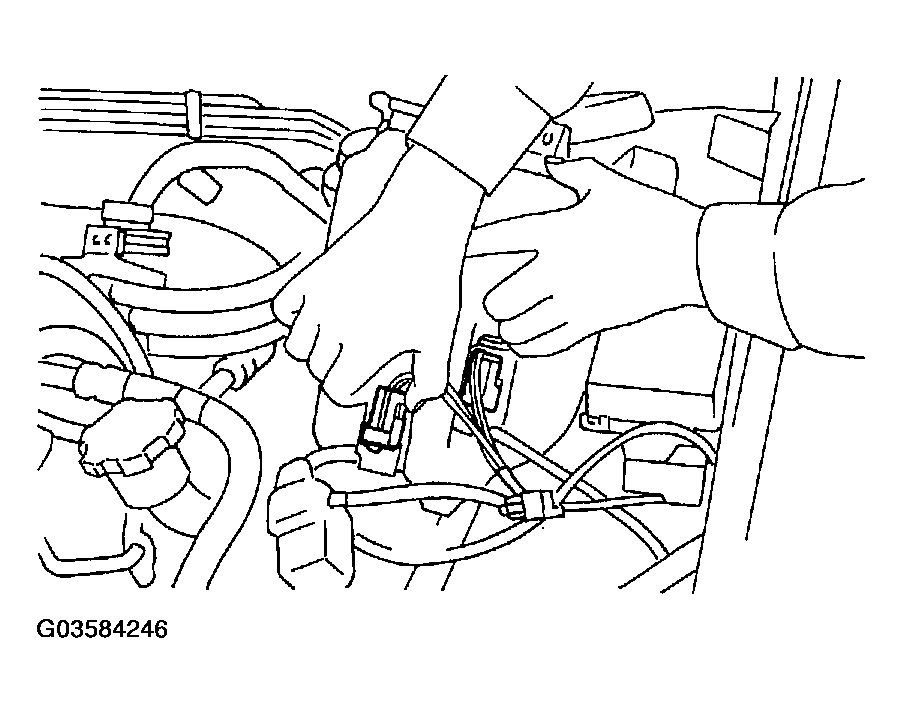

Disconnect connector from rear gate glass washer motor.

Fig 4: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.

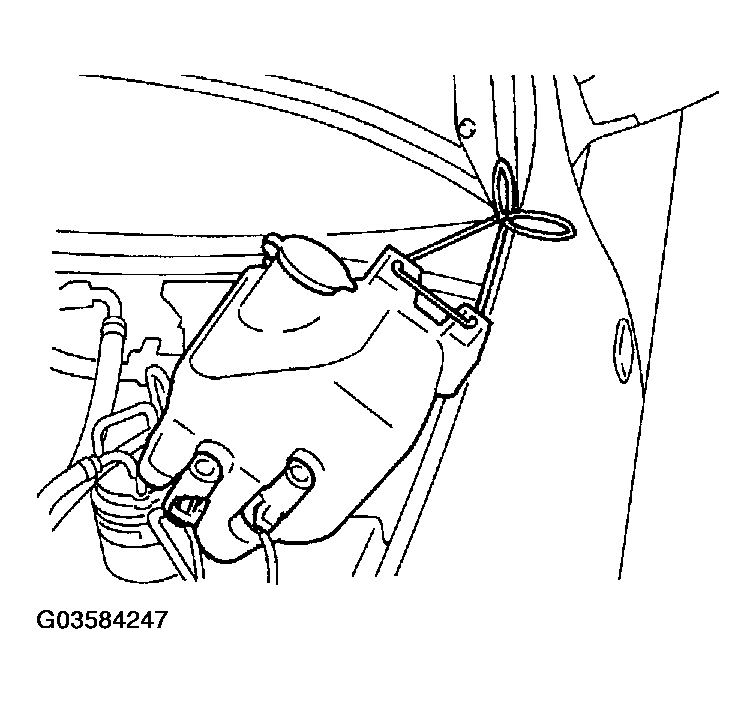

Move washer tank upward.

Fig 5: Moving Washer Tank Upward
Courtesy of SUBARU OF AMERICA, INC.

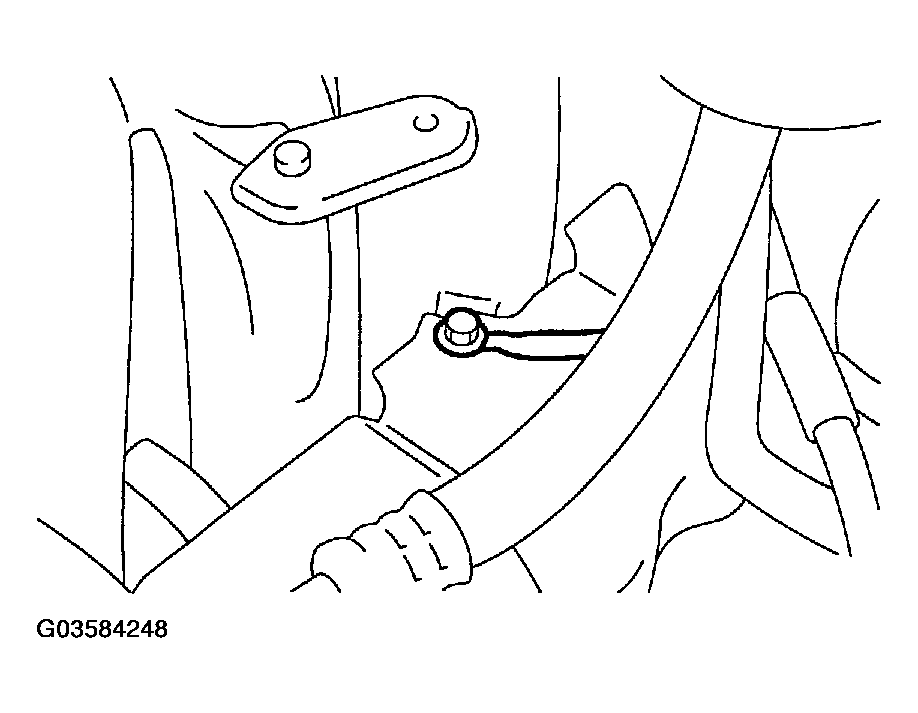

Remove ground cable from fuel pipe protector LH.

Fig 6: Removing Ground Cable From Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

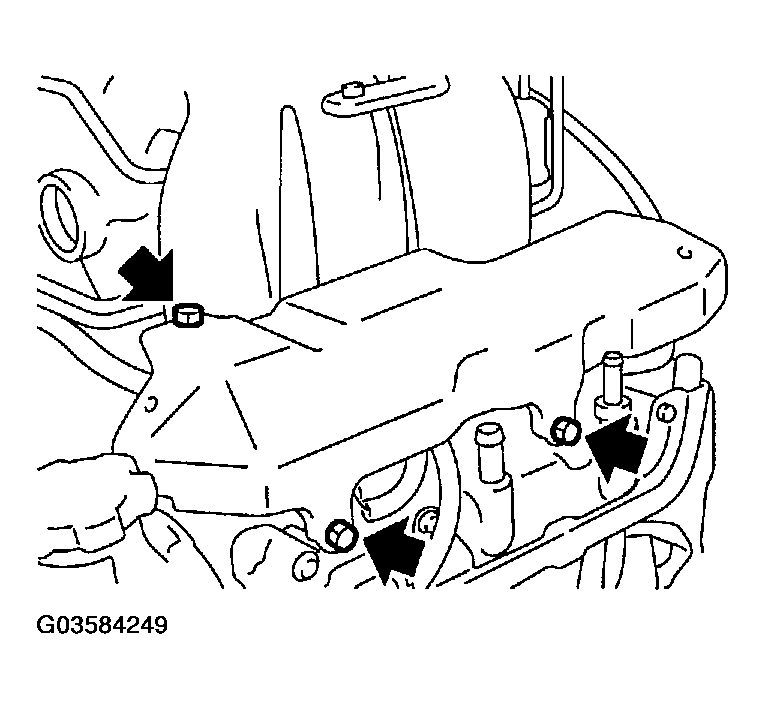

Remove fuel pipe protector LH.

Fig 7: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

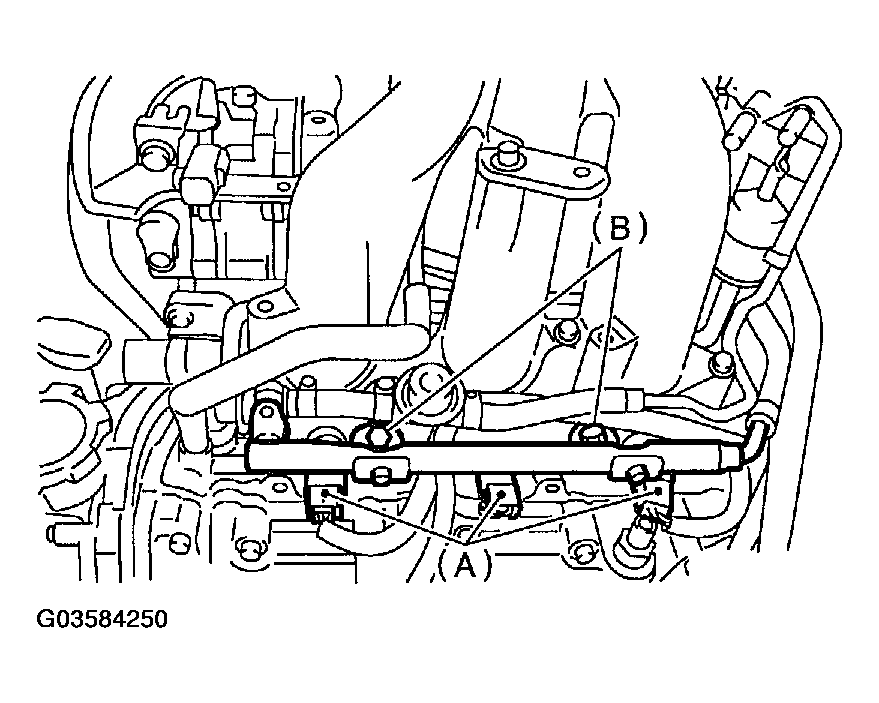

Disconnect connector (A) from fuel injector.
Remove bolt (B) which holds injector pipe onto cylinder head.

Fig 8: Disconnecting Connector (A) From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector while lifting up fuel injector pipe.
