Oil Pressure System: Schematic

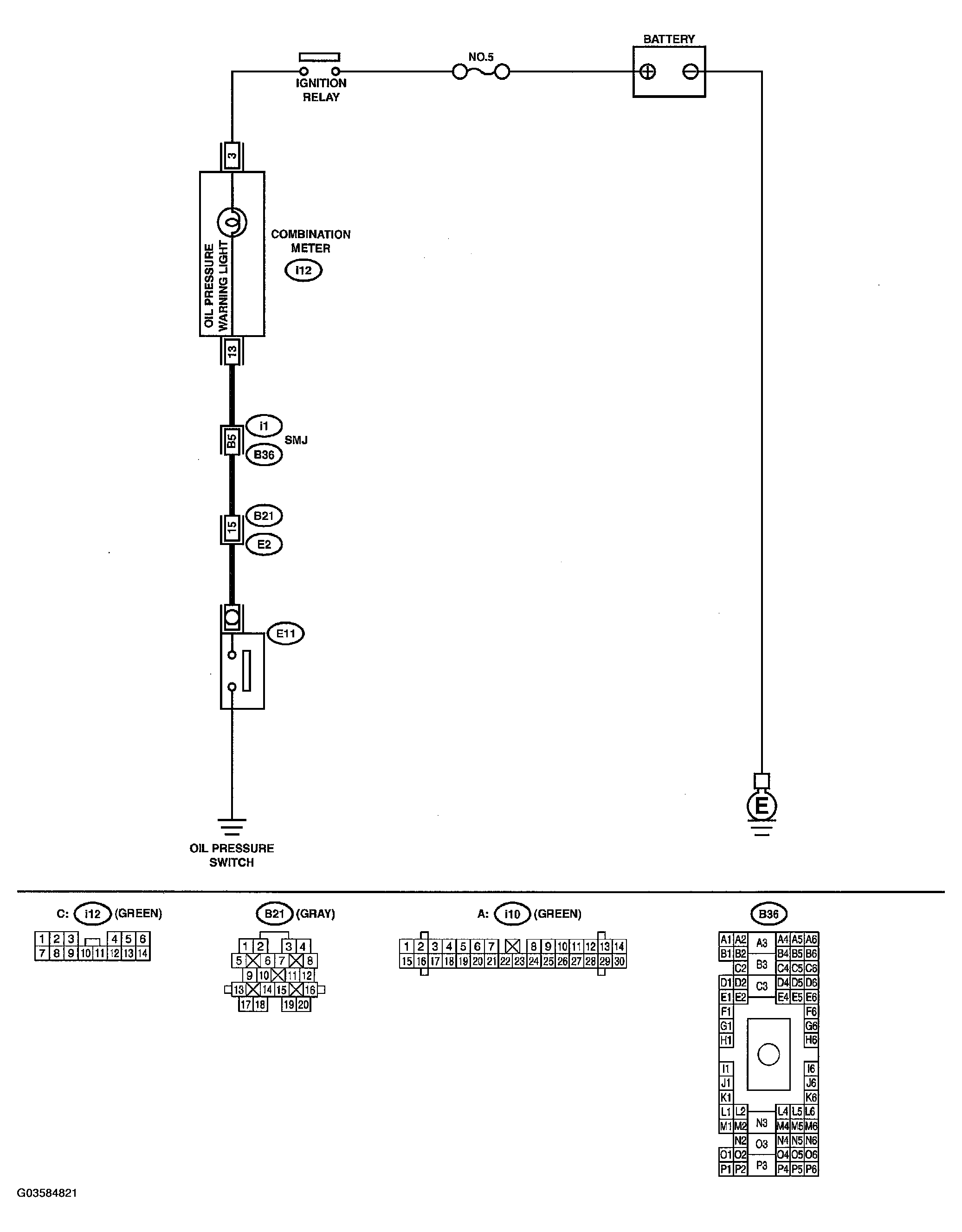

Fig 1: Oil Pressure System Schematic Wiring Diagram And Connector
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
