Wiring Diagram:

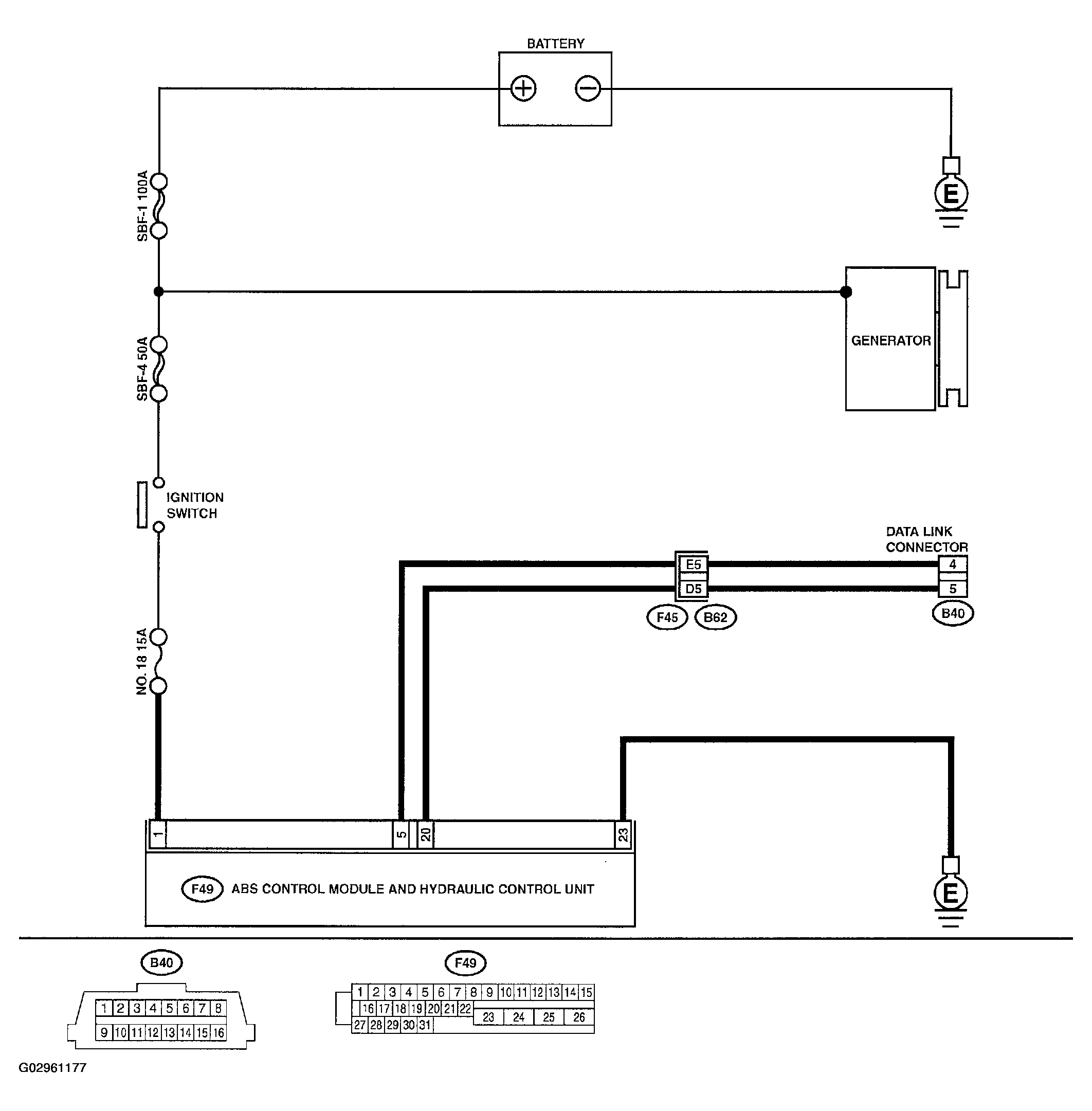

Fig 1: Communication For Initializing Impossible Wiring Diagram

G02961177

Courtesy of SUBARU OF AMERICA, INC.
