Remote Control Mirror Switch: Removal

  1. Remove power window main switch panel.

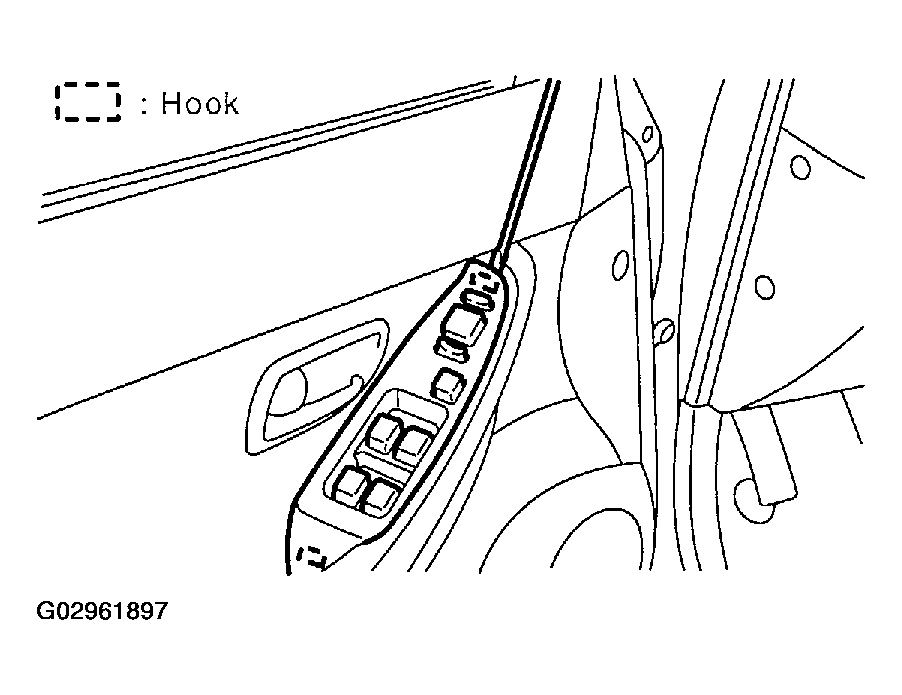

    Fig 1: Removing Power Window Main Switch Panel
    G02961897Courtesy of SUBARU OF AMERICA, INC.
  2. Remove four hook to remove remote control mirror switch.
Fig 2: Removing Four Hook To Removing Remote Control Mirror Switch
G02961898Courtesy of SUBARU OF AMERICA, INC.
