Home >> Subaru >> 2002 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass - Window - Mirrors >> Power Window System >> Inspection

Power Window System: Inspection

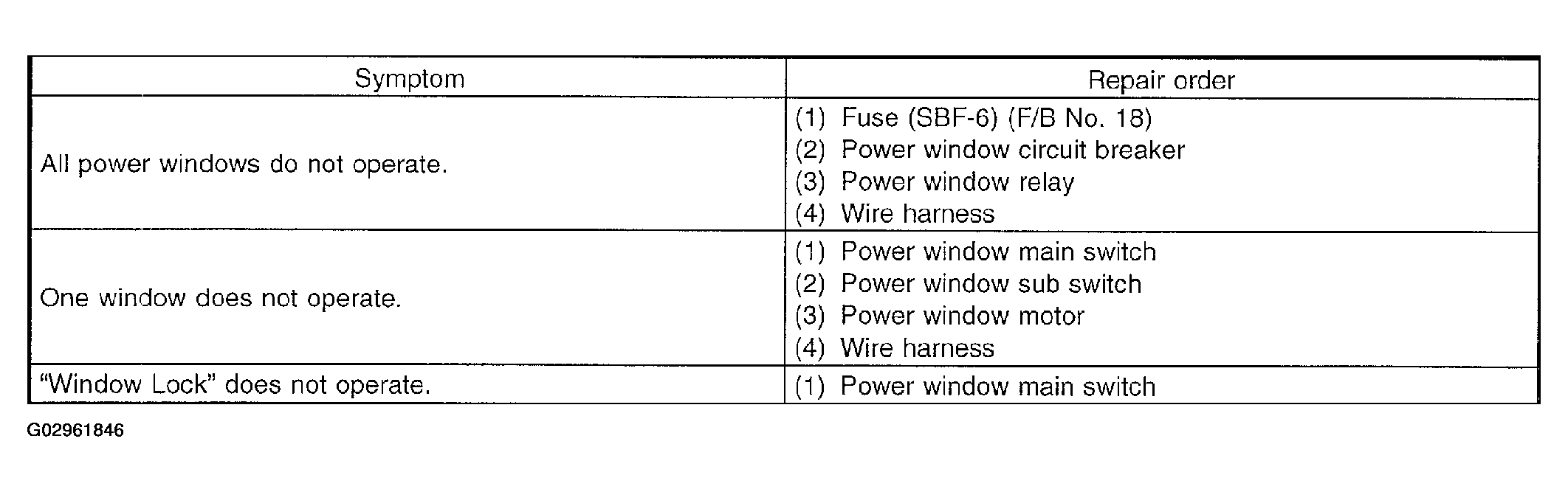

Fig 1: Power Window System Inspection Table

G02961846

Courtesy of SUBARU OF AMERICA, INC.
