Trunk Lid Lock Assembly: Removal

  1. Remove the trunk lid key cylinder rod.
  2. Remove the lock assembly cover (A).
  3. Remove the nut while holding the lock assembly. Remove the lock assembly (B).

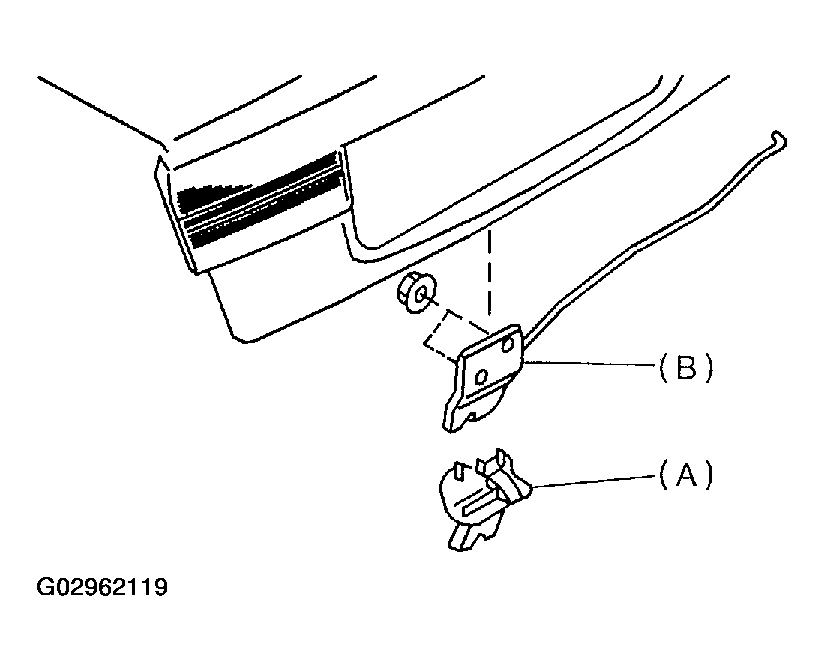

Fig 1: Removing Lock Assembly Cover
G02962119Courtesy of SUBARU OF AMERICA, INC.
