Check Security Indicator Light Circuit

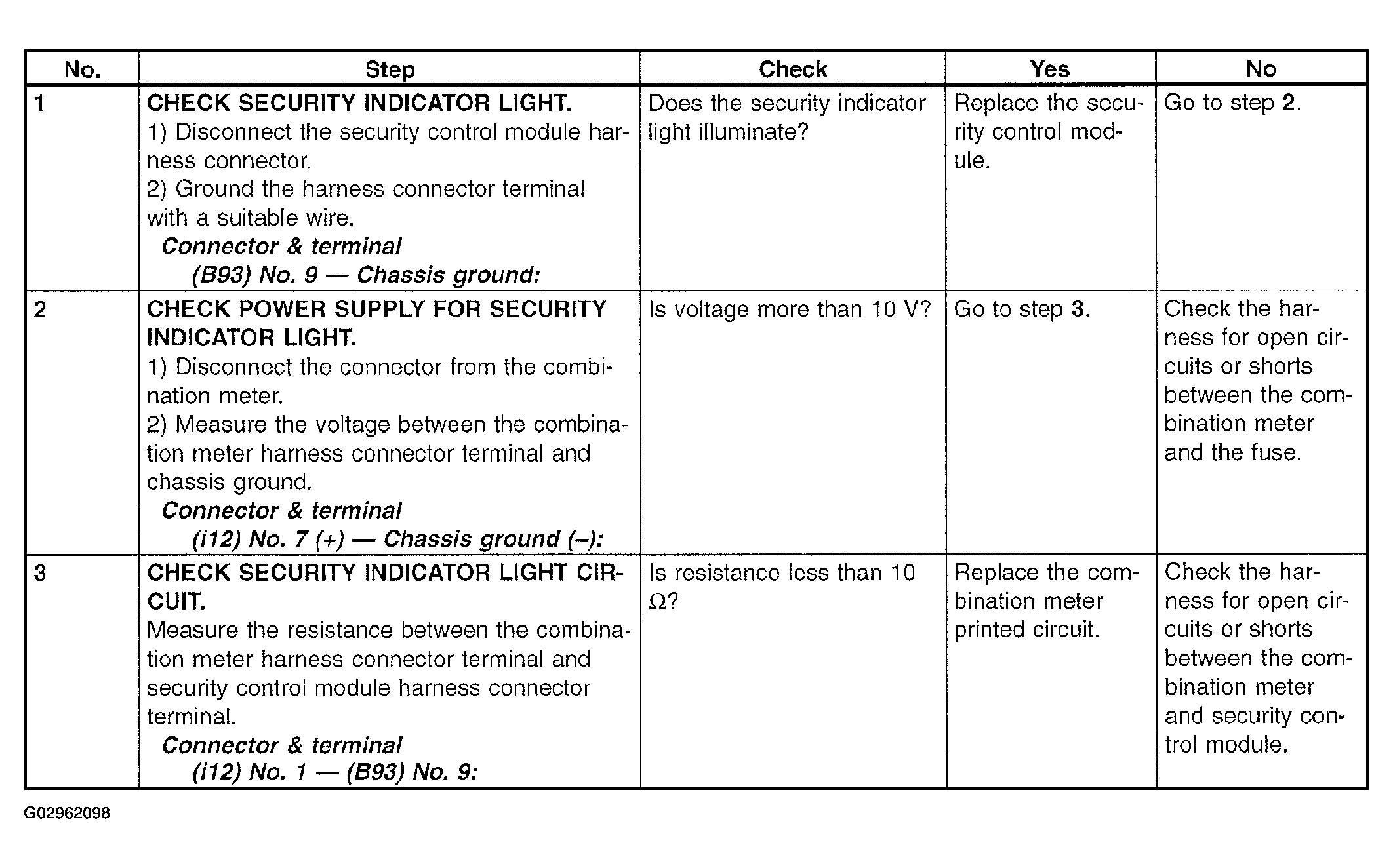

Fig 1: Checking Security Indicator Light Chart

G02962098

Courtesy of SUBARU OF AMERICA, INC.
