Home >> Subaru >> 2002 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security & Locks >> Security System >> Inspection >> Check Security Horn

Check Security Horn

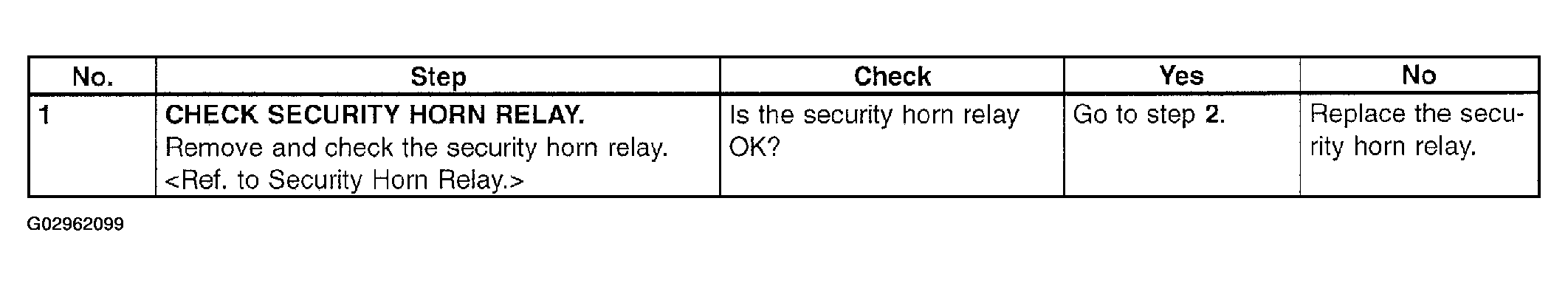

Fig 1: Checking Security Horn Chart (1 Of 2)

G02962099

Courtesy of SUBARU OF AMERICA, INC.

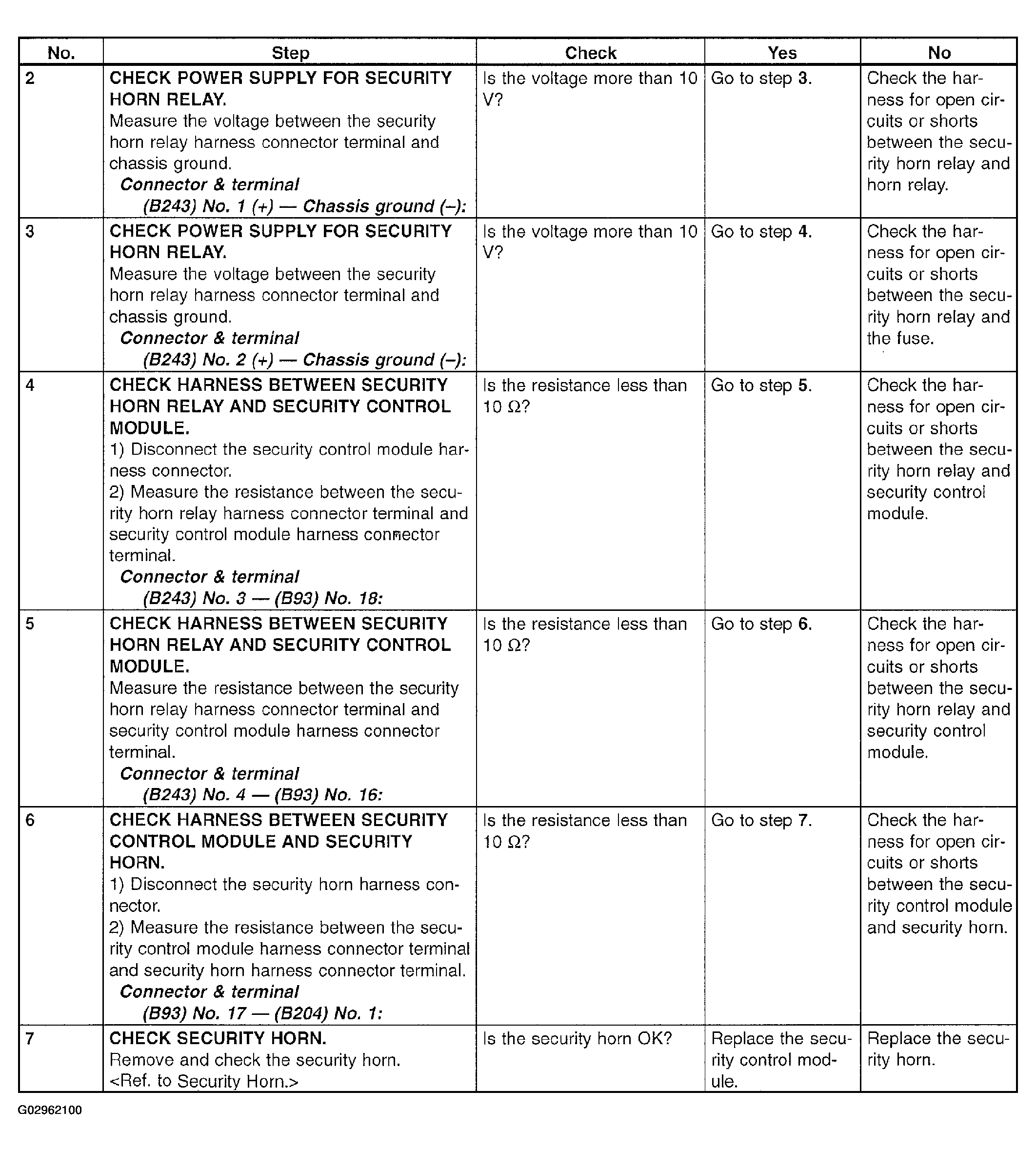

Fig 2: Checking Security Horn Chart (2 Of 2)

G02962100

Courtesy of SUBARU OF AMERICA, INC.
