Check Ignition Switch Circuit

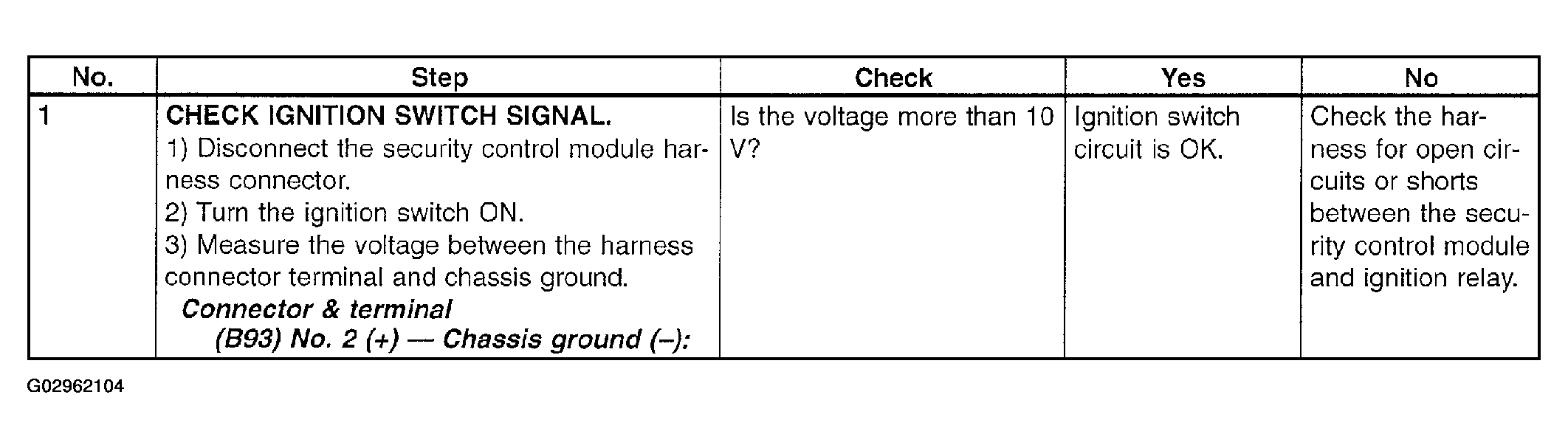

Fig 1: Checking Ignition Switch Circuit Chart

G02962104

Courtesy of SUBARU OF AMERICA, INC.
