Inspection
>>
Check Door Switch
Check Door Switch

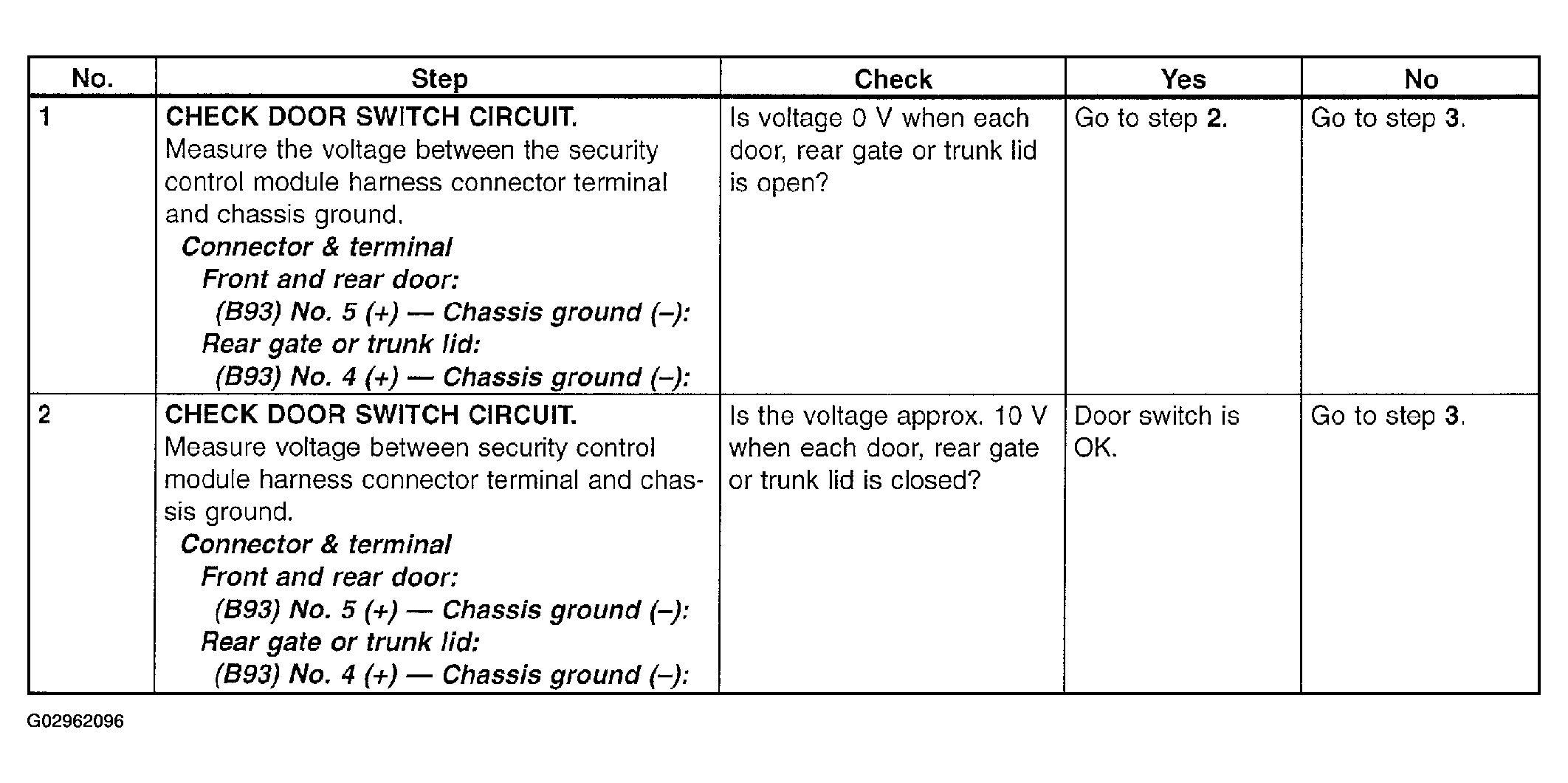

Fig 1: Checking Door Switch Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

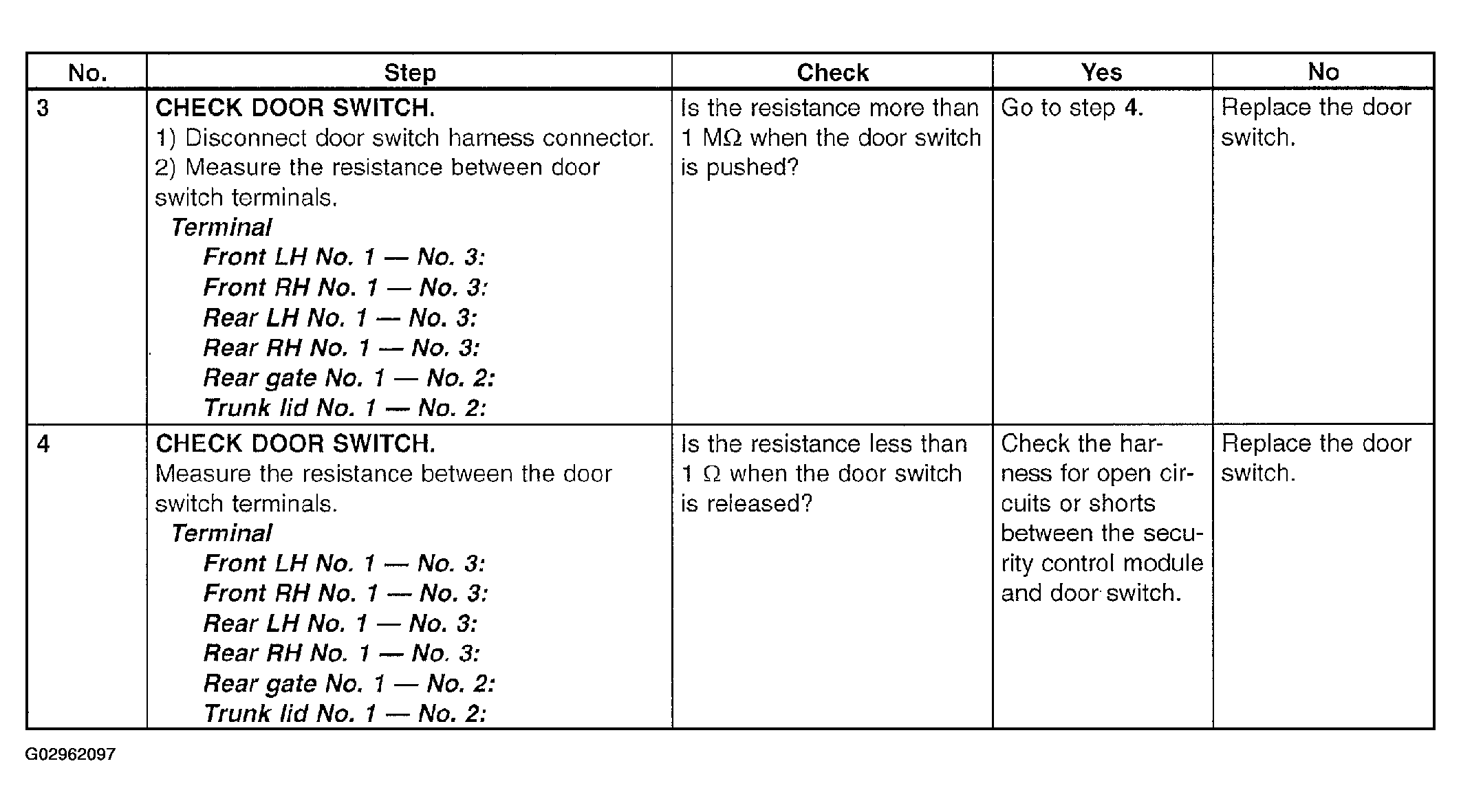

Fig 2: Checking Door Switch Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
