Check Clearance Light Operation
Check Clearance Light Operation

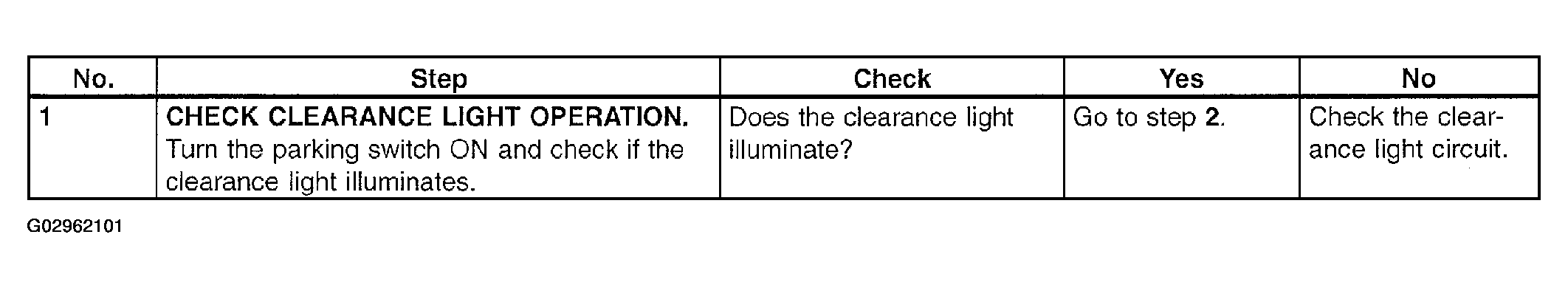

Fig 1: Checking Clearance Light Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Checking Clearance Light Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
