Rear Gate

  1. Remove the rear gate lower trim. Refer to REMOVAL , Rear Gate Trim.
  2. Remove the rod clamp. Remove the nut. Replace the key cylinder.

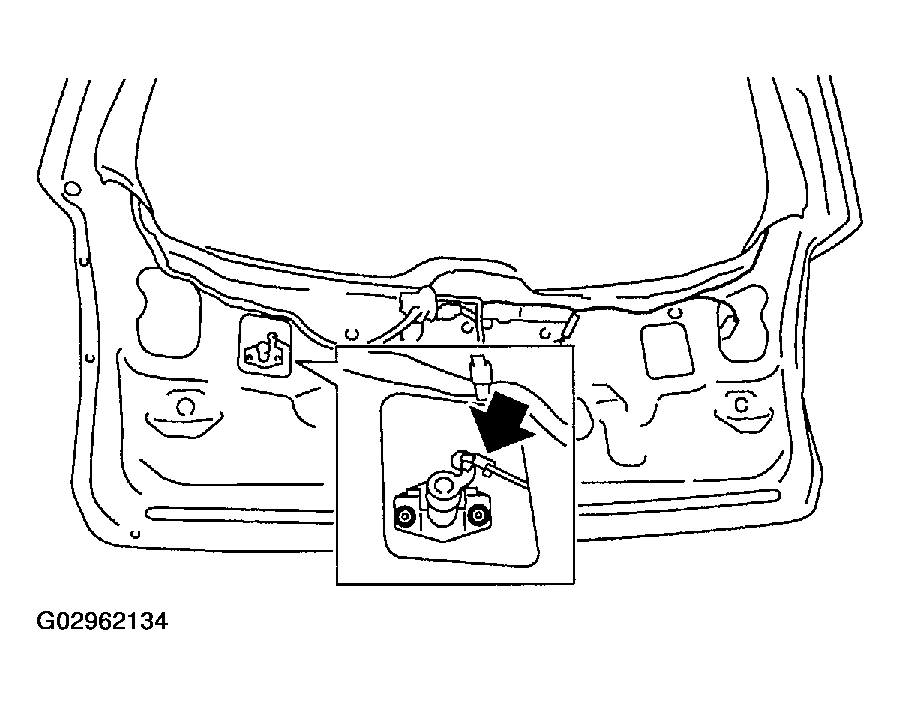

Fig 1: Removing Rear Gate Lower Trim
G02962134Courtesy of SUBARU OF AMERICA, INC.
