Front Door

  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
  2. Pull back the sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove the rod clamp. Remove the bolt. Replace the key cylinder.

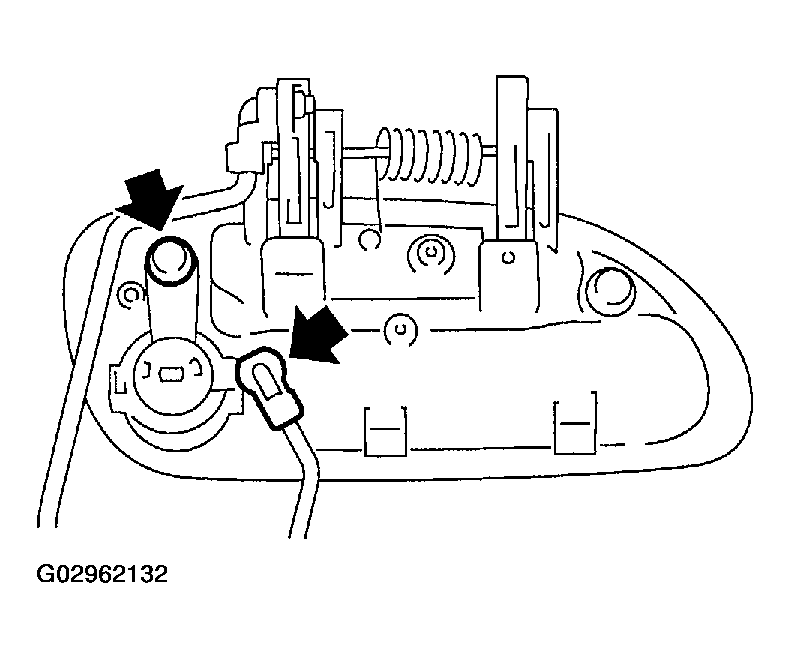

Fig 1: Removing Rod Clamp
G02962132Courtesy of SUBARU OF AMERICA, INC.
