Interrupt Relay: Removal

  1. Disconnect ground cable from battery.
  2. Remove the mounting nuts and detach the interrupt relay (near the fuse box).

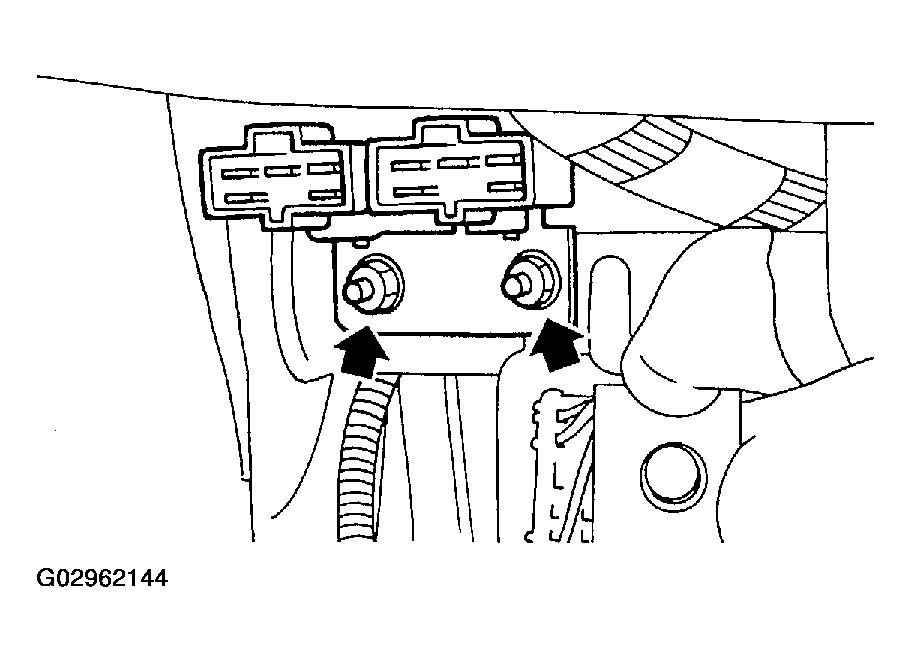

Fig 1: Removing Mounting Nuts
G02962144Courtesy of SUBARU OF AMERICA, INC.
