Door Lock Assembly

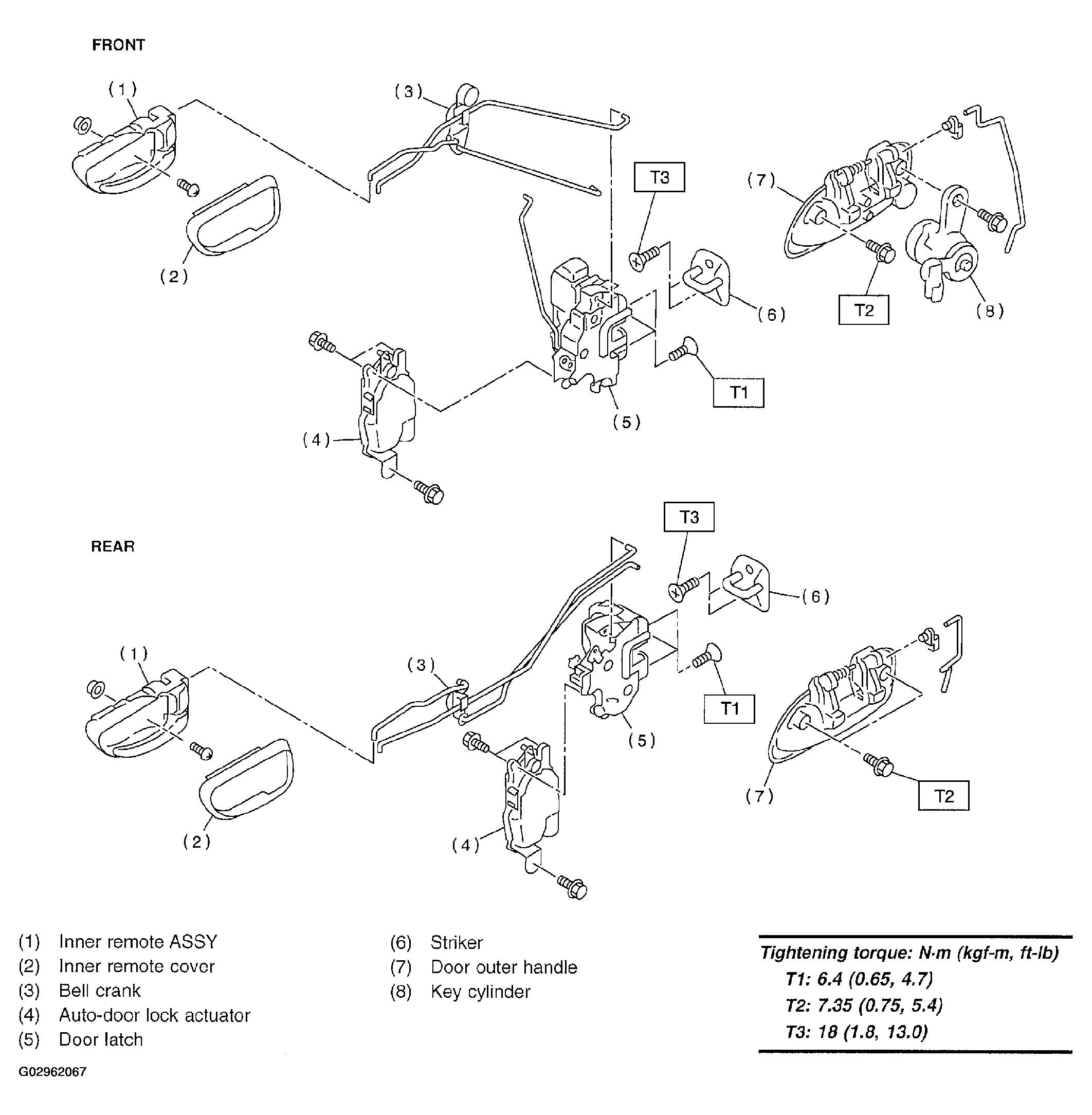

Fig 1: Identifying Door Lock Assembly Component

G02962067

Courtesy of SUBARU OF AMERICA, INC.
