Front Inner Remote: Removal

  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove the sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove the two rod joints.
  4. Remove the front inner remote.

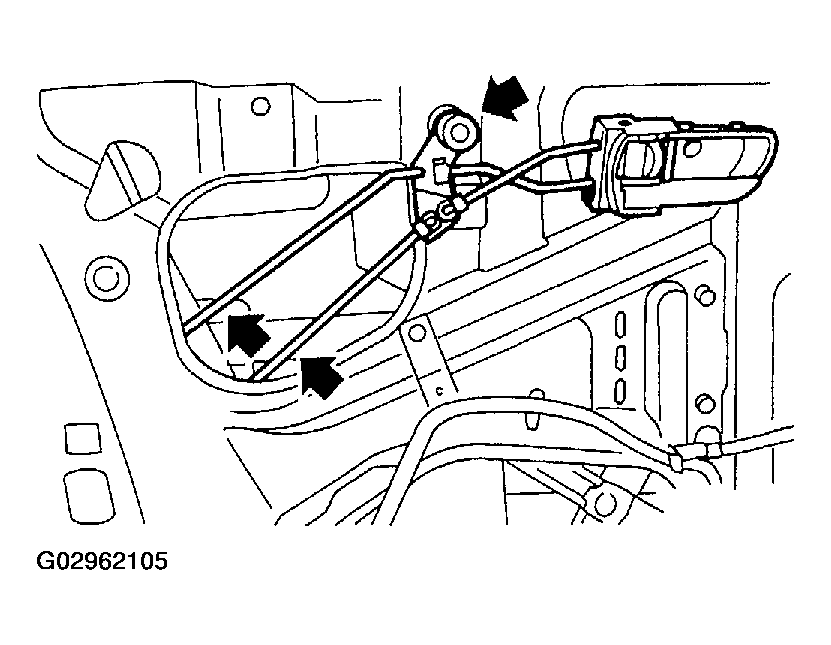

Fig 1: Removing Front Inner Remote
G02962105Courtesy of SUBARU OF AMERICA, INC.
