Check Engine Control Module

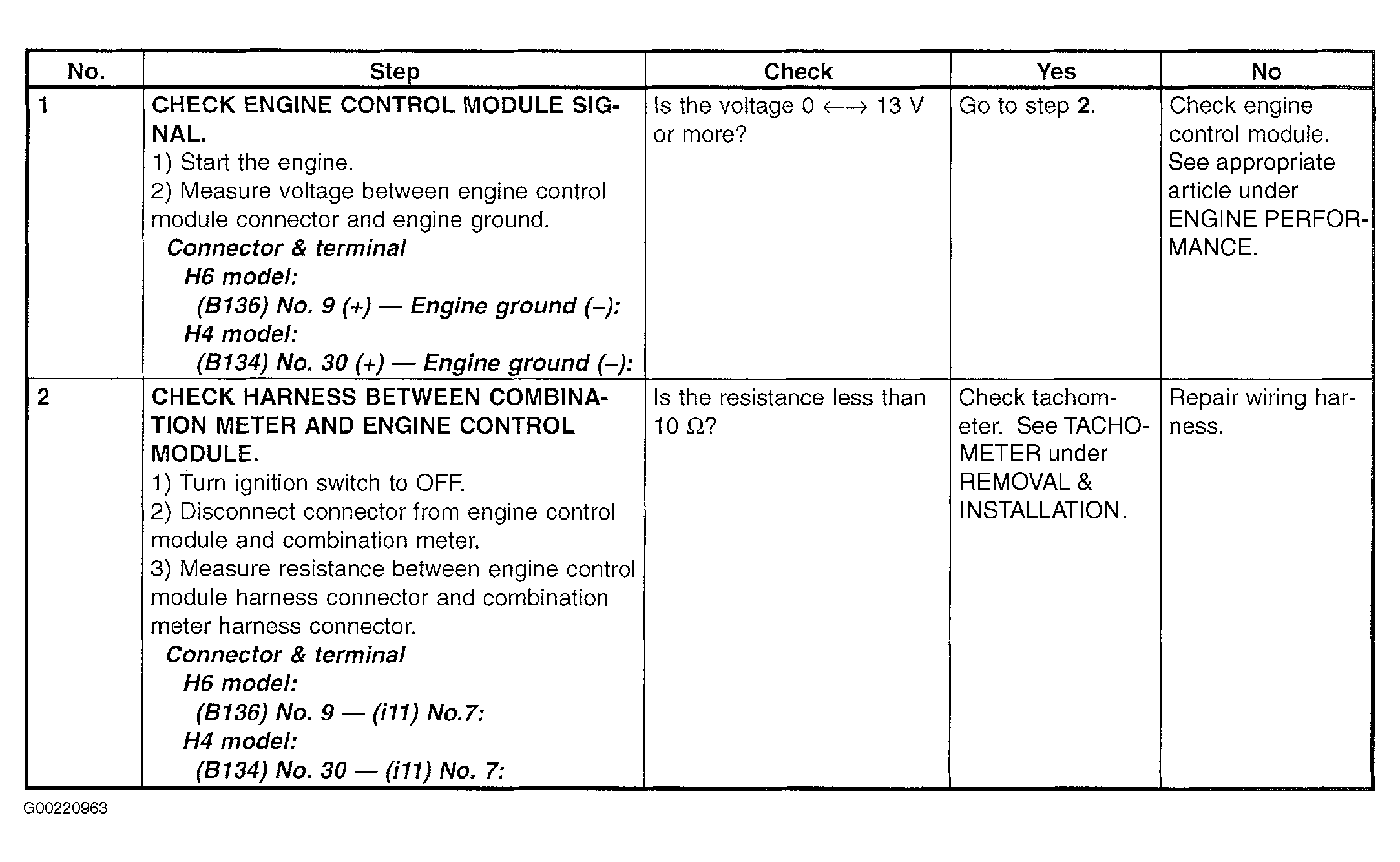

Fig 1: Testing Engine Control Module
G00220963Courtesy of SUBARU OF AMERICA, INC.
