Crankshaft Position Sensor: Removal

  1. Disconnect battery ground cable.

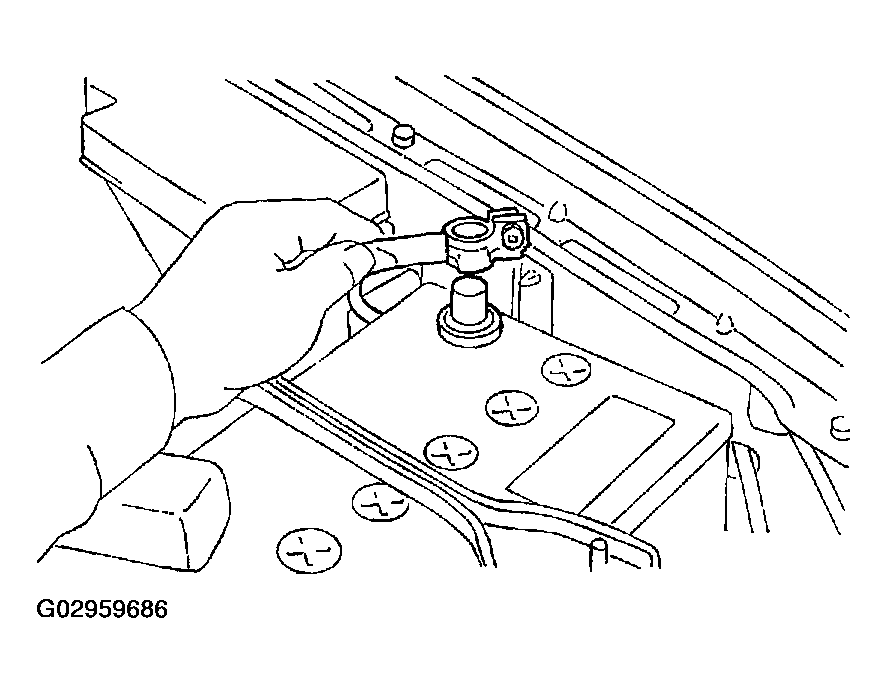

    Fig 1: Disconnecting Battery Ground Cable
    G02959686Courtesy of SUBARU OF AMERICA, INC.
  2. Remove bolt which installs crankshaft position sensor to cylinder block.

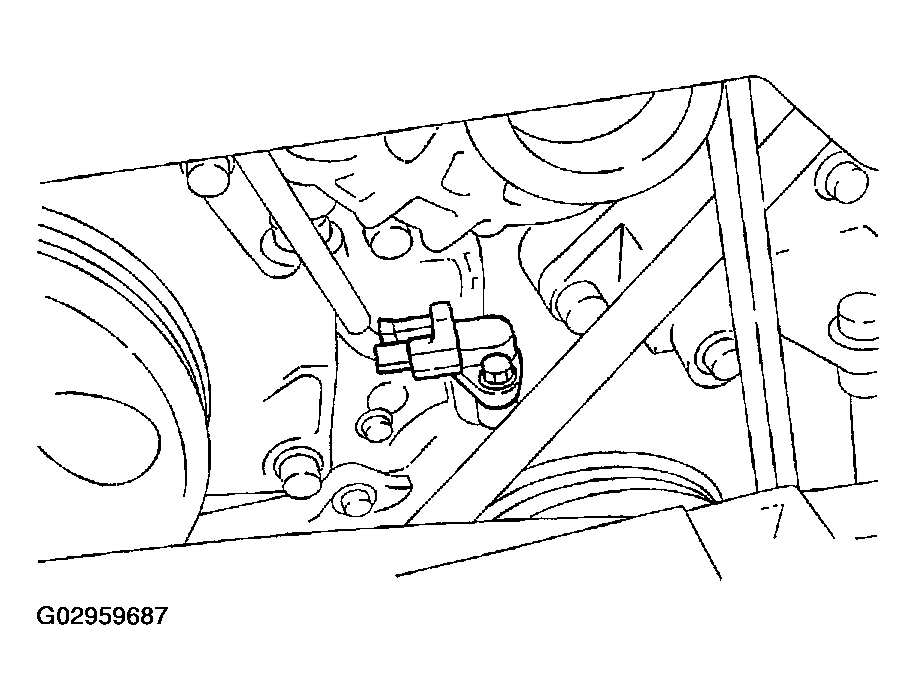

    Fig 2: Removing Crankshaft Position Sensor Bolt
    G02959687Courtesy of SUBARU OF AMERICA, INC.
  3. Remove crankshaft position sensor, and disconnect connector from it.

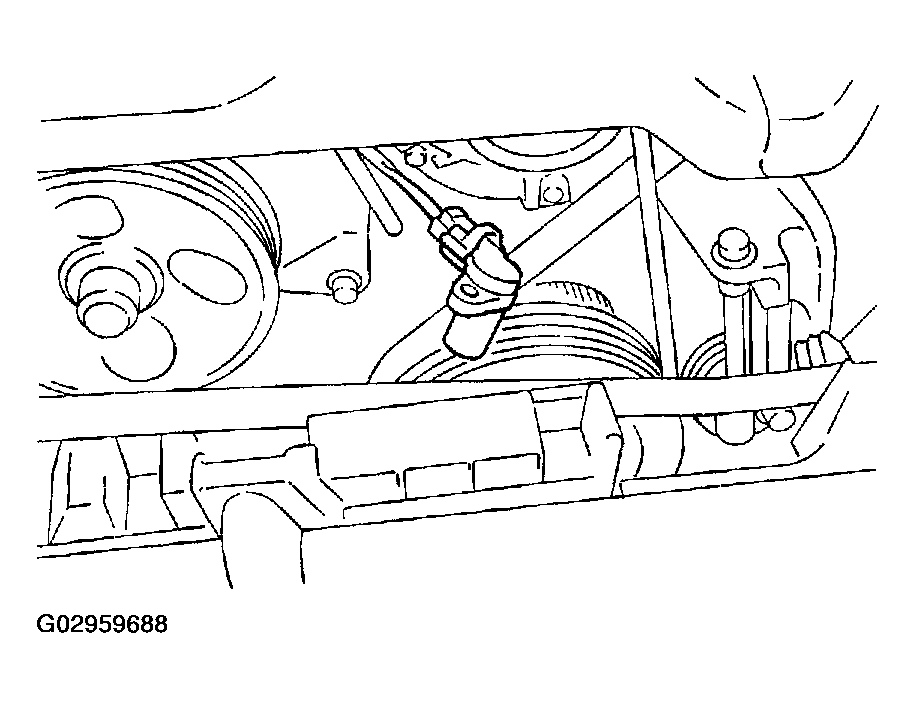

Fig 3: Removing Crankshaft Position Sensor
G02959688Courtesy of SUBARU OF AMERICA, INC.
