Diagnostic Procedure

For diagnosis, see Fig 1 and Fig 2 .

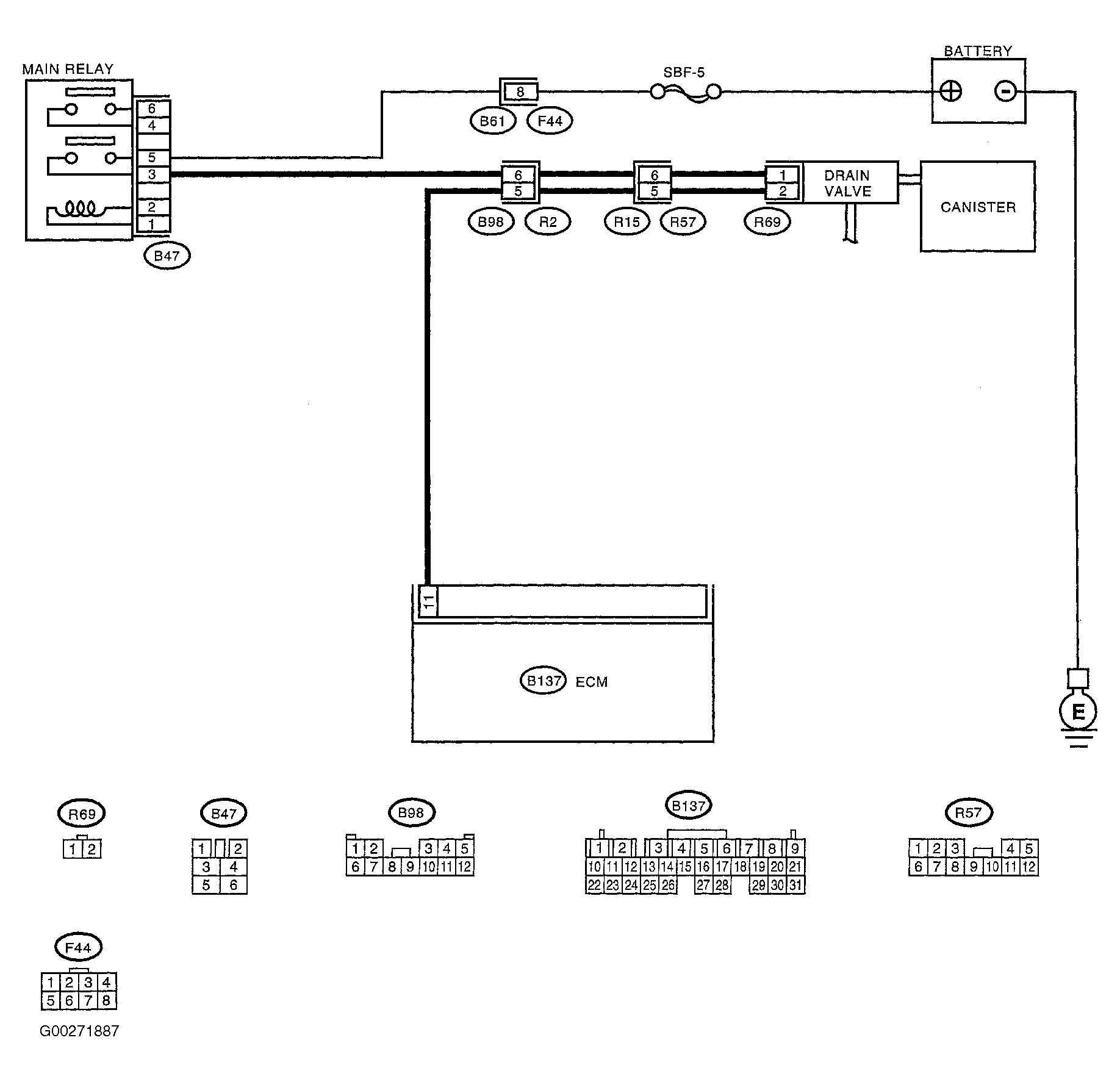

Fig 1: Vent Control Circuit Identification
G00271887Courtesy of SUBARU OF AMERICA, INC.
Fig 2: DTC P1443 Diagnostic Procedure
G00242225Courtesy of SUBARU OF AMERICA, INC.
