Engine Controls - Self-Diagnostics - 2.0L
>>
Diagnostic Tests
>>
DTC P1134: Front Ho2S Micro-Computer Problem
>>
Diagnostic Procedure
Diagnostic Procedure

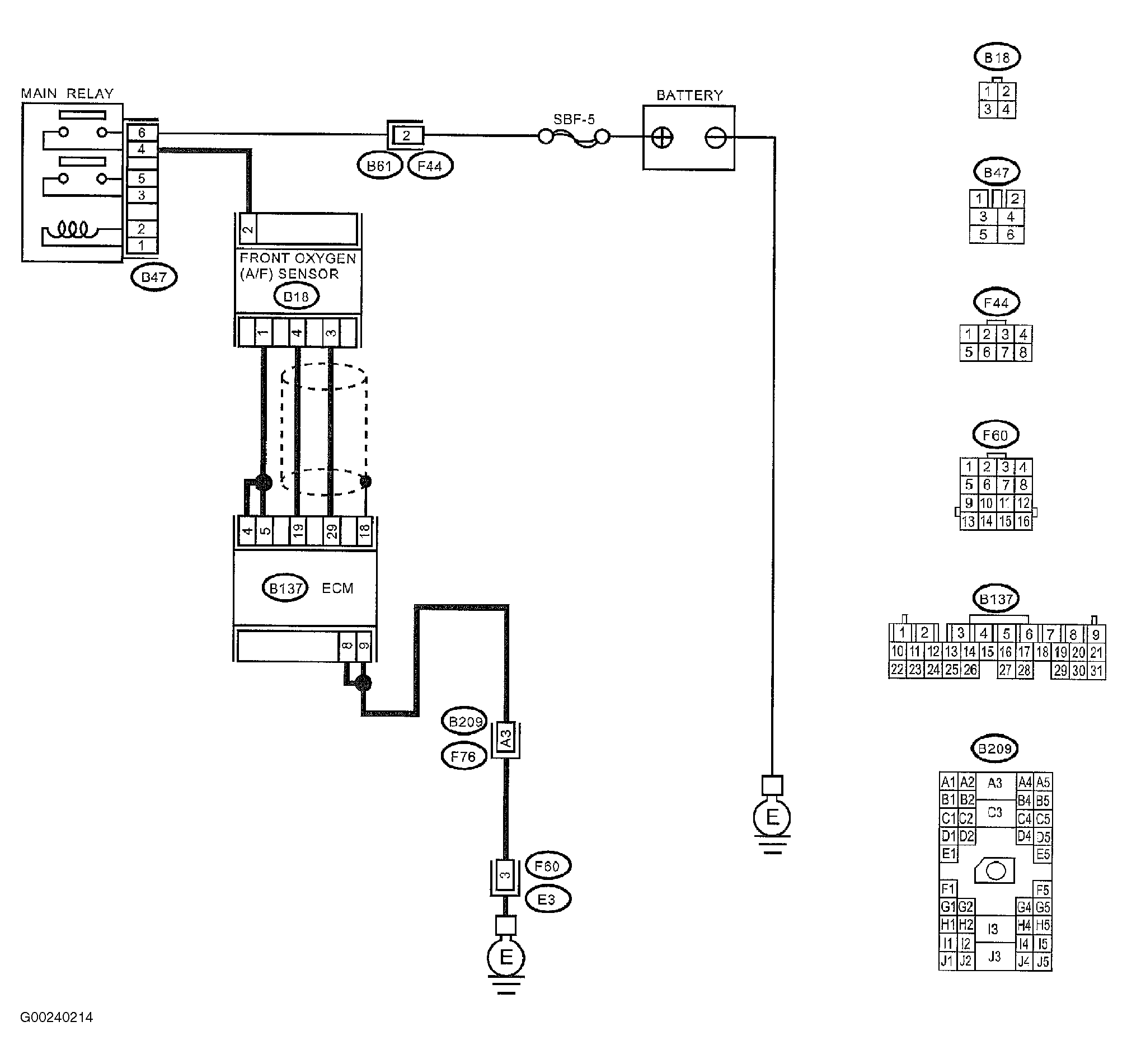

For diagnosis, see
Figure
and
Fig 1
.

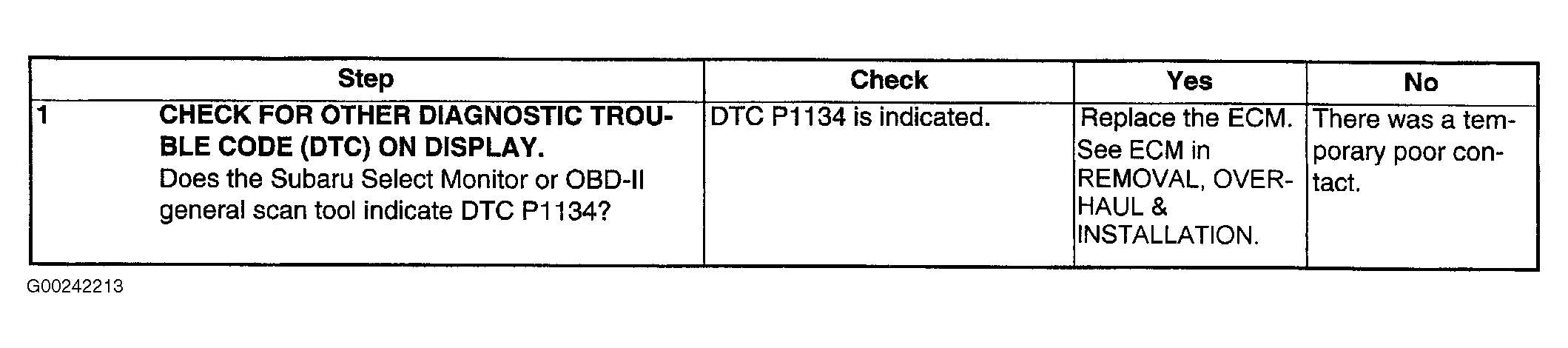

Fig 1: DTC P1134 Diagnostic Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
