Diagnostic Procedure

For diagnosis, see Fig 1 and Fig 2 .

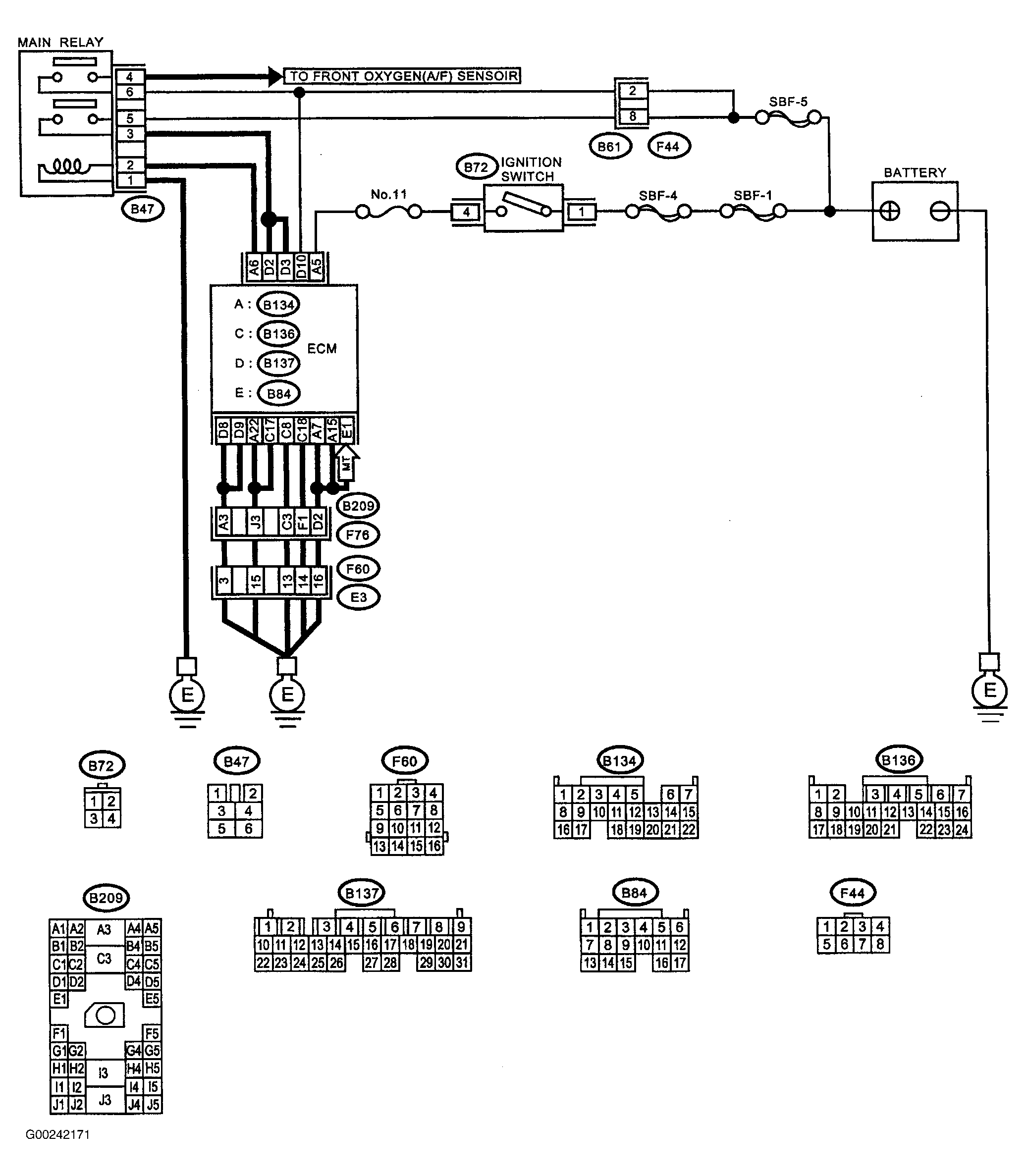

Fig 1: ECM Circuit Identification

G00242171

Courtesy of SUBARU OF AMERICA, INC.

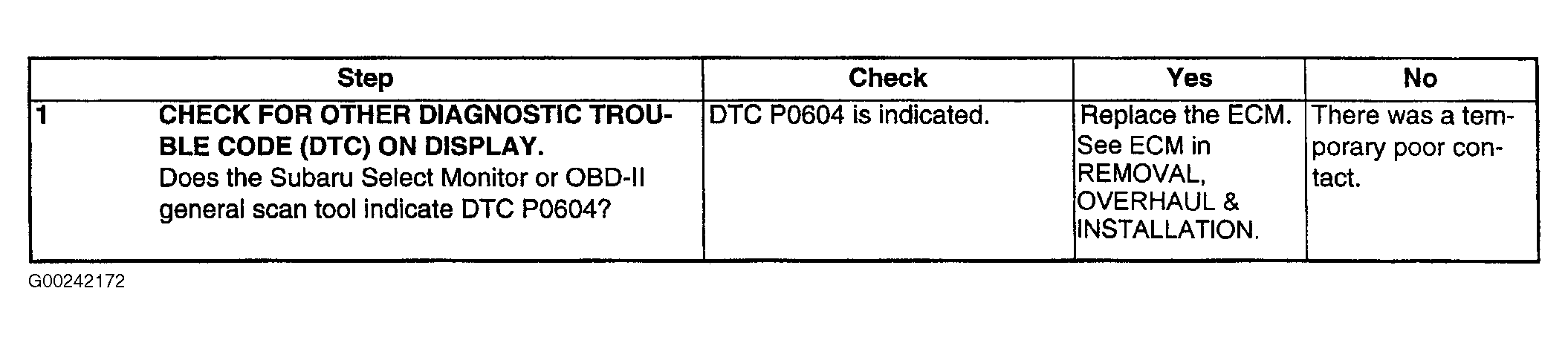

Fig 2: DTC P0604 Diagnostic Procedure

G00242172

Courtesy of SUBARU OF AMERICA, INC.
