Component Locations

Fig 1: Engine Compartment Sensor Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

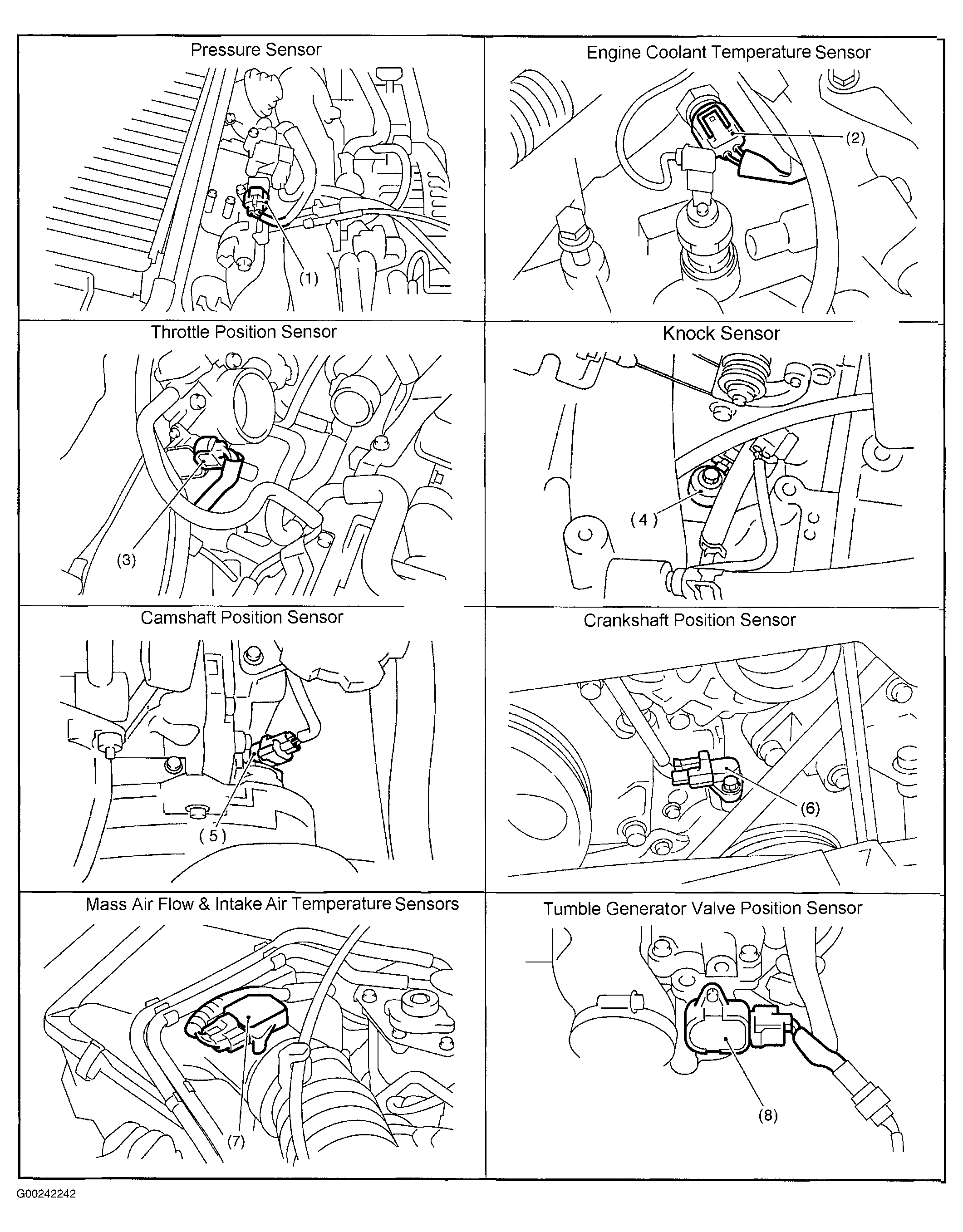

Fig 2: Engine Compartment Sensor Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

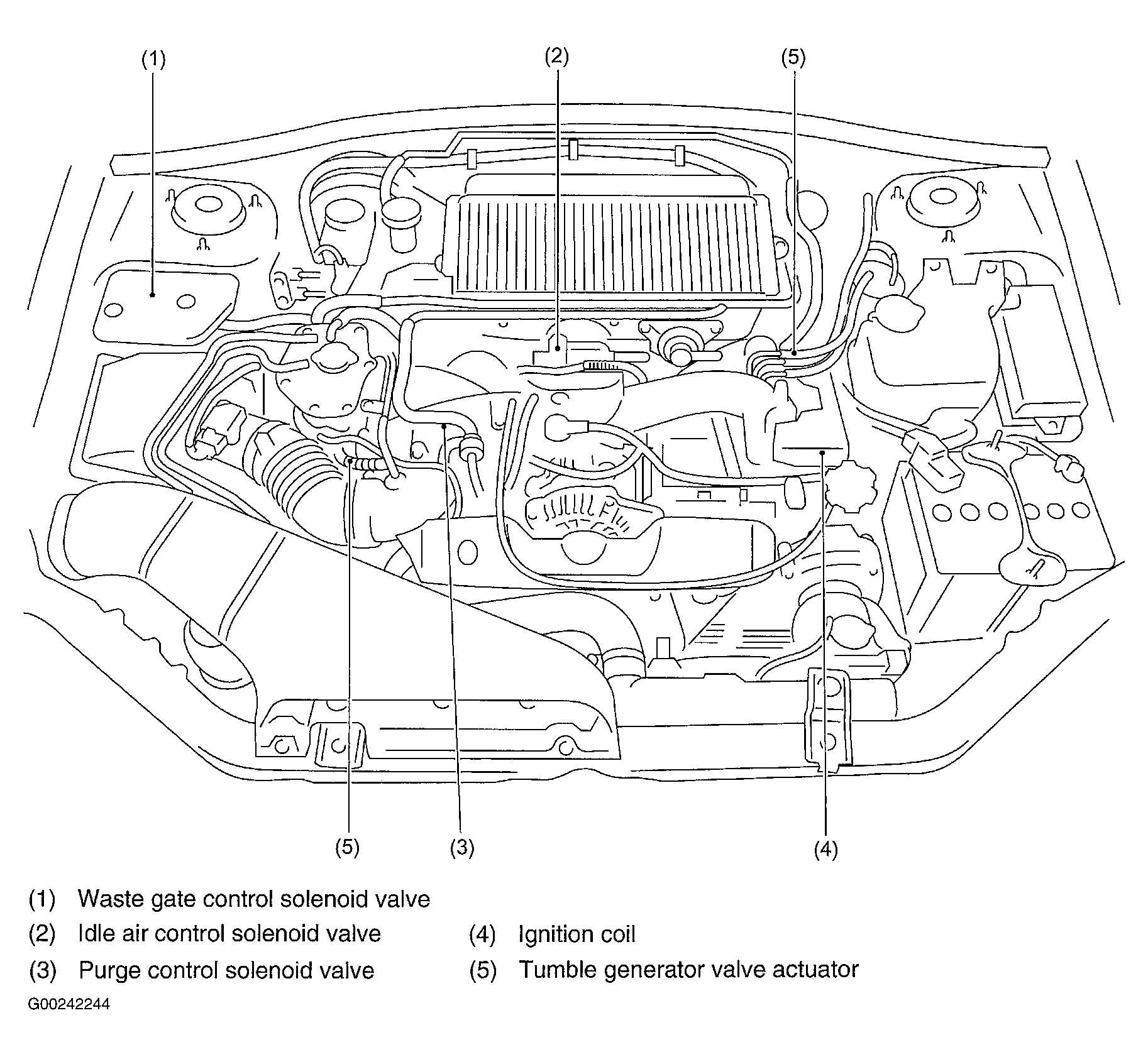

Fig 3: Engine Compartment Solenoid Valves, Actuators & Coils Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

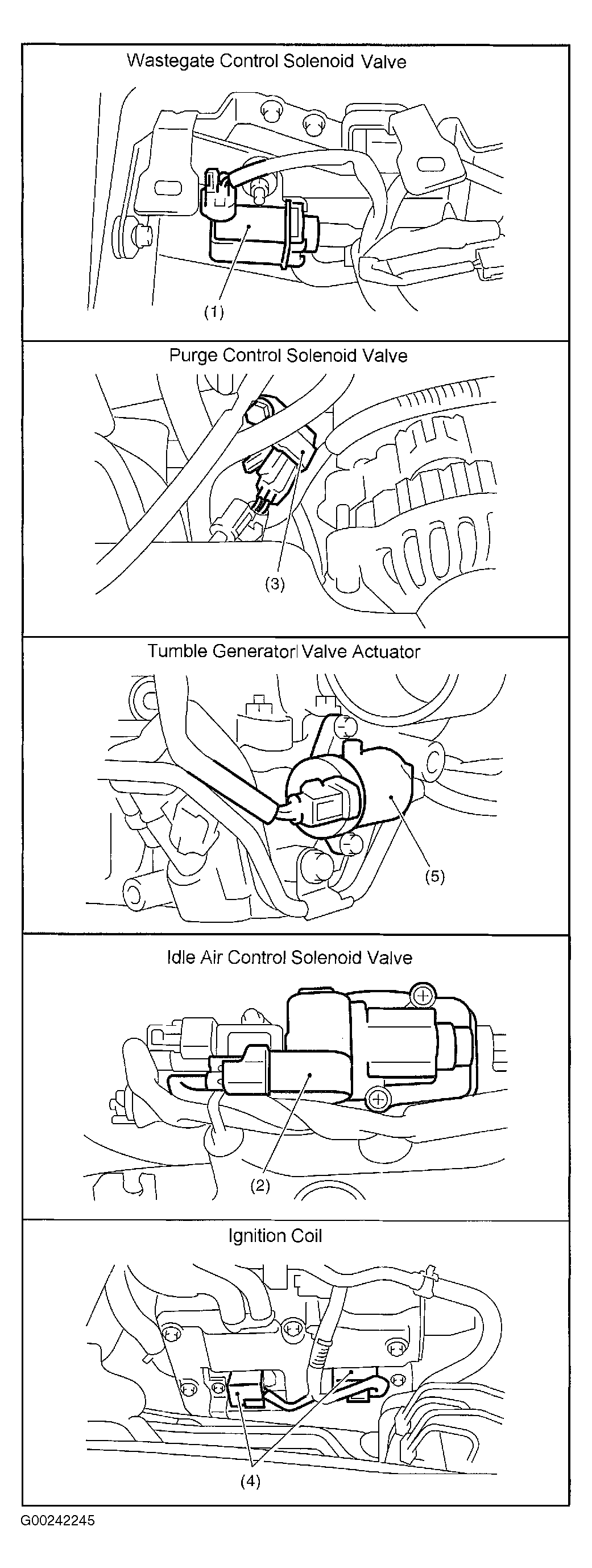

Fig 4: Engine Compartment Solenoid Valves, Actuators & Coils Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

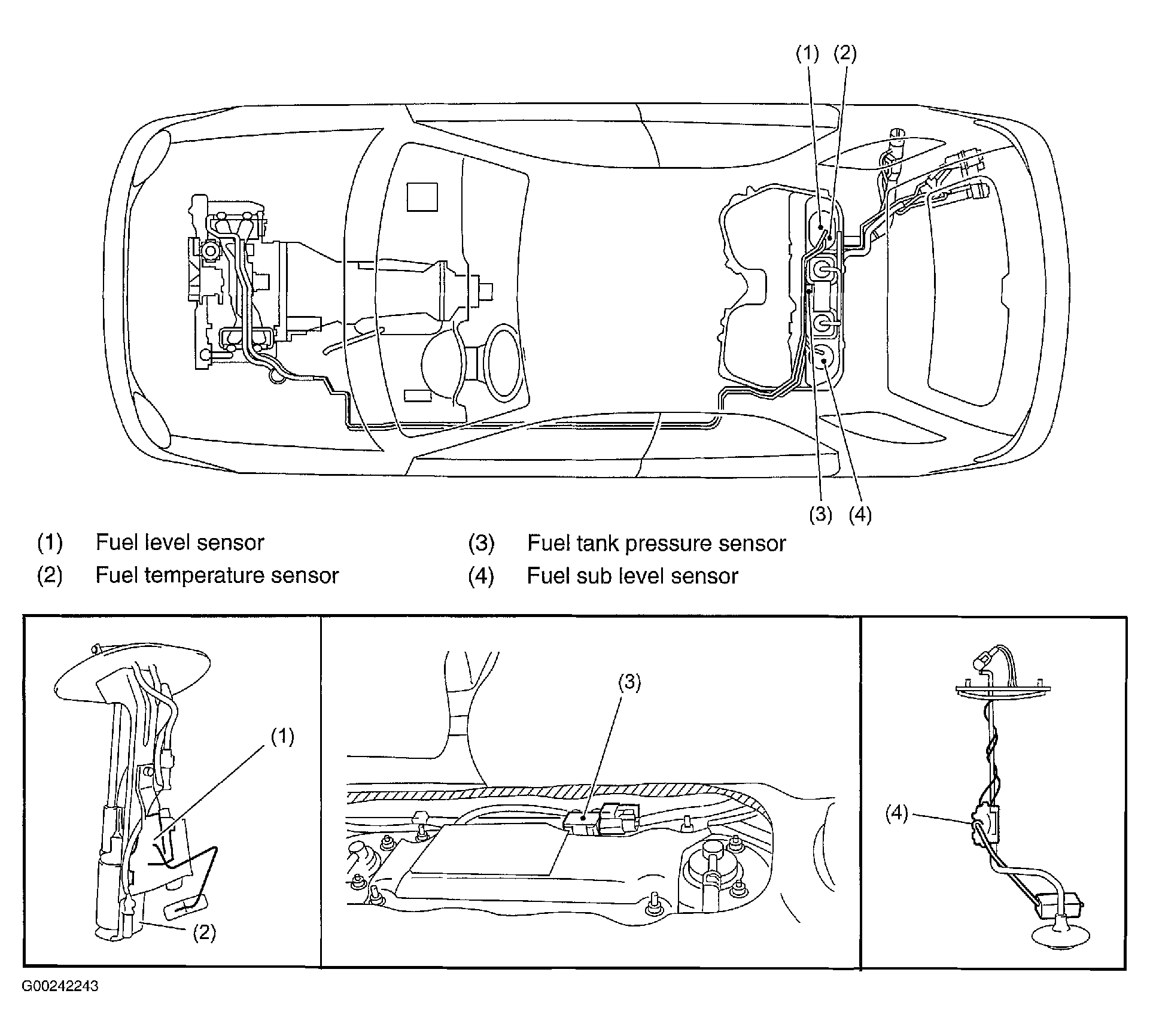

Fig 5: Fuel System Sensor Location

Courtesy of SUBARU OF AMERICA, INC.

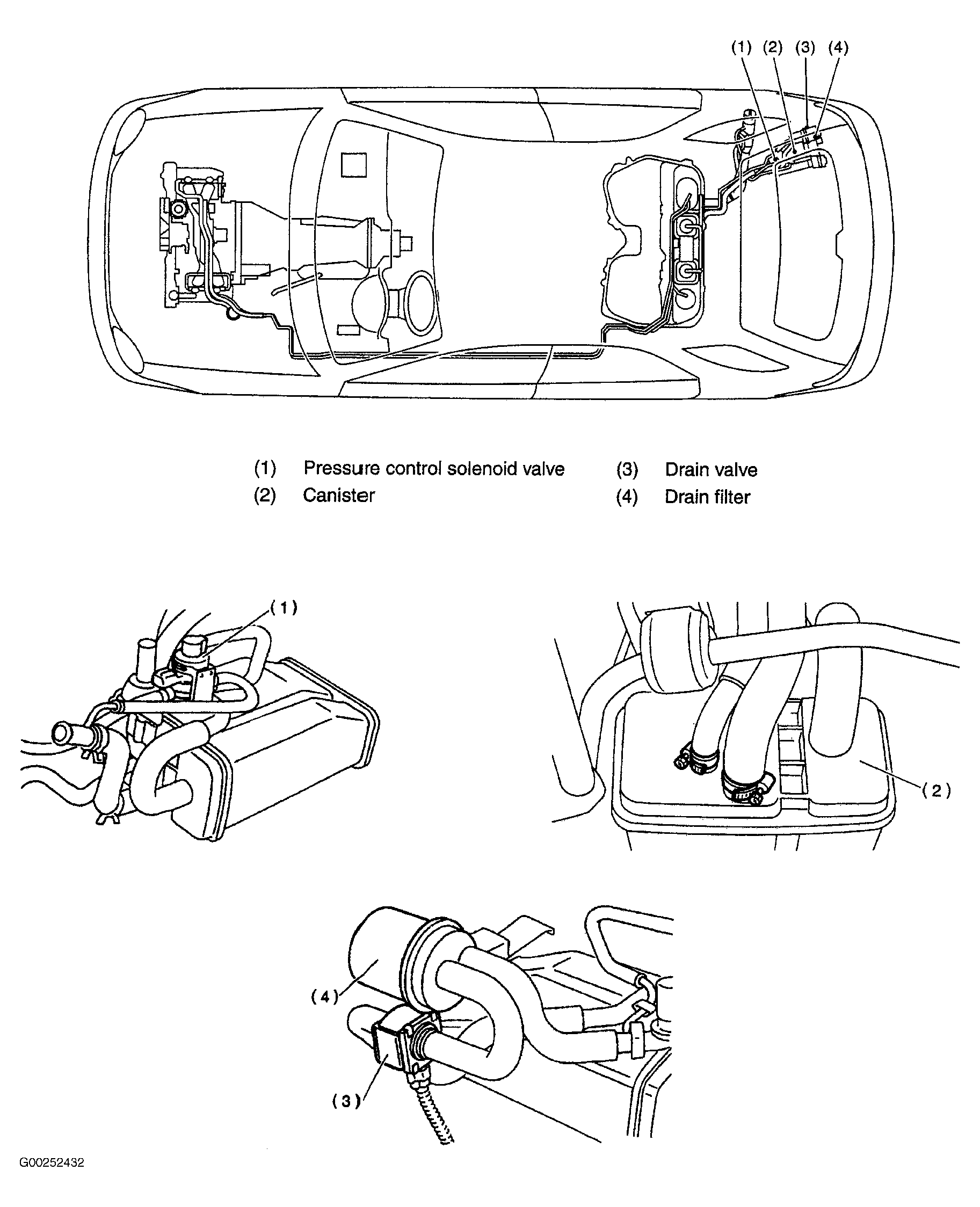

Fig 6: Fuel System Solenoids, Valves & Filters Location

Courtesy of SUBARU OF AMERICA, INC.

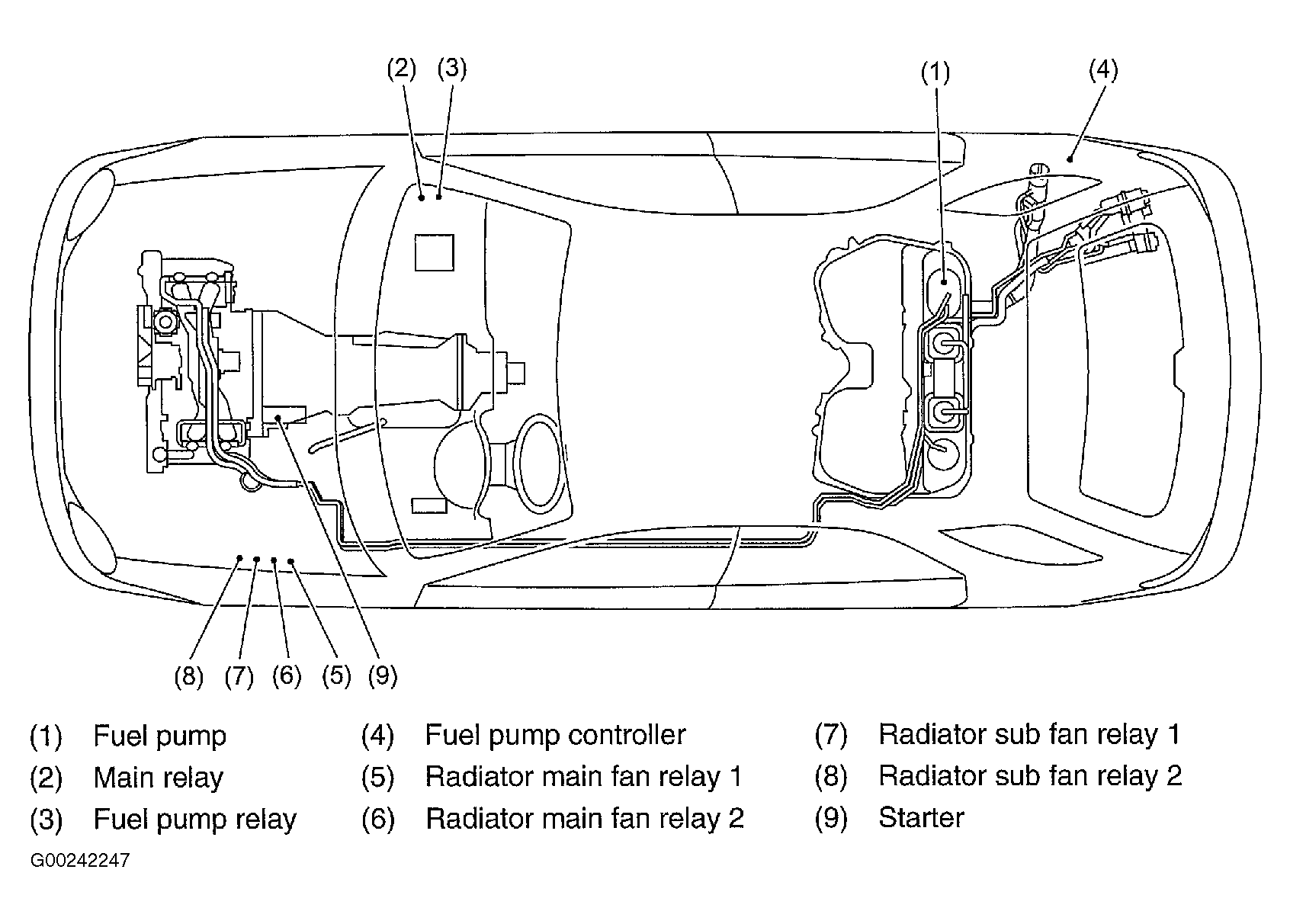

Fig 7: Starter, Relays & Fuel Pump Controller Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Starter, Relays & Fuel Pump Controller Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
