Rear Oxygen Sensor: Installation

Before installing rear oxygen sensor, apply the anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to protector of rear oxygen sensor.

Anti-seize compound: SS-30 by JET LUBE

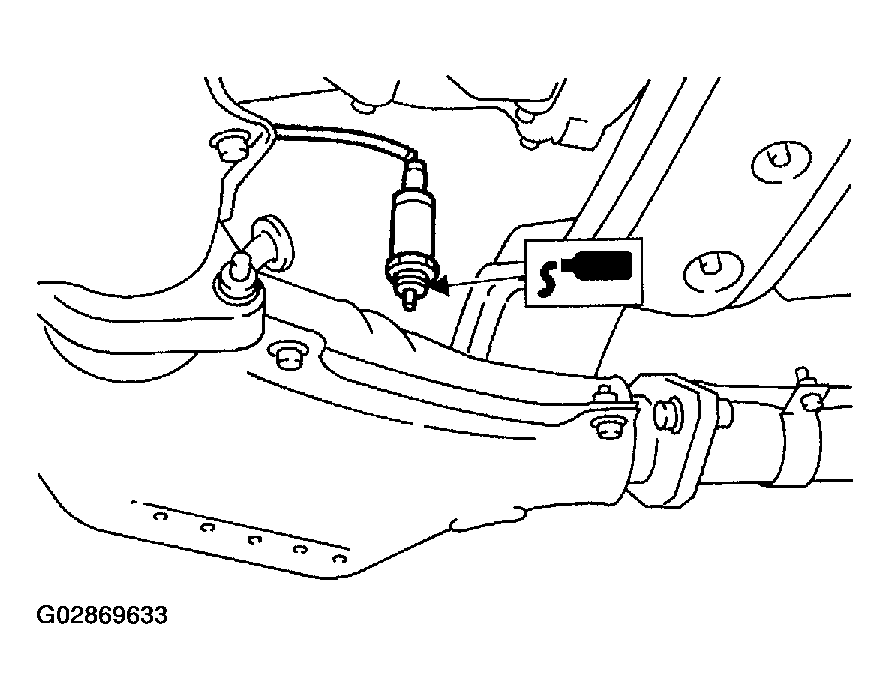

Fig 1: Applying The Anti-Seize Compound To The Threaded Portion Of Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the rear oxygen sensor.
Tightening torque: 21 N.m (2.1 kgf-m, 15.2 ft-lb)

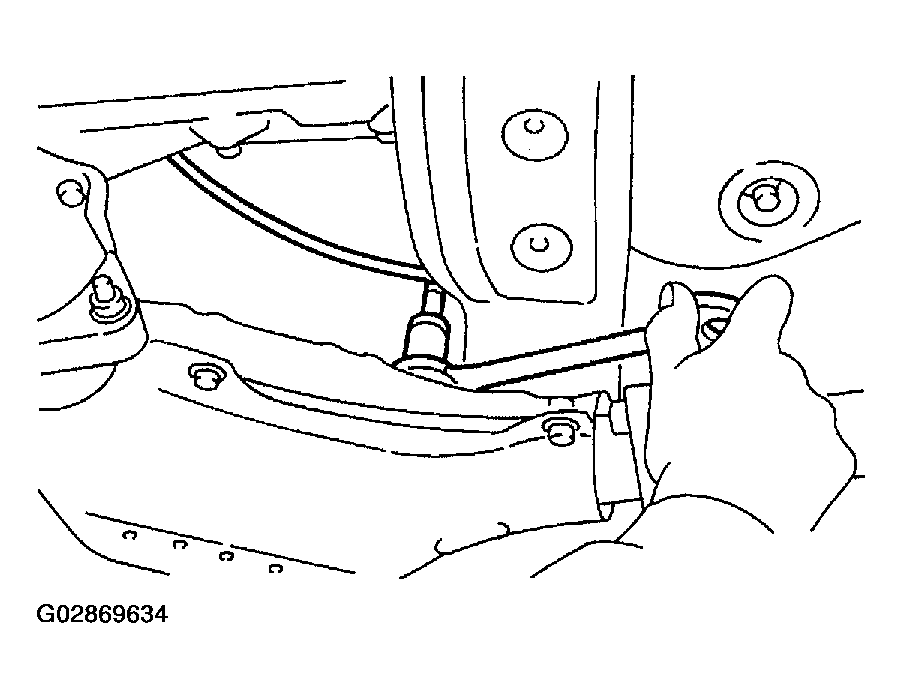

Fig 2: Installing The Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear oxygen sensor.

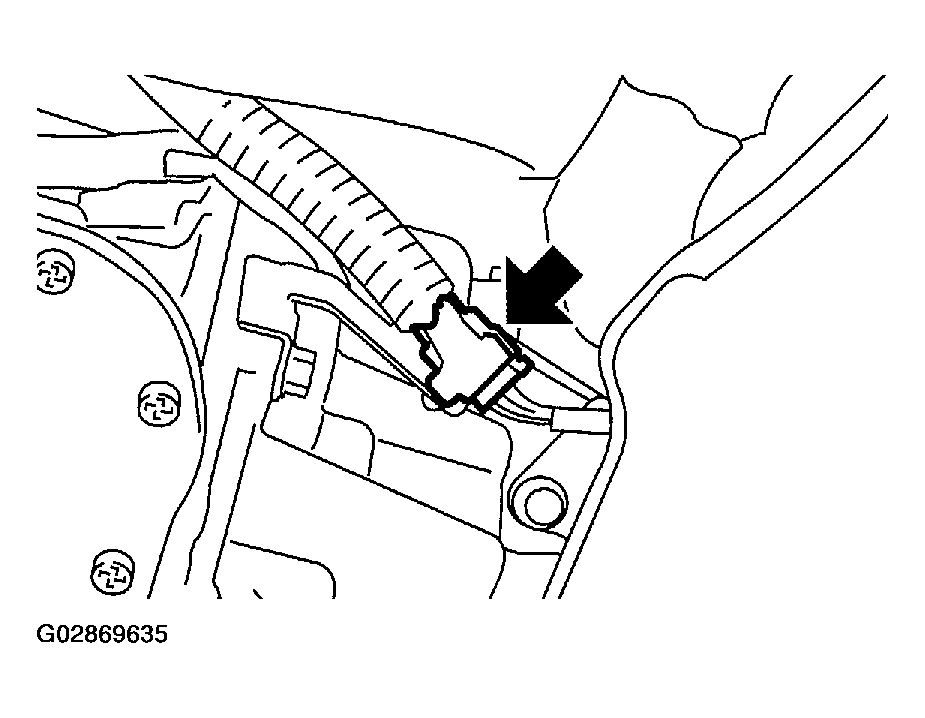

Fig 3: Connecting The Connector To The Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground cable.

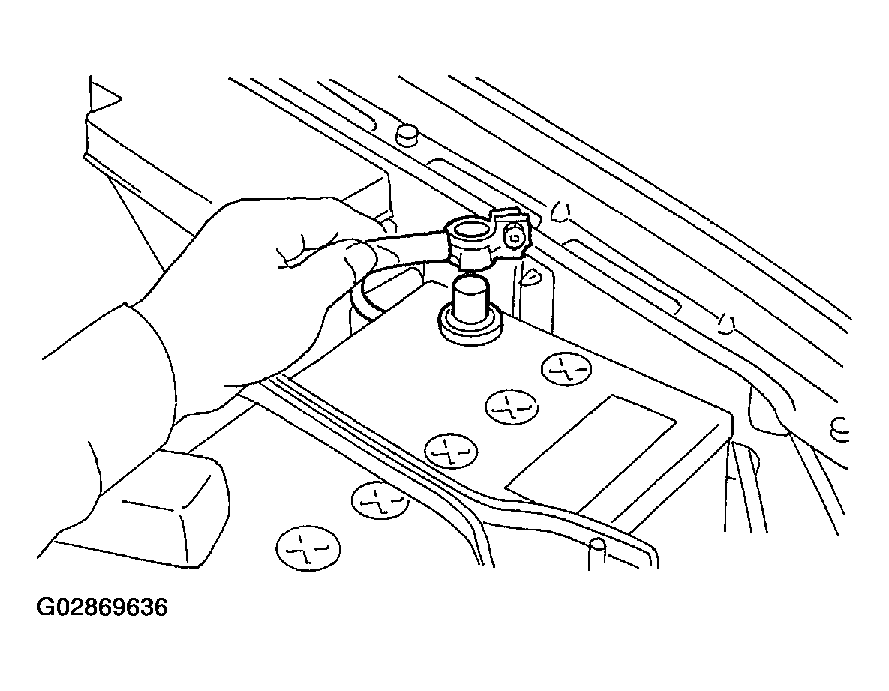

Fig 4: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
