Knock Sensor: Removal

  1. Disconnect the battery ground cable from the battery ground terminal.

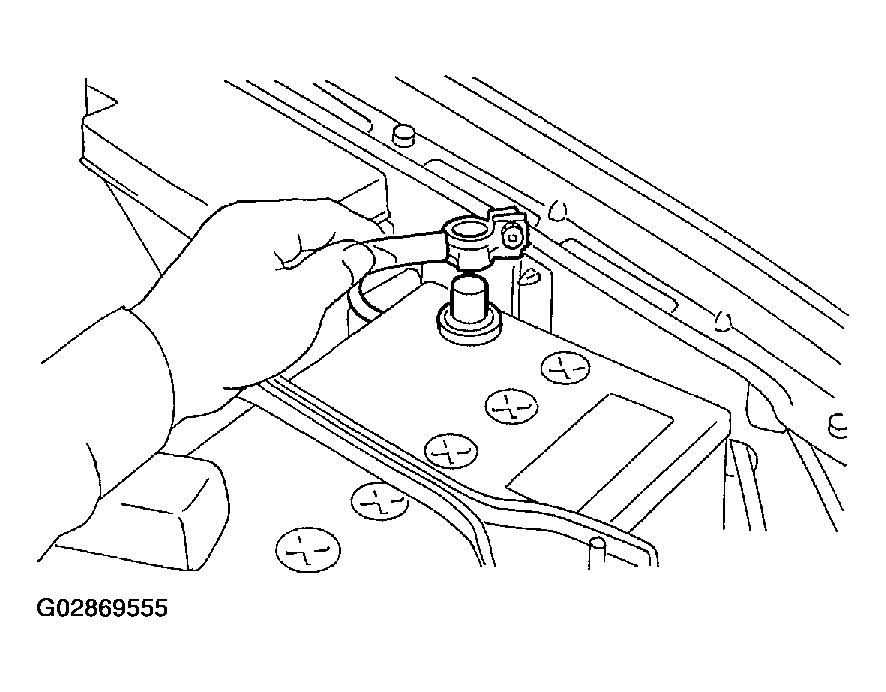

    Fig 1: Disconnecting The Battery Ground Cable
    G02869555Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner case. Refer to AIR CLEANER CASE .
  3. Disconnect the knock sensor connector.

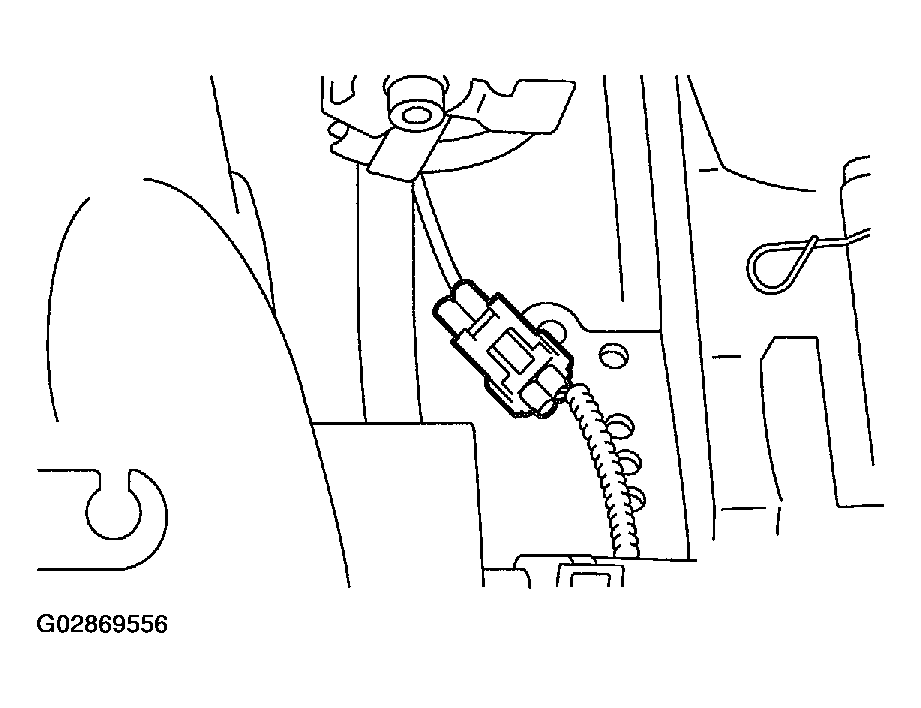

    Fig 2: Disconnecting The Knock Sensor Connector
    G02869556Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the knock sensor from the cylinder block.

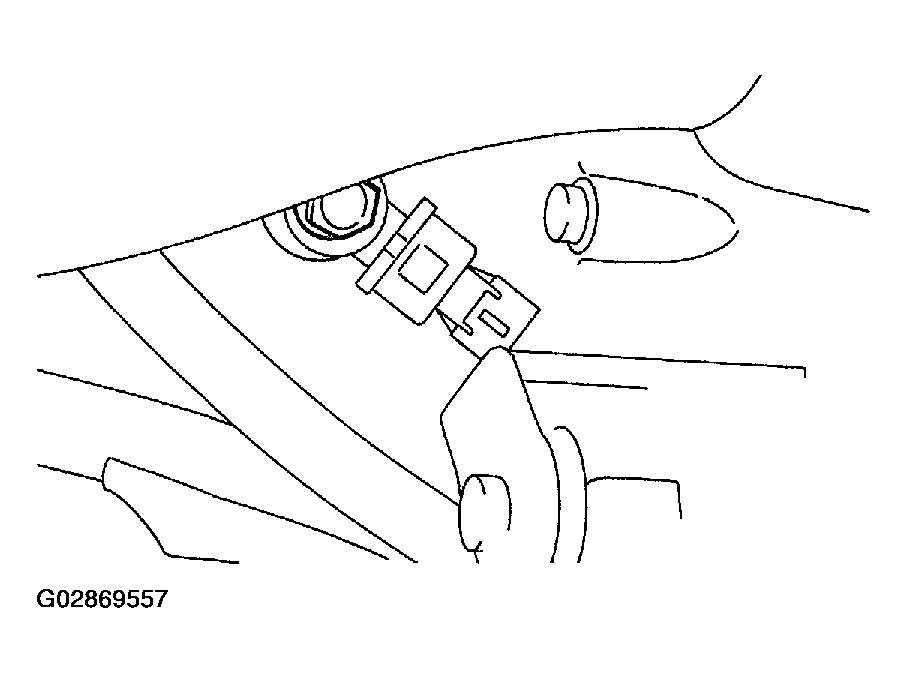

    Fig 3: Removing The Knock Sensor
    G02869557Courtesy of SUBARU OF AMERICA, INC.
