Fuel Pump: Installation

Install in the reverse order of removal. Do the following:

1. Always use new gaskets.
2. Ensure the sealing portion is free from fuel or foreign particles before installation.
3. Tighten the nuts in alphabetical sequence shown in figure to specified torque.

   Tightening torque:  4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

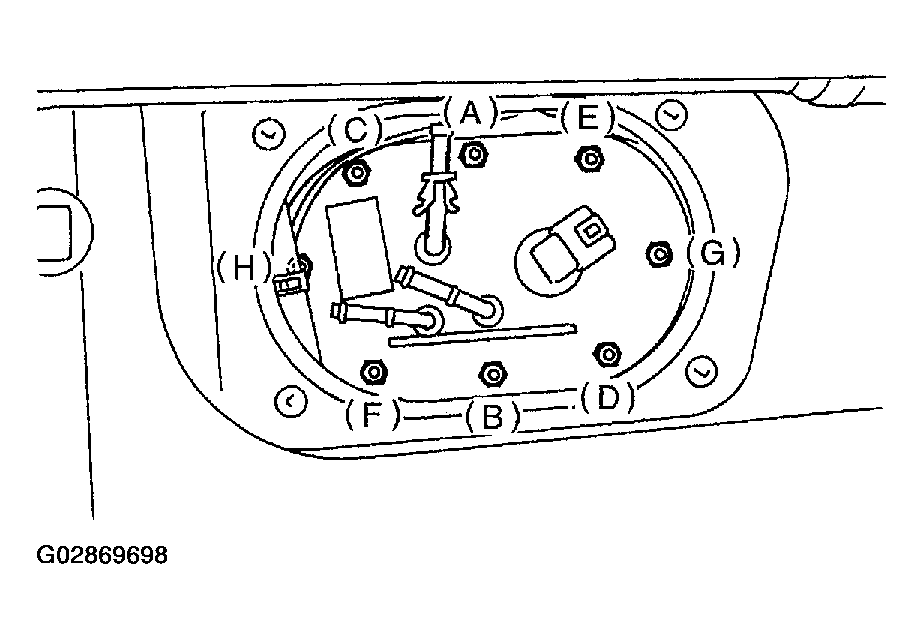

   Fig 1: Tightening The Nuts In Sequence

   Courtesy of SUBARU OF AMERICA, INC.
